Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb
Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb

Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb
Free Gift

$49.99

4 Pin on a Single End - 33 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service ATS4-739 Replacement UVC Light Bulb has a total length of 29.09 inches and has a lifespan of 10,000 hours. With 33 Watt lamp wattage, this UVC light bulb has a peak output of 253.7 nm. When the water is exposed to this short wavelength, it destroys the germs and other pathogens by altering their DNA structure and rendering them incapable of reproducing. Pathogens such as giardia and cryptosporidium along with waterborne microorganisms such as bacteria, molds, viruses and yeasts are effectively removed.

This water treatment light bulb is compatible with the following germicidal UVC models:

  • DWS-12V
  • EV-12E
  • GDS-12
  • SE-12V

UV purifiers and their lamps are highly cost-effective and do not use chemicals to purify water. This makes UV purified water safe for consumption and does not alter the pH or taste of water. Experts recommend that the UV light bulb must be replaced annually for efficiency as the light bulb may continue to emit UV light even after a year but may not be effective in destroying waterborne microorganisms.

Technical Specifications:

  • Total Length: 29.09 inches (739mm)
  • Arc Length: 25.79 inches (655mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 92V
  • Lamp Wattage: 33 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192318 (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

DWS-12V, EV-12E, GDS-12, SE-12V

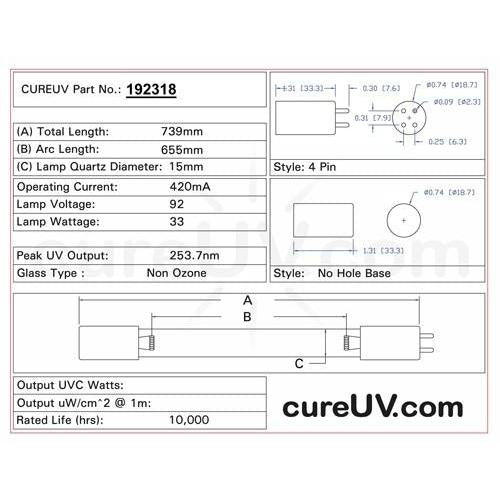

Drawing of Aqua Treatment Service ATS4-739 UVC Bulb - item # 192318

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Aqua Treatment Service Part Number:

  • ATS4-739

Aqua Treatment Service System Model:

  • DWS-12V
  • EV-12E
  • GDS-12
  • SE-12V

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
