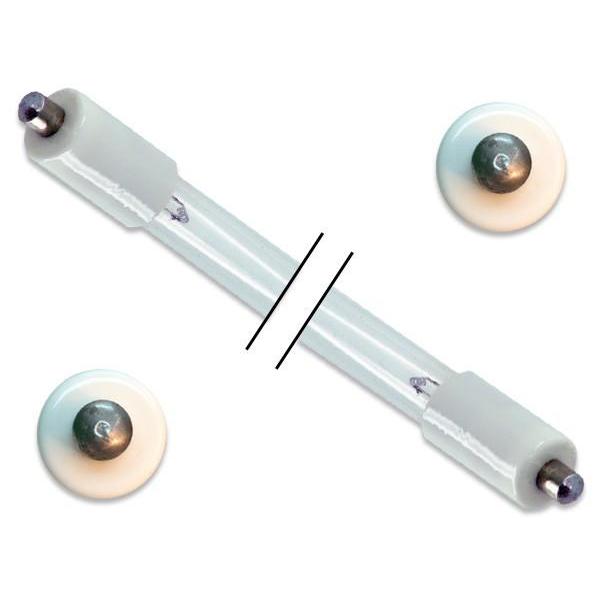

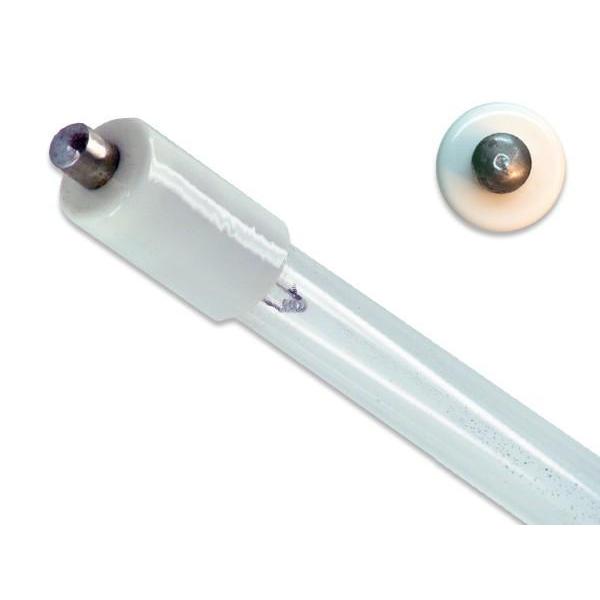

Aqua Treatment Service DWS-130 Replacement UVC Light Bulb
Aqua Treatment Service DWS-130 Replacement UVC Light Bulb Aqua Treatment Service DWS-130 Replacement UVC Light Bulb Aqua Treatment Service DWS-130 Replacement UVC Light Bulb Aqua Treatment Service DWS-130 Replacement UVC Light Bulb

Aqua Treatment Service DWS-130 Replacement UVC Light Bulb
Free Gift

$45.00

Single Pin Double Ended - 75 Watt Germicidal Water Treatment Bulb

Our Aqua Treatment Service DWS-130 Replacement UVC Light Bulb is a single pin double ended water treatment bulb that has the wattage of 75 Watt. This UVC light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers and UV sterilizers. It has the capability to sterilize and kill microorganisms such as bacteria, molds, protozoa and yeast.

This UV-C bulb is compatible with the following germicidal UV-C system models:

  • DWS-130
  • UVC9010
  • UVC-9010
  • UVC 9010

The germ sterilizing property of the light bulb works without a worry for 12 months, after which we recommend that you replace the light bulb even if it continues to emit light. When the high-intensity UV light passes through water, it reacts with the DNA of the microorganisms present in water and renders them harmless.

Technical Specifications:

  • Total Length: 61.22 inches (1555mm)
  • Arc Length: 58.66 inches (1490mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 175V
  • Lamp Wattage: 75 Watts
  • Output UVC Watts: 30 Watts
  • Output uW/cm^2 @ 1m: 260
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194092 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Aqua Treatment Service DWS-130 UVC Bulb - item # 194092

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Aqua Treatment Service brand UVC bulbs. All Aqua Treatment Service brand names, trademarks, and logos are property of Aqua Treatment Service.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
