UVC Germicidal - Atlantic Ultraviolet 05-0631 Replacement UVC Light Bulb

Atlantic Ultraviolet 05-0631 Replacement UVC Light Bulb
Free Gift


UV Bulb Price Match Guarantee

Atlantic Ultraviolet 05-0631 Replacement UVC Light Bulb

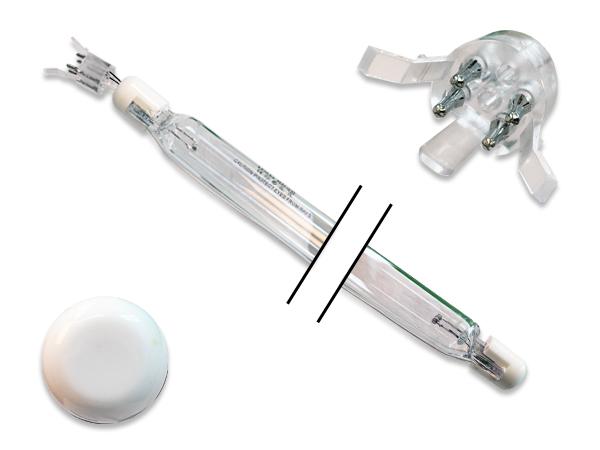

The Atlantic Ultraviolet 05-0631 Replacement UVC Light Bulb is a 100% Equivalent Atlantic Ultraviolet germicidal UV Lamp for Model 05-0631. The light bulb comes in a pigtail base style and has a total length of 34.44" and an arc length of 31.22". The light bulb has a peak UV output of 253.7nm and a rated life of 10,000 hours. It is highly recommended that you replace the light bulb after the stipulated period for better germ-killing ability of the system.

The replacement bulb is completely compatible with germicidal OEM water disinfection filters, UV sanitizers, and ultraviolet water purifiers. The UVC light bulb is set in a non-ozone glass. The short wavelength emitted by the light bulb manages to alter the genetic structure of the microorganisms and renders them harmless. This light bulb is designed to sanitize and kill over 99.99% germs in water such as molds, protozoa, yeast and bacteria.

Technical Specifications:

  • Total Length: 34.44 inches (875mm)
  • Arc Length: 31.22 inches (793mm)
  • Lamp Quartz Diameter: 17.5mm
  • Operating Current: 800mA
  • Lamp Voltage: 110V
  • Lamp Wattage: 84 Watts
  • Output UVC Watts: 28 Watts
  • Output uW/cm^2 @ 1m: 260
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Pigtail
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
