Atlantic Ultraviolet 05-0690 Replacement UVC Lamp
Free Gift


UV Bulb Price Match Guarantee

Atlantic Ultraviolet 05-0690 Replacement UVC Lamp

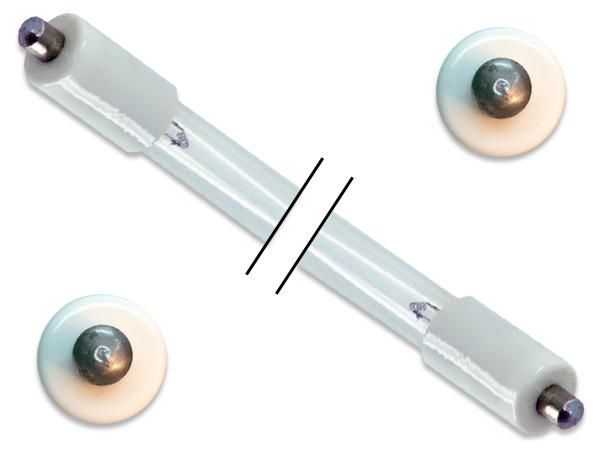

The Atlantic Ultraviolet 05-0690 Replacement UVC Lamp is 100% Compatible with Atlantic Ultraviolet Model 05-0690 germicidal UV light bulb. The lamp bulb is a single pin on both ends with a total length of 61.18".

UV method is a preferred method of water treatment as it employs UV light at a particular wavelength and disrupts the DNA of microorganisms. The replacement light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers, and sanitizers. It has the ability to destroy 99.9% of harmful organisms in water. While this method effectively eliminates the genetics of microorganisms it does not alter the pH, taste, or chemistry of water in the process. This method is a good option against chemicals such as chlorine and their byproducts. The system provides protection against yeast, cyst, virus, and bacteria. The replacement UVC bulb provides 12 months of worry-free operation after which its germ-destroying capabilities reduce. Replace your UV system annually with Atlantic Ultraviolet 05-0690 Replacement UVC Lamp.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Technical Specifications:

  • Total Length: 61.18 inches (1554mm)
  • Arc Length: 56.69 inches (1440mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 880mA
  • Lamp Voltage: 200V
  • Lamp Wattage: 155 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non-Ozone
  • Base Style: Single Pin on both ends
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

    Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
