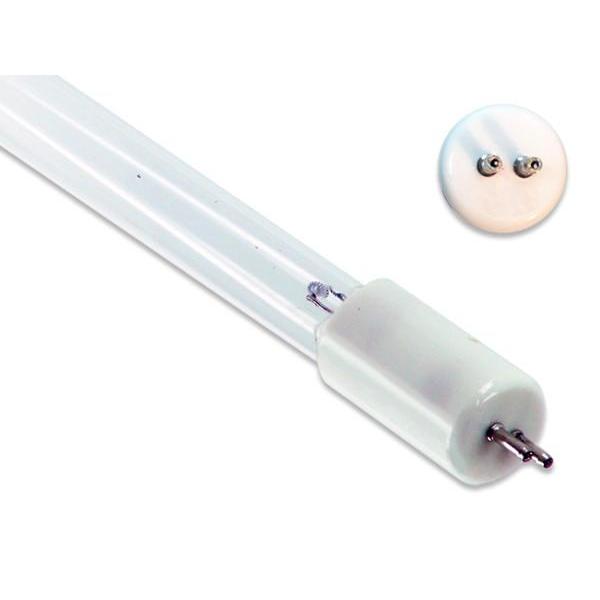

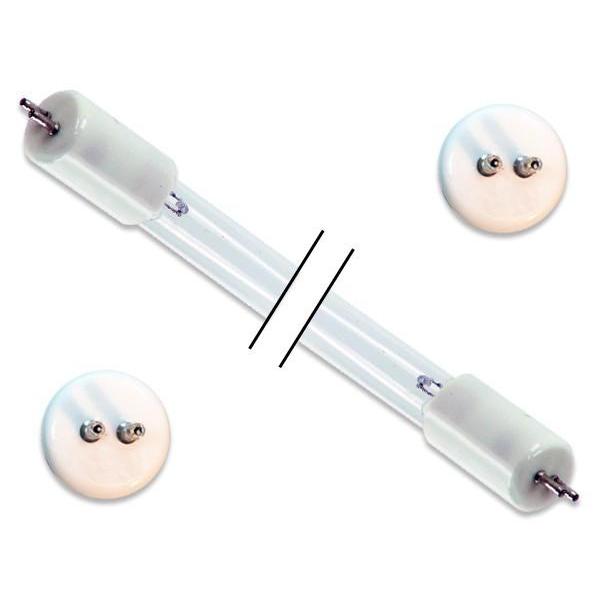

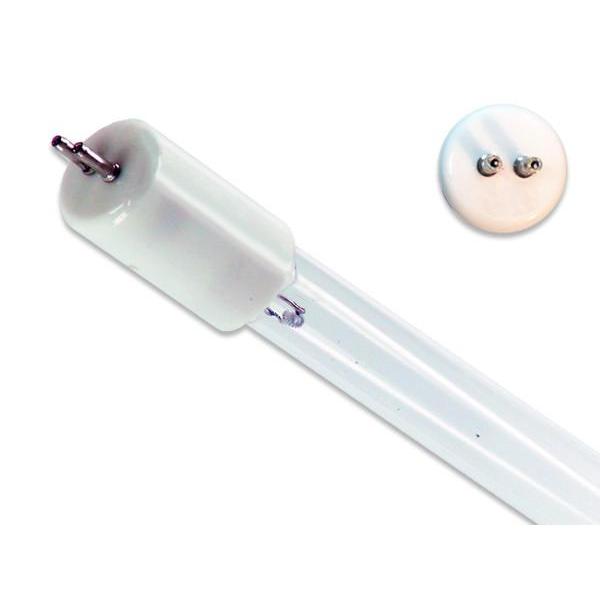

Atlantic Ultraviolet Authentic Replacement 05-1116-R UVC Light Bulb
Atlantic Ultraviolet Authentic Replacement 05-1116-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1116-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1116-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1116-R UVC Light Bulb

Atlantic Ultraviolet Authentic Replacement 05-1116-R UVC Light Bulb
Free Gift

$59.99

Miniature 2 Pin Double Ended - 48 Watt Germicidal Water Treatment Bulb

The Atlantic Ultraviolet 05-1116-R UVC Light Bulb is a miniature two pin double ended light bulb that has a total length of 31.22" and an arc length of 27.76". The UVC lamp bulb is rated to have a life of 10,000 hours and has a peak output of 253.7nm. This short wavelength works to alter the genetics of the microorganisms to render them harmless. The UVC bulb is made and designed for the following system models and parts:

  • Mighty-Pure MP36
  • Sanitron S37

Used to sterilize and kill 99.9% germs, the UVC light bulb works against molds, protozoa, bacteria, yeast and virus. The UVC light bulb from CureUV ensures 12 months of worry free operation and germ sterilizing property. The quality of the water we use affects our health. This germicidal sterilizer is designed to destroy, bacteria, virus, protozoa, cyst and other microorganisms that may harm our health. CureUV.com’s UVC light bulb is an effective way to sanitize water without altering the water’s pH, taste or chemistry. This is because using UVC light to disinfect water is a purely physical process and is far better option to chemicals and their bi-products.

Select between the authentic Atlantic Ultraviolet lamp or the generic equivalency at the dropdown menu next to the price.

Technical Specifications:

  • Total Length: 31.22 inches (793mm)
  • Arc Length: 27.76 inches (705mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 113V
  • Lamp Wattage: 48 Watts
  • Output UVC Watts: 13.5 Watts
  • Output uW/cm^2 @ 1m: 125
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Miniature Bi-Pin (2 pin) double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192290 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

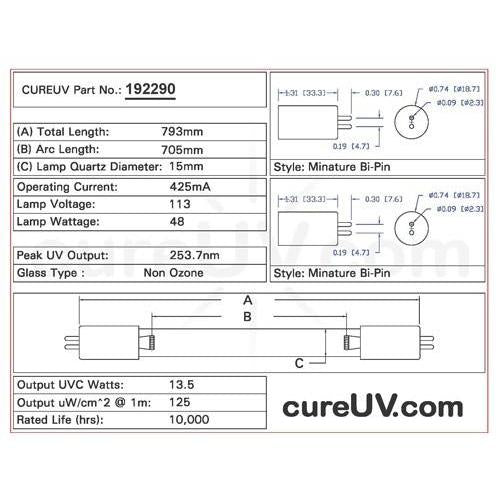

Drawing of Atlantic Ultraviolet 05-1116-R UVC Bulb - item # 192290

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
