Generic 100% Compatible Replacement for Atlantic Ultraviolet 05-1119-R UVC Light Bulb
Generic 100% Compatible Replacement for Atlantic Ultraviolet 05-1119-R UVC Light Bulb Atlantic Ultraviolet 05-1119-R Replacement UVC Light Bulb Generic 100% Compatible Replacement for Atlantic Ultraviolet 05-1119-R UVC Light Bulb Generic 100% Compatible Replacement for Atlantic Ultraviolet 05-1119-R UVC Light Bulb Generic 100% Compatible Replacement for Atlantic Ultraviolet 05-1119-R UVC Light Bulb

Generic 100% Compatible Replacement for Atlantic Ultraviolet 05-1119-R UVC Light Bulb
Free Gift

$33.50

4 Pin on a Single End - 10 Watt Germicidal Water Treatment Bulb

Our Atlantic Ultraviolet 05-1119-R Replacement UVC Light Bulb is a four pin on a single end 10 Watt germicidal water treatment bulb that works for the following system models:

  • Minipure MIN-1

The UVC lamp bulb works to kill bacteria, molds, virus, yeast and protozoa in the water. The bulb is capable of emitting a UV output of 253.7 nm that alters the genetics of the microorganisms and makes them harmless. The replacement light bulb provides a twelve months worry-free operation after which we recommend that you replace the light bulb even if it continues to emit light. There are studies which show that the UV water purification system can effectively destroy 99.9% microorganisms in water. The UVC light bulb is a much better option to chemicals and their byproducts usually associated with chlorination of water. Many people also believe that this system provides a safe solution against microorganisms such as cryptosporidium and giardia that are resistant to chlorine. What more, UV system is an environmentally friendly alternative to chlorine disinfection.

Technical Specifications:

  • Total Length: 8.35 inches (212mm)
  • Arc Length: 5.51 inches (140mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 30V
  • Lamp Wattage: 10 Watts
  • Output UVC Watts: 2.7 Watts
  • Output uW/cm^2 @ 1m: 26
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194369 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

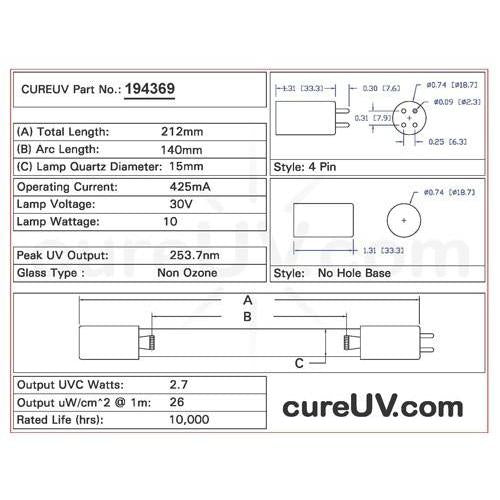

Drawing of Atlantic Ultraviolet 05-1119-R UVC Bulb - item # 194369

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Atlantic Ultraviolet brand UVC bulbs. All Atlantic Ultraviolet brand names, trademarks, and logos are property of Atlantic Ultraviolet.

  • *Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

  • Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
