Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1338A-R UVC Light Bulb
Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1338A-R UVC Light Bulb Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1338A-R UVC Light Bulb Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1338A-R UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1338A-R UVC Light Bulb

Atlantic Ultraviolet Authentic Replacement 05-1338A-R UVC Light Bulb
Free Gift

SKU: 191532-AU

UV Bulb Price Match Guarantee
$99.99

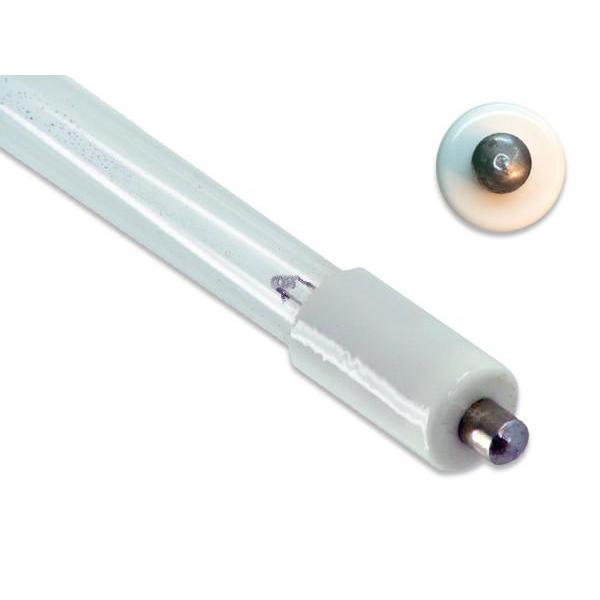

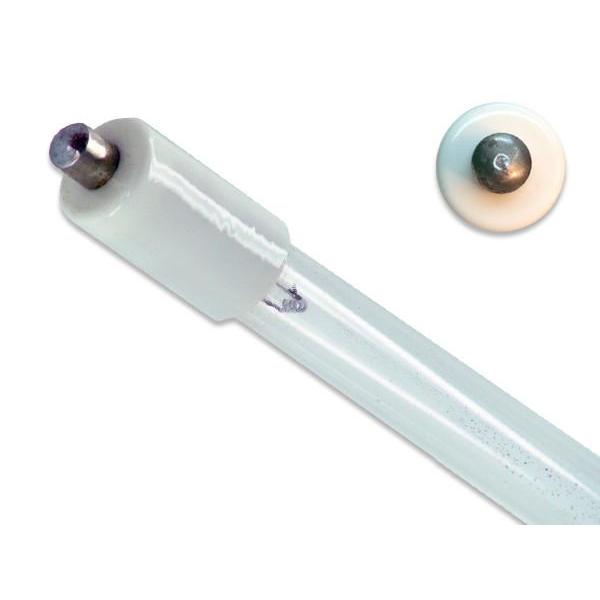

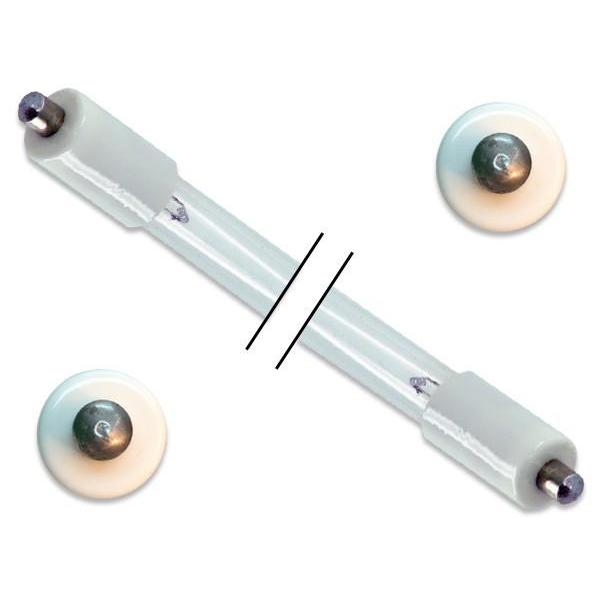

Single Pin Double Ended - 75 Watt Germicidal Air & Surface Treatment Bulb

Technical Specifications:

  • Total Length: 61.22 inches (1555mm)
  • Arc Length: 58.66 inches (1490mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 175V
  • Lamp Wattage: 75 Watts
  • Output UVC Watts: 30 Watts
  • Output uW/cm^2 @ 1m: 260
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

System Applications:

  • SaniLight D64-1S
  • SaniLight D64-2S
  • SaniRay RRD64-1S
  • SaniRay RRD64-2S
  • SaniRay RRD64-4S

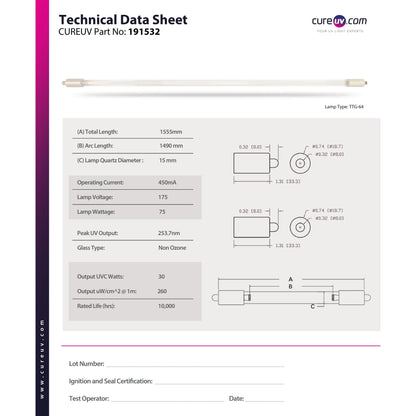

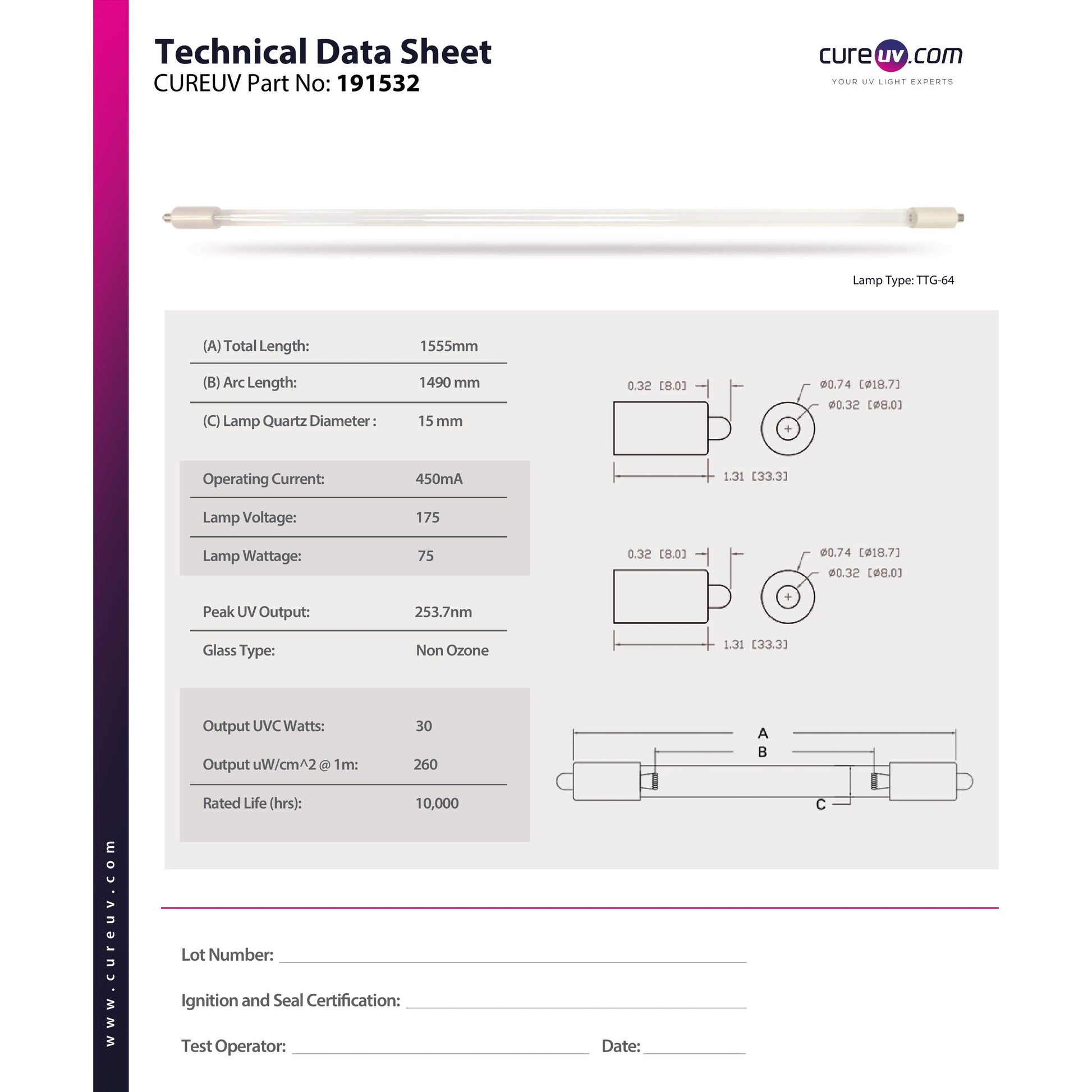

Technical Data Sheet:

Atlantic Ultraviolet 05-1338A-R UV Light Bulb is the original genuine equipment. We also offer a generic equivalent. You can pick which specific bulb you prefer using the dropdown next to the price at the top of the page.

UVC light technology is used to sterilize, kill, and is a 99.9% proven effective treatment against:
  • Bacteria
  • Molds
  • Protozoa
  • Viruses
  • Yeasts

12 month worry free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb but its germ killing ability quickly diminishes. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.

Spectral Output of Germicidal UVC Light Bulbs (PDF)

This authentic replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for the applications that require UV-C intensity.

Common Applications for use:
  • Air Conditioners
  • Air Purifiers
  • Beverage Services and Processing
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Surface Disinfection
Common Locations for use:
  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
