Atlantic Ultraviolet Authentic Replacement 05-1343-R  UVC Light Bulb
Atlantic Ultraviolet Authentic Replacement 05-1343-R  UVC Light Bulb Atlantic Ultraviolet 05-1343-R Replacement UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1343-R  UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1343-R  UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1343-R  UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1343-R  UVC Light Bulb

Atlantic Ultraviolet Authentic Replacement 05-1343-R UVC Light Bulb
Free Gift

$49.99

Single Pin Double Ended - 39 Watt Germicidal Water Treatment Bulb

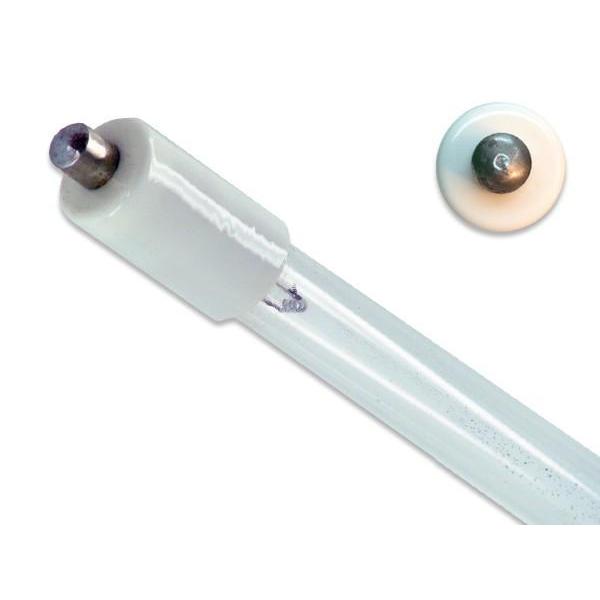

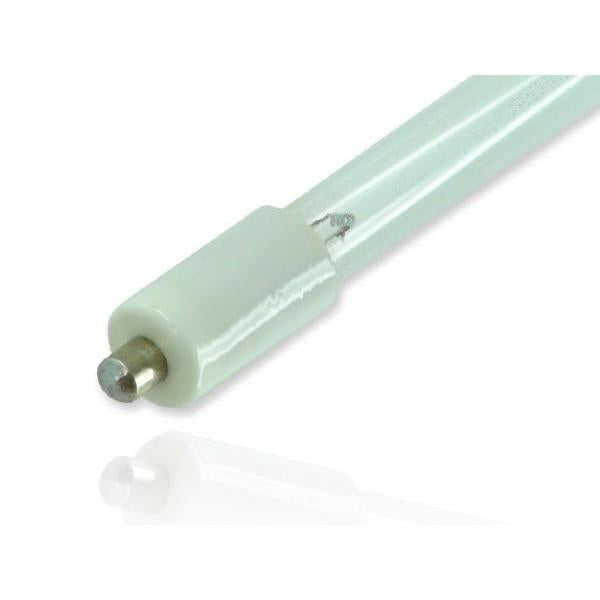

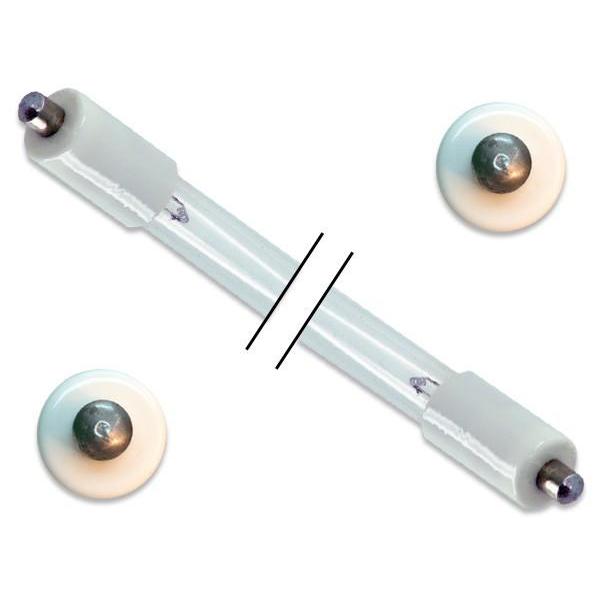

The Atlantic Ultraviolet 05-1343-R Replacement UVC Light Bulb has a total length of 33.19" and an arc length of 30.12". The single pin double ended 39 Watt light bulb has a rated life of 10,000 hours after which it is recommended to replace the bulb even if it continues to emit light.

The UVC bulb emits short wavelength of 253.7nm that is capable of rendering the microorganisms in water harmless. The wavelength reacts with the genetics of the microorganism and disrupts it and prevents the organisms from reproducing. This method destroys 99.9% harmful organisms in the water and does not alter the pH, taste or chemistry of water in the process. This method is a better alternative to adding chemicals and their byproducts in water. This system provides protection against water contaminants such as yeast, cyst, bacteria, virus and protozoa. This environmentally and user friendly method is an immediate treatment process.

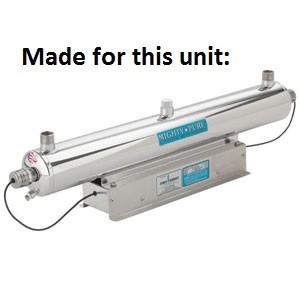

This UV light bulb works for the following models and their part numbers

Mighty-Pure

  • MP36A
  • MP36B
  • MP36C

Sanitron

  • S37A
  • S37B
  • S37C

Crystal Clear

  • CMP36
  • CUV15
  • CUV15E
  • CUV24E

Technical Specifications:

  • Total Length: 33.19 inches (843mm)
  • Arc Length: 30.12 inches (765mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 115V
  • Lamp Wattage: 39 Watts
  • Output UVC Watts: 13 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications:

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194207 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

Drawing of Atlantic Ultraviolet 05-1343-R UVC Bulb - item # 194207

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
