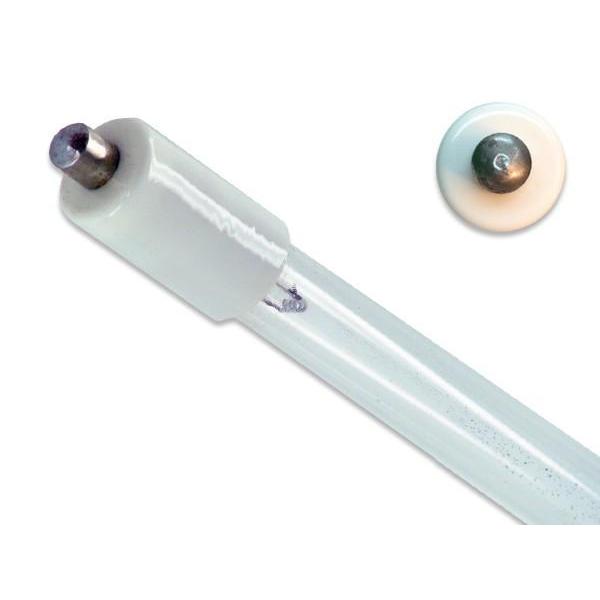

Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1348-R UVC Light Bulb
Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1348-R UVC Light Bulb Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1348-R UVC Light Bulb Germicidal UV Bulbs - Atlantic Ultraviolet Authentic Replacement 05-1348-R UVC Light Bulb Atlantic Ultraviolet Replacement 05-1348-R UVC Light Bulb

Atlantic Ultraviolet Replacement 05-1348-R UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$46.99

Single Pin Double Ended - 25 Watt Germicidal Air & Surface Treatment Bulb

Our Atlantic Ultraviolet 05-1348-R Replacement UV Light Bulb is 25 watts and was originally designed for germicidal OEM air & surface disinfection filters, UV sanitizers, and ultraviolet air purifiers.

This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

AeroLogic
  • AD24
  • AD24-2

UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:

  • Bacteria
  • Molds
  • Protozoa
  • Viruses
  • Yeasts

12-month worry-free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb, but it quickly diminishes its germ-killing ability. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.

This replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for applications that require UV-C intensity.

CureUV’s ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

If you would like to buy an authentic replacement, you can find it by clicking here.

Common Applications for use:

  • Air Conditioners
  • Air Purifiers
  • Beverage Services and Processing
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Surface Disinfection

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

Technical Specifications:

  • Total Length: 21.18 inches (538mm)
  • Arc Length: 17.91 inches (455mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Wattage: 25 Watts
  • Output UVC Watts: 8.5 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non-Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Spectral Output of Germicidal UVC Light Bulbs

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194121
Drawing of Atlantic Ultraviolet 05-1348-R UVC Bulb - item # 194121

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

    *All germicidal UVC light bulbs listed are compatible brand UV products. This replacement is not an authentic Atlantic Ultraviolet brand UVC bulb. All Atlantic Ultraviolet brand names, trademarks, and logos are property of Atlantic Ultraviolet.

    This product is a substitute item for old CureUV product item #: 192013

    Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
