Single Pin Double Ended - 32 Watt Germicidal Air & Surface Treatment Bulb

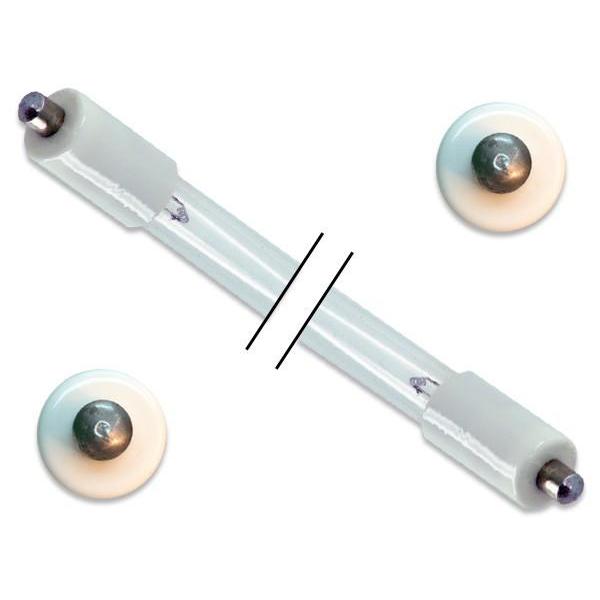

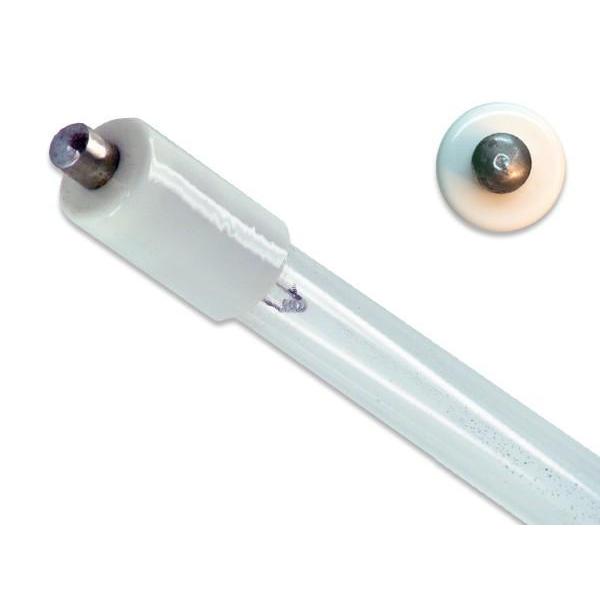

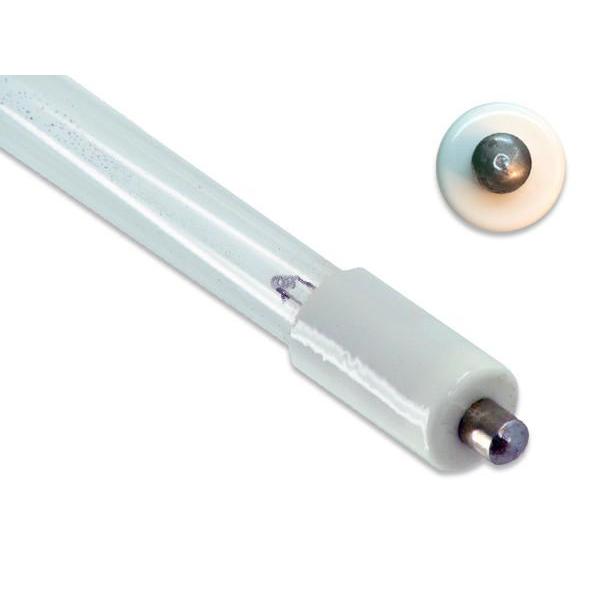

Atlantic Ultraviolet 05-1352-R UV Light Bulb is 32 watts and was originally designed for germicidal OEM air & surface disinfection filters, UV sanitizers, and ultraviolet air purifiers.
This UVC bulb is a compatible replacement for use with germicidal UV-C system models:
AeroLogic
- AD30
- AD30-2
UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:
- Bacteria
- Molds
- Protozoa
- Viruses
- Yeasts
12-month worry-free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb, but it quickly diminishes its germ-killing ability. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.
This replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for applications that require UV-C intensity.
CureUV’s ultraviolet lamps are manufactured using high industry standards and meet or exceed the OEM specifications. We ensure that each lamp from CureUV undergoes 100% quality control inspection.
If you would like to buy an authentic replacement, you can find it by clicking here.
Common Applications for use:- Air Conditioners
- Air Purifiers
- Beverage Services and Processing
- Food Services and Processing
- Heating & Cooling Filters
- HVAC Systems
- Surface Disinfection
- Factories
- Farms
- Homes
- Hospitals
- Hotels
- Laboratories
- Offices
- Ships
Technical Specifications:
- Total Length: 27.17 inches (690mm)
- Arc Length: 23.62 inches (600mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 425mA
- Lamp Wattage: 32 Watts
- Output UVC Watts: 11 Watts
- Output uW/cm^2 @ 1m: 95
- Peak UV Output: 253.7nm
- Glass Type: Non-Ozone
- Base Style: Single pin double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Spectral Output of Germicidal UVC Light Bulbs

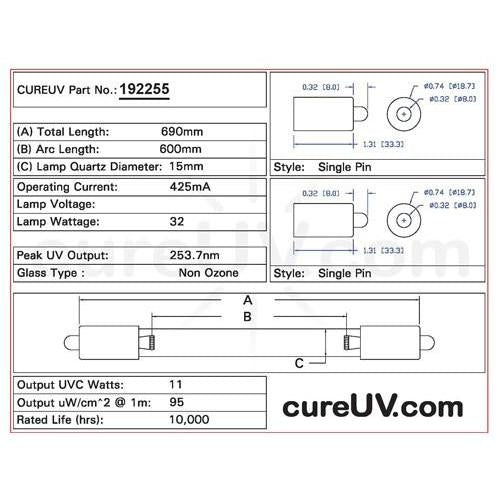

Drawing of Replacement UVC Bulb Item # 192255
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. This replacement is not an authentic Atlantic Ultraviolet brand UVC bulb. All Atlantic Ultraviolet brand names, trademarks, and logos are property of Atlantic Ultraviolet.
-
Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
