Atlantic Ultraviolet Authentic Replacement 05-1366-R  UVC Light Bulb
Atlantic Ultraviolet Authentic Replacement 05-1366-R  UVC Light Bulb Atlantic Ultraviolet 05-1366-R Replacement UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1366-R  UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1366-R  UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1366-R  UVC Light Bulb Atlantic Ultraviolet Authentic Replacement 05-1366-R  UVC Light Bulb

Atlantic Ultraviolet Authentic Replacement 05-1366-R UVC Light Bulb
Free Gift

$59.99

4 Pin on a Single End - 14 Watt Germicidal Air, Surface & Water Treatment Bulb

The Atlantic Ultraviolet 05-1366-R Replacement UVC Light Bulb is germicidal air, water and surface treatment bulb that is a 14 Watt bulb and has 4 pin on a single end. With a total length of 11.3" and an arc length of 8.86", this light bulb can work for up to 10,000 hours.

This light bulb is an authentic Atlantic Ultraviolet bulb but we also offer a generic 100% compatible replacement for the following part numbers and system models (simply pick your choice at the dropdown menu by the add to cart button).

AeroLogic

  • AERO-12

BioLogic

  • BIO-1.5

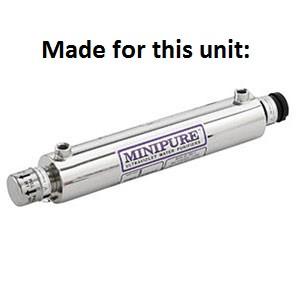

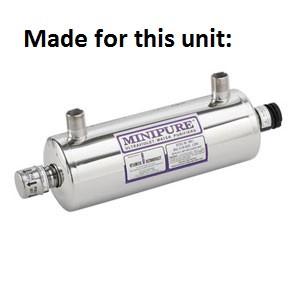

Minipure

  • MIN-1.5
  • MIN-3

This water treatment method does not involve chemical handling and is a purely physical process. There is no change in taste, odor and pH of the water in this method of water treatment. It is established that UV light at the wavelength of 253.7nm can kill harmful microorganisms such as E.coli, giardia and cryptosporidium that can cause harm. The light bulb is compatible with germicidal OEM air, and water disinfection filter, UV sterilizer and ultraviolet purifiers. The short wavelengths of the germicidal light bulbs emit ultraviolet rays that enable thorough disinfection. This method alters the genetic composition of the microorganisms and renders them harmless.

Common Applications:

  • Air Conditioners
  • Air Purifiers
  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Surface Disinfection
  • Well Water

Technical Specifications:

  • Total Length: 11.3 inches (287mm)
  • Arc Length: 8.86 inches (225mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 380mA
  • Lamp Voltage: 225V
  • Lamp Wattage: 14 Watts
  • Output UVC Watts: 4 Watts
  • Output uW/cm^2 @ 1m: 40
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192082 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

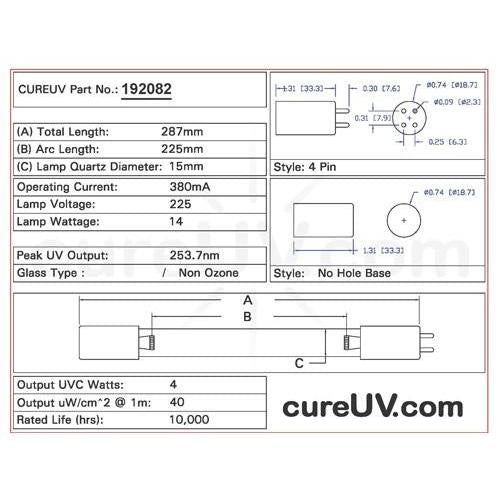

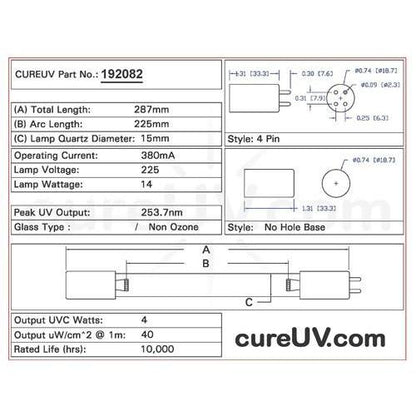

Drawing of Atlantic Ultraviolet 05-1366-R UVC Bulb - item # 192082

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
