BioLite UVLB-1X Replacement UVC Light Bulb
BioLite UVLB-1X Replacement UVC Light Bulb BioLite UVLB-1X Replacement UVC Light Bulb BioLite UVLB-1X Replacement UVC Light Bulb BioLite UVLB-1X Replacement UVC Light Bulb BioLite UVLB-1X Replacement UVC Light Bulb

BioLite UVLB-1X Replacement UVC Light Bulb
Free Gift

Brand: BioLite

SKU: 192051

UV Bulb Price Match Guarantee
$64.99

4 Pin on a Single End - 39 Watt Germicidal Water Treatment Bulb

The Biolite UVLB-1X Replacement UVC Light Bulb is a four pin on a single end water treatment bulb that has lamp wattage of 39 Watt. With a total length of 31.89" and an arc length of 28.74", the UVC light bulb from CureUV undergoes strict quality control measures. With a non-ozone glass type, the light bulb has a 10,000 hours of life after which we recommend that you change the bulb even if it continues to emit light.

The replacement bulb is compatible with the following models and part numbers:

BioLite Part Number:

  • UVLB-1X

BioLite System Model:

  • BIO12

When water is exposed to UV light emitted from the bulb, it destroys germs that could possibly cause diseases such as gastroenteritis, flu, typhoid, hepatitis and cholera. Since UV filters do not introduce chemicals in the water and is a purely physical state, it is a far better option to chlorination and its by-products. Stay healthy and safe with Biolite UVLB-1X Replacement UVC Light Bulb.

Technical Specifications:

  • Total Length: 31.89 inches (810mm)
  • Arc Length: 28.74 inches (730mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Wattage: 39 Watts
  • Output UVC Watts: 13.8 Watts
  • Output uW/cm^2 @ 1m: 130
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 192051 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

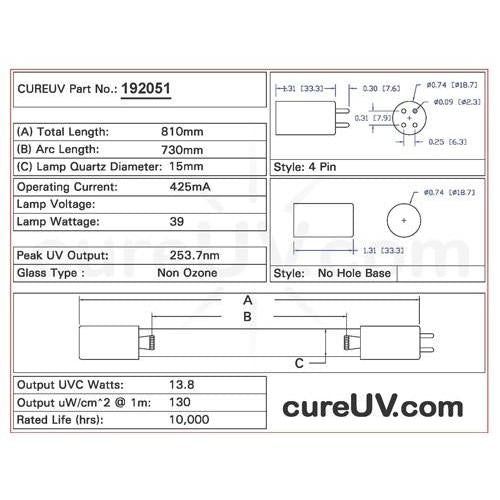

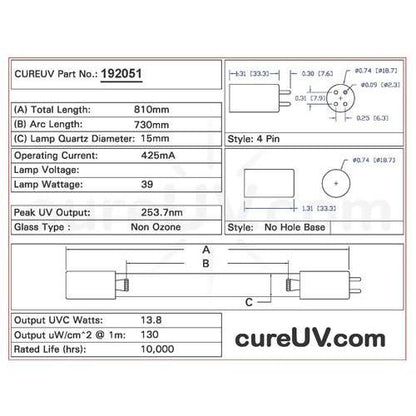

Drawing of BioLite UVLB-1X UVC Bulb - item # 192051

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org



*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell BioLite brand UVC bulbs. All BioLite brand names, trademarks, and logos are property of BioLite.





*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.







Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
