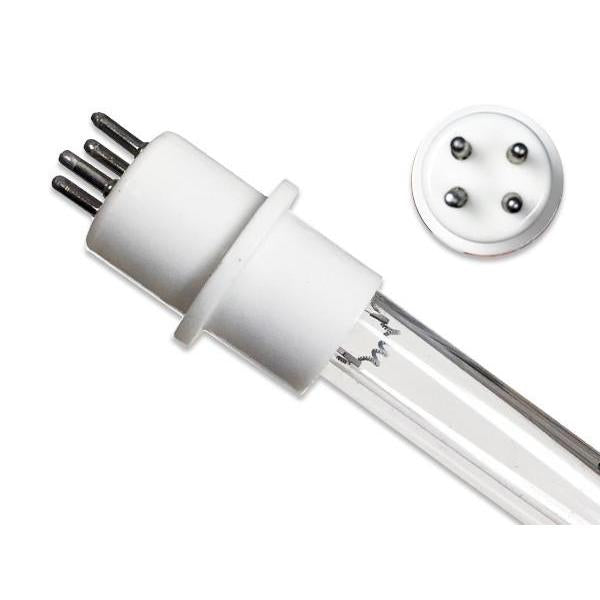

Carrier UVLXXRPL1020 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$32.00

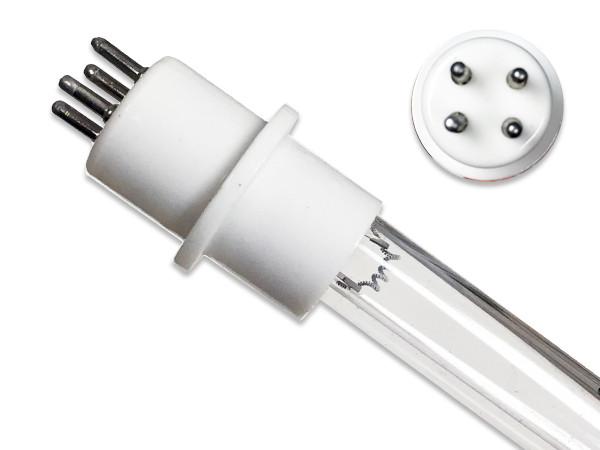

4 Pin Cell Base on a Single End - 27 Watt Germicidal Air & Surface Treatment Bulb

  • Carrier Replacement UV lamp fit UVBB1LP1020, UVLCC1LP1020, UVBB1L1020A, UVCC1LP1020A Evolution & Infinity UV Systems from Bryant and Carrier

    This UVC bulb is the 100% compatible replacement for use with germicidal UV-C system models:

    • Dual Lamp UVLCC2LP1020 / requires 2 bulbs UVLBB2LP1020

  • UVC light technology is used to sanitize, kill, and is a 99.9% proven effective treatment against:

    • Bacteria
    • Molds
    • Protozoa
    • Viruses
    • Yeasts

    12 month worry free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb but its germ killing ability quickly diminishes. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.)


    Spectral Output of Germicidal UVC Light Bulbs (PDF)

    This replacement germicidal bulb is used for ultraviolet air and surface purification and is well-suited for the applications that require UV-C intensity.

    Common Applications for use:
    • Air Conditioners
    • Air Purifiers
    • Beverage Services and Processing
    • Food Services and Processing
    • Heating & Cooling Filters
    • HVAC Systems
    • Surface Disinfection
    Common Locations for use:
    • Factories
    • Farms
    • Homes
    • Hospitals
    • Hotels
    • Laboratories
    • Offices
    • Ships

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org



    *All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Carrier brand UVC bulbs. All Carrier brand names, trademarks, and logos are property of Carrier

    Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

    • Total Length: 20 inches (508mm)
    • Arc Length: 16.73 inches (425mm)
    • Lamp Quartz Diameter: 15mm
    • Operating Current: 420mA
    • Lamp Voltage: 67V
    • Lamp Wattage: 27 Watts
    • Output UVC Watts: 9 Watts
    • Output uW/cm^2 @ 1m: 80
    • Peak UV Output: 253.7nm
    • Glass Type: Non Ozone
    • Base Style: 4 pin cell base on a single end
    • Base Material: Ceramic
    • Rated Life: Up to 10,000 hours
    Spectral Output of Germicidal UVC Light Bulbs

    This UVC bulb is a compatible replacement for use with germicidal UV-C system models:

    • Filters 4 life: UVLXXRPL
    • Grainger: 116C03
    • IAQ Source: 172045
    • Ultravation: LP-PP-0046SA
