Clean Water Systems G10T5L Replacement UVC Light Bulb
Clean Water Systems G10T5L Replacement UVC Light Bulb Clean Water Systems G10T5L Replacement UVC Light Bulb Clean Water Systems G10T5L Replacement UVC Light Bulb Clean Water Systems G10T5L Replacement UVC Light Bulb Clean Water Systems G10T5L Replacement UVC Light Bulb

Clean Water Systems G10T5L Replacement UVC Light Bulb
Free Gift

$30.00

Single Pin Double Ended - 16 Watt Germicidal Water Treatment Bulb

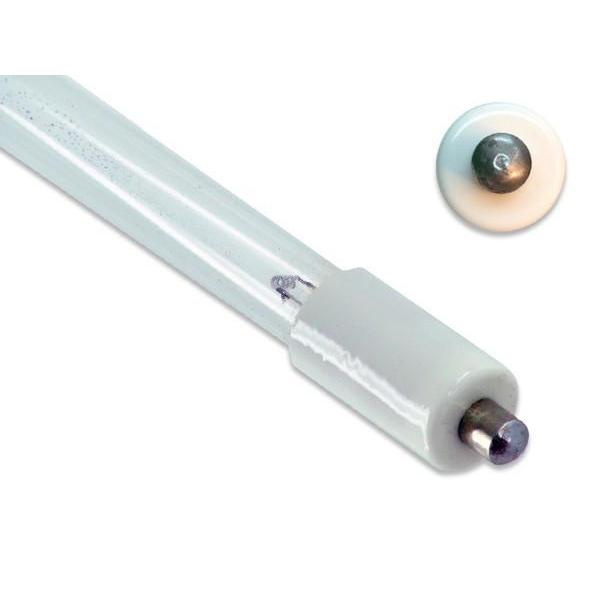

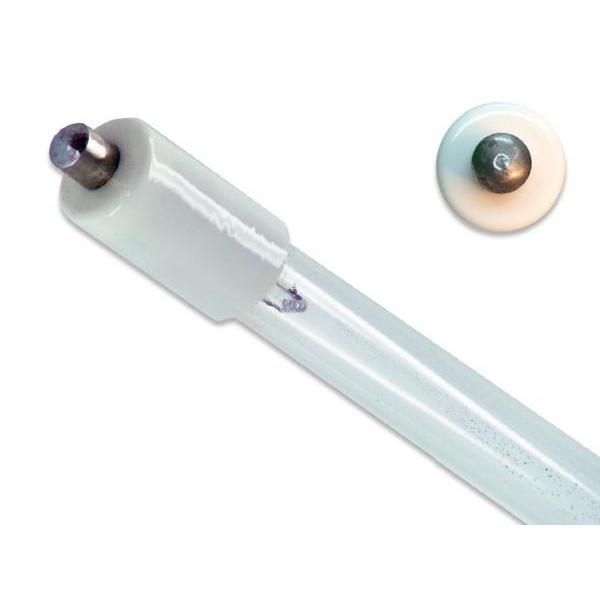

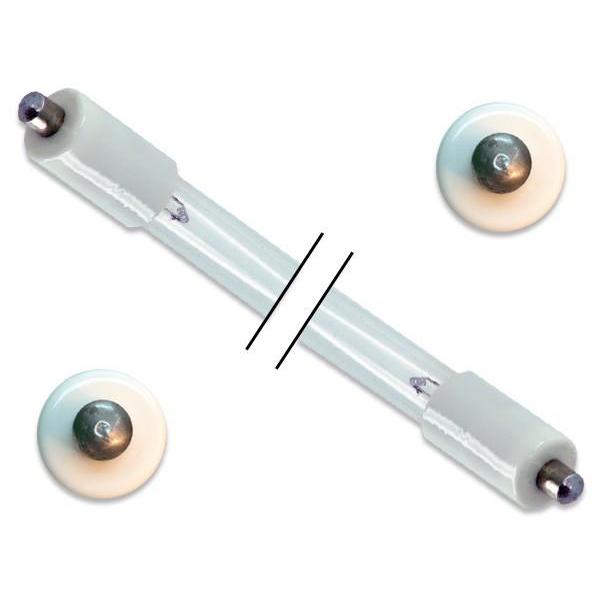

The Clean Water Systems G10T5L Replacement UVC Light Bulb is a single pin double ended light bulb that has a total length of 14.06". The 16 Watt germicidal water treatment bulb has an arc length of 11.02" and a non ozone glass type. The light bulb has a peak output of 253.7nm. and this wavelength helps in destroying the genetics of the microorganisms and renders them harmless. The UV light bulb is compatible with the following models and their part numbers:

Clean Water Systems Part Number:

  • G10T5L
  • Crystal Clear CUV7

Clean Water Systems System Model:

  • C4
  • C4A
  • C4B
  • C4BA
  • CR3

The UVC light technology can easily kill or sterilize 99.99% of waterborne microorganisms that can cause harm. With a 12 months worry-free operation, this UV-C bulb can destroy protozoa, yeast, bacteria and molds. It is suggested that you annually replace the light bulb for better efficiency and germ-controlling ability.

Technical Specifications:

  • Total Length: 14.06 inches (357mm)
  • Arc Length: 11.02 inches (280mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 50V
  • Lamp Wattage: 16 Watts
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 9,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194668 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

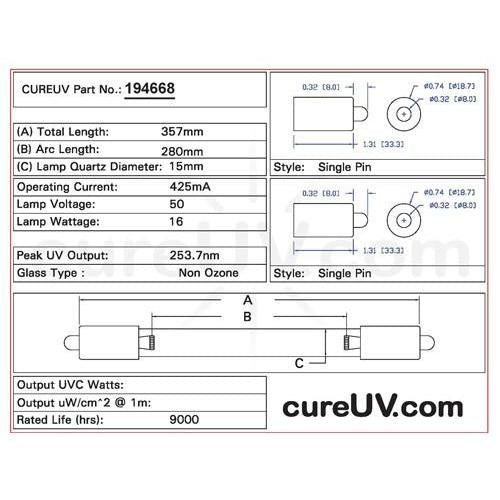

Drawing of Clean Water Systems G10T5L UVC Bulb - item # 194668

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Clean Water Systems brand UVC bulbs. All Clean Water Systems brand names, trademarks, and logos are property of Clean Water Systems.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
