Close Ended Quartz Sleeve for Water Treatment & Accessories WTA-Q10 Replacement UVC Light Bulb
Close Ended Quartz Sleeve for Water Treatment & Accessories WTA-Q10 Replacement UVC Light Bulb
SKU:514307
Couldn't load pickup availability
Replacement components for compatible WTA-Q10 water treatment systems. Select the correct option below based on your existing system, component type, dimensions, and end configuration.
Select Your Replacement
| Option | Product | Configuration | Key Specifications | Best For |
|---|---|---|---|---|
| WTA-Q10 Closed-End Quartz Sleeve | Quartz Sleeve | Closed on one end | 22 mm × 24.5 mm × 759 mm | Systems requiring a closed-end quartz sleeve |
| WTA-Q10 Open-End Quartz Sleeve | Quartz Sleeve | Open on both ends | Verify existing sleeve dimensions before ordering | Systems requiring an open-ended quartz sleeve |
| Neptune WTA-10 Replacement UVC Light Bulb | UVC Lamp | 4 pin on a single end | 30 Watts, 25.59" total length, 15 mm quartz diameter, 185 nm peak UV output | Neptune WTA-10 / Model 05-0343-1 |
Important Compatibility Information
The WTA-Q10 is available in different configurations. Please compare your existing component with the options above before ordering to make sure you select the correct replacement.
The two WTA-Q10 quartz sleeve options are protective quartz sleeves for UV lamps. The Neptune WTA-10 option is a replacement UVC light bulb and is not a quartz sleeve.
Neptune WTA-10 Replacement UVC Light Bulb
100% Compatible 4 Pin on a Single End - 30 Watt Germicidal Water Treatment Bulb
The replacement light bulb is made using the highest quality standards and is compatible for use with the following germicidal UVC system model:
- 05-0343-1
The UVC light bulb is 100% compatible with germicidal OEM water disinfection filters, UV sanitizers, and ultraviolet water purifiers. It has a 12-month lifespan, after which we recommend replacing the lamp bulb for better system efficiency.
With a peak output of 185nm, the UV lamp generates ultraviolet energy which is proven to effectively produce ozone, a natural sanitizer and deodorizer. A 185nm UV light produces UV energy in wavelengths shorter than 220nm, which decomposes oxygen to produce ozone.
The light bulb lasts up to 10,000 hours, after which we highly recommend replacing it for better performance.
UVC ozone lamps remove volatile organic compounds (VOCs) such as mercaptans, sulfides, and ammonia. One of the advantages of ozone light is that it can be transported through the air to places where direct UV exposure cannot reach.
Technical Specifications
- Total Length: 25.59 inches (650mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 420mA
- Lamp Voltage: 76V
- Lamp Wattage: 30 Watts
- Peak UV Output: 185nm
- Glass Type: Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Locations for Use
- Factories
- Farms
- Homes
- Hospitals
- Hotels
- Laboratories
- Ships
WTA-Q10 Quartz Sleeve Specifications

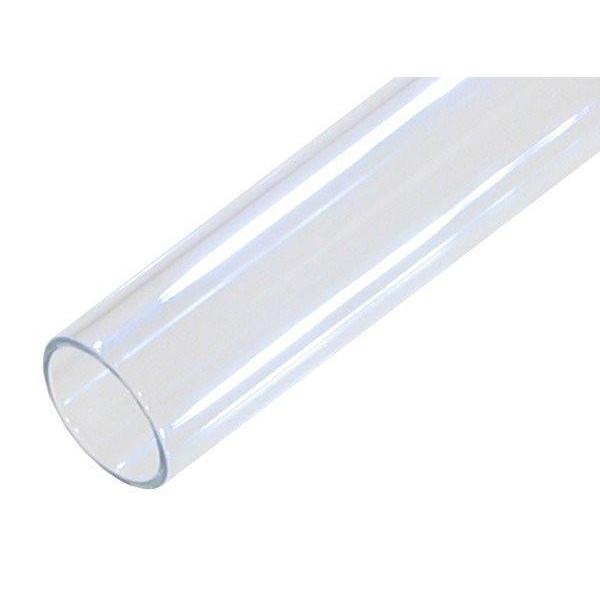

The replacement quartz sleeves protect the UV lamp while allowing UV energy to pass through efficiently for water treatment applications.
Please verify your existing sleeve configuration and dimensions before ordering.
| Feature | WTA-Q10 Closed-End | WTA-Q10 Open-End | Neptune WTA-10 UVC Lamp |
| Component Type | Quartz Sleeve | Quartz Sleeve | UVC Light Bulb |
| End Configuration | Closed on one end | Open on both ends | 4 pin on a single end |
| Total Length | 29.88" (759 mm) | Verify existing sleeve | 25.59" (650 mm) |
| Diameter | 0.87" OD / 0.96" OD | Verify existing sleeve | 0.59" (15 mm) quartz diameter |
| Wattage | N/A | N/A | 30 Watts |
| Peak UV Output | N/A | N/A | 185 nm |
| Operating Current | N/A | N/A | 420 mA |
| Lamp Voltage | N/A | N/A | 76 V |
| Glass Type | Quartz | Quartz | Ozone |
| Base | N/A | N/A | Ceramic, 4-pin single end |
| Rated Life | N/A | N/A | Up to 10,000 hours |
Before Ordering
To ensure you receive the correct replacement, compare your existing component with the product option selected above.
Quartz Sleeve: Verify whether your existing sleeve is closed on one end or open on both ends.
UVC Lamp: If you need the Neptune WTA-10 replacement lamp, verify that your system uses model 05-0343-1 and that the lamp specifications match those listed above.
If you are unsure which option is compatible with your system, please contact us before ordering.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
