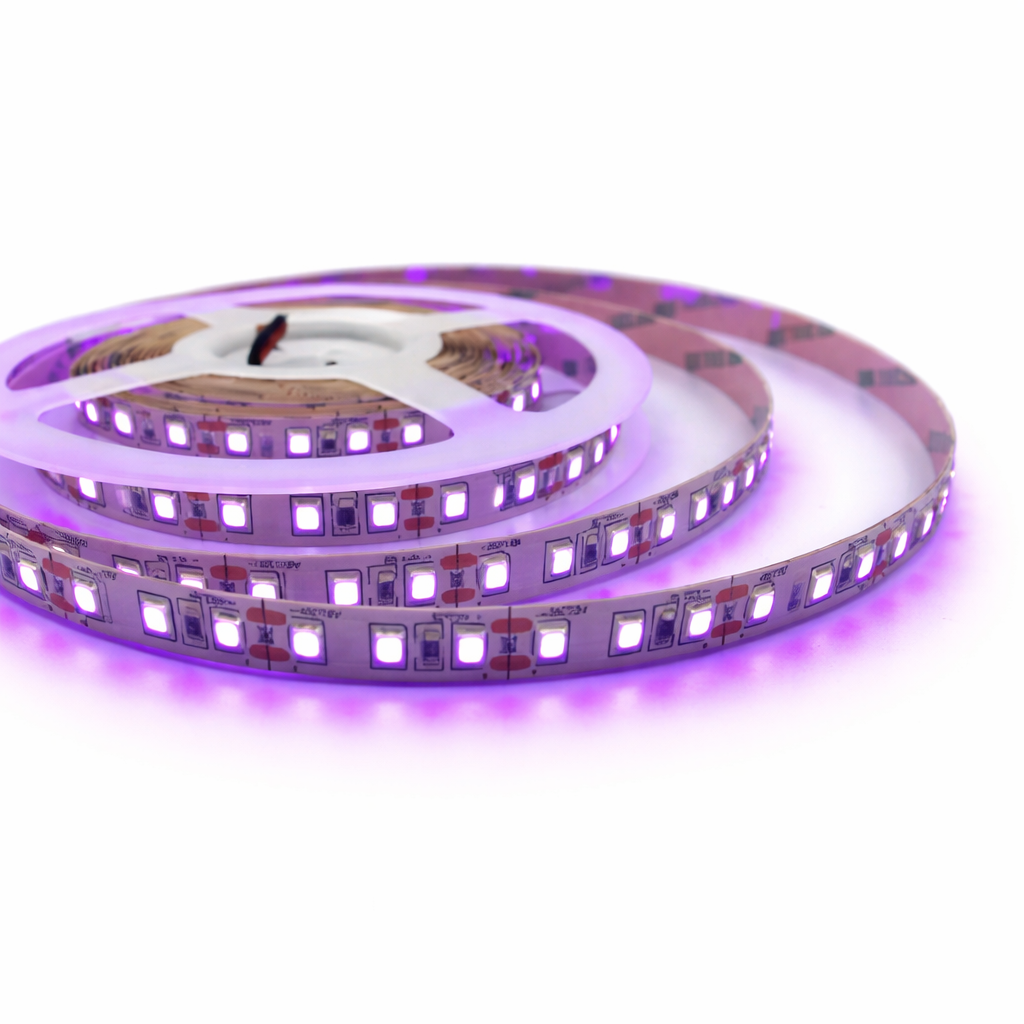

CureUV 365nm Light Flexible Blacklight LED Strip

The CureUV 365 nm Flexible Blacklight LED Strip is a high-performance UV PURPLE fishing and specialty lighting solution engineered for indoor and outdoor use, including fully submerged environments. Designed with a custom double-PCB architecture and premium UV components, this strip delivers consistent fluorescence activation, long service life, and dependable performance in demanding conditions.

Built using high-efficiency 2835 SMD LEDs, the strip produces a uniform 365 nm UV output optimized to maximize the visibility of fluorescent fishing line, coatings, inks, and adhesives. Its flexible construction, dimmable capability, and industrial waterproofing make it suitable for marine, industrial, and specialty lighting applications.

Note: Power adapter not included.

Key Features & Benefits

• True 365 nm UV Output (UV Purple): Optimized wavelength for maximum fluorescence response.
• High-Density LED Configuration: 120 LEDs per meter (600 LEDs per 16 ft) for even light distribution without hotspots.
• Double PCB Construction: Improved thermal management and durability compared to single-layer PCB designs.
• Dimmable Operation: Allows output adjustment based on application requirements.
• Low-Voltage, Energy-Efficient Design: Operates on DC 12V, compatible with batteries, switches, or fuse boxes.
• Flexible, Cut-to-Length Strip: Cuttable every 3 LEDs for precise installation lengths.
• Marine-Grade Waterproofing: Silicone-injected design provides superior sealing for harsh environments.

Construction & Waterproof Ratings

• IP20 – Non-Waterproof: Indoor installations with adhesive backing.
• IP65 – Surface-Glued Waterproof: Protected outdoor use.
• IP67 – Outdoor Silicone Encapsulated: Includes mounting brackets for secure exterior installations.
• IP68 – Fully Waterproof / Submersible: Designed for underwater use; UV-resistant clear encapsulation prevents yellowing over time.

Technical Specifications

• Type: UV Fishing Light
• Color: UV Purple
• Wavelength: 365 nm
• Input Voltage: DC 12V
• Power Options: 0.2 W per LED or 0.5 W per LED
• LED Type: 2835 SMD
• LED Density: 120 LEDs per meter
• Output: 234 lumens per foot (UV blacklight output)
• PCB Widths: 0.20 in and 0.31 in
• Approx. Strip Size: 3/8 in wide × 3/16 in thick
• Operating Temperature: 20 °C to 60 °C
• Installation Area: Indoor & Outdoor
• Adhesive: 3M industrial adhesive backing
• Rated Lifespan: Up to 50,000 hours
• Leads: One positive and one negative lead on one end
• California Prop 65 Warning: IP68 waterproof

Applications

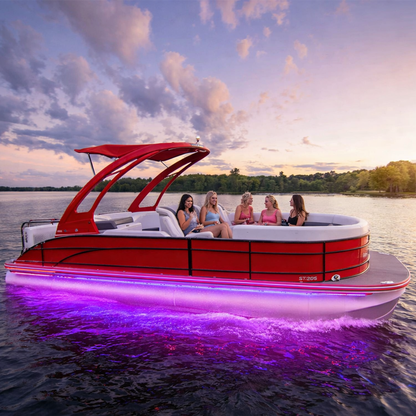

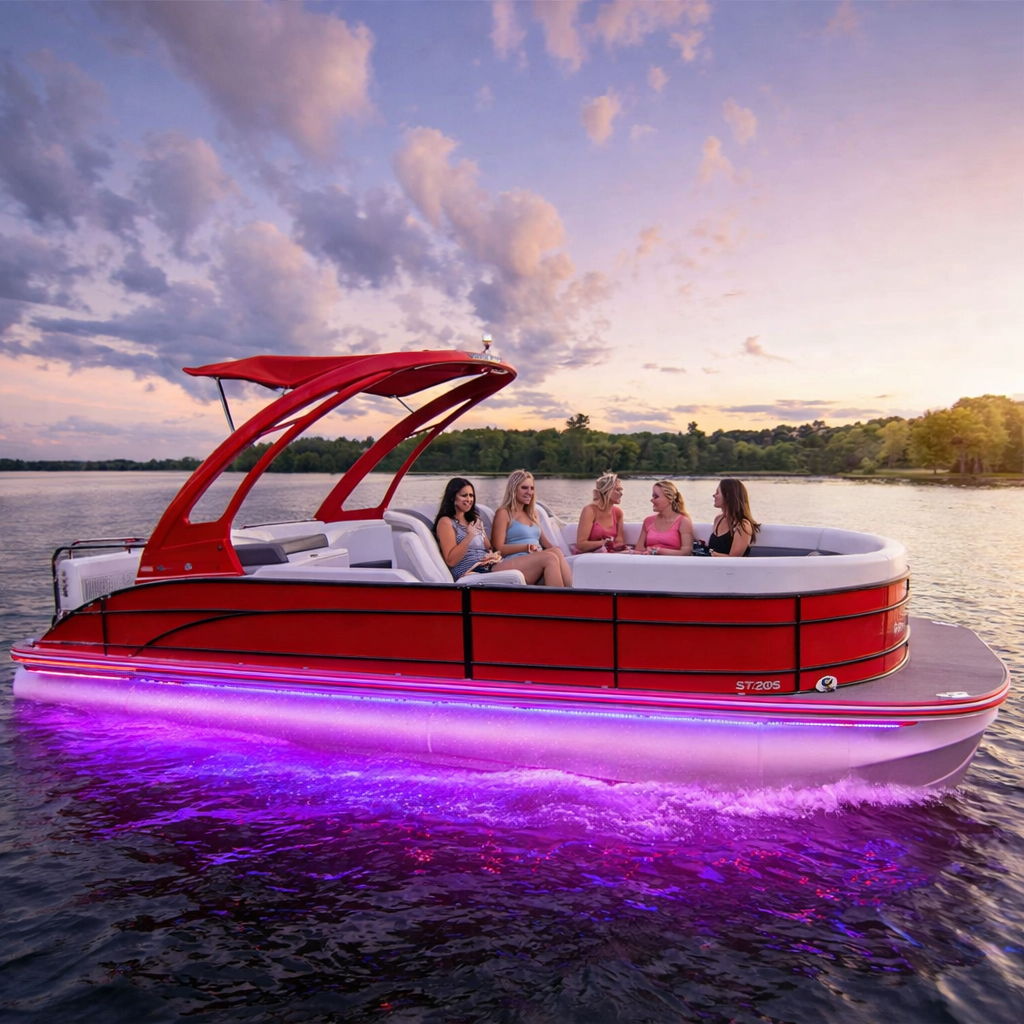

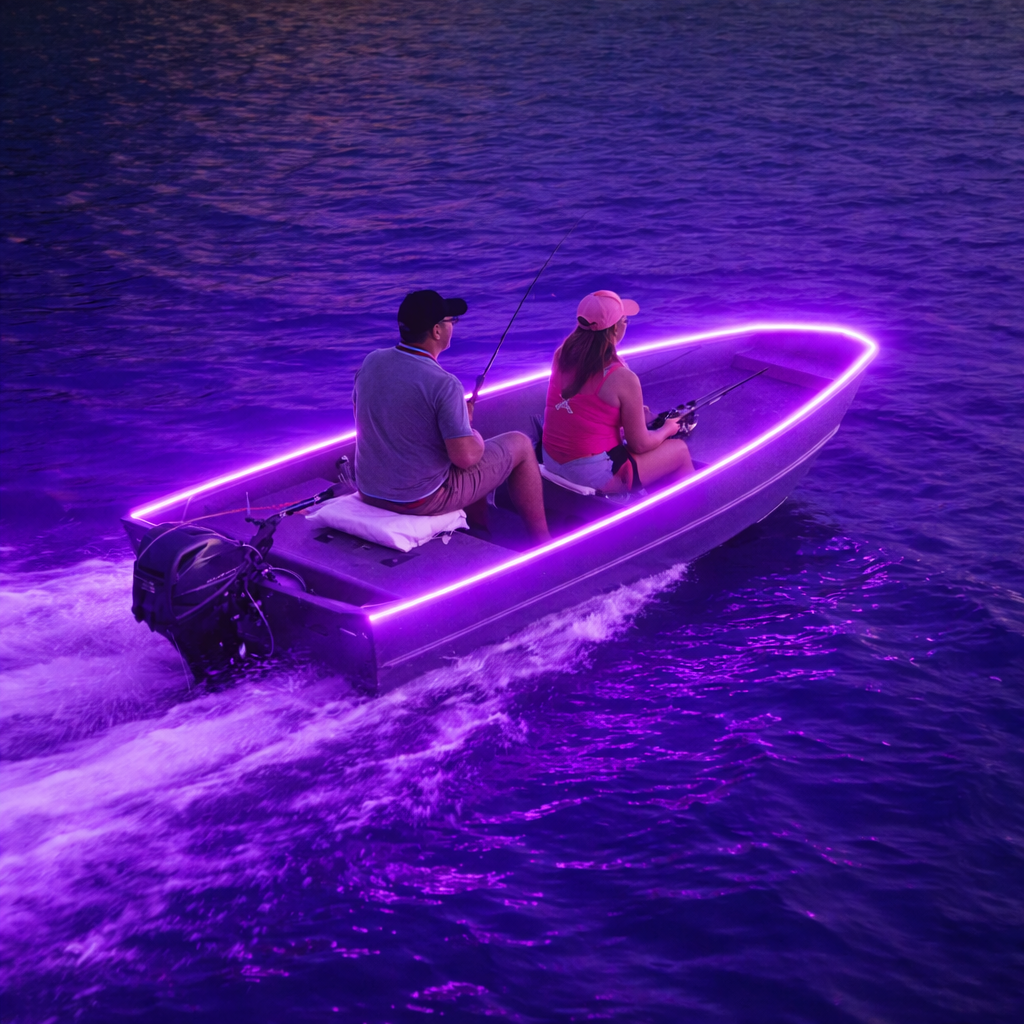

• Night fishing and marine installations
• UV curing and industrial processing
• Fluorescent inspection and quality control
• Medical and dental curing applications
• Currency and document validation
• Specialty blacklight installations

Custom lengths and configurations available upon request.
