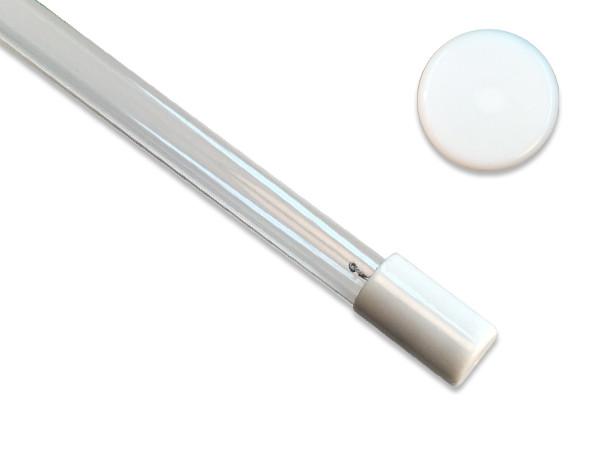

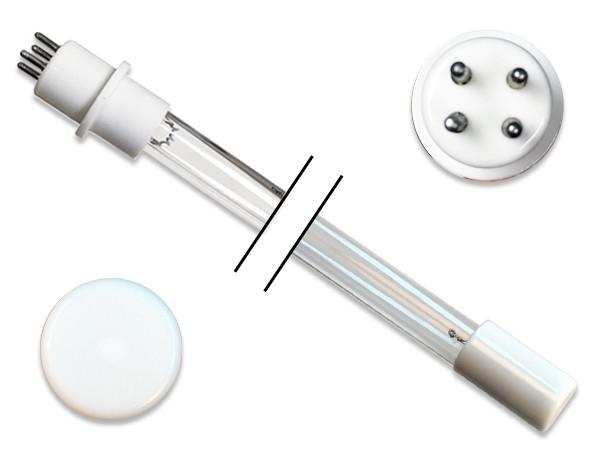

Germicidal UV Bulbs - Steril-Aire 22000200 Replacement UVC Light Bulb
Germicidal UV Bulbs - Steril-Aire 22000200 Replacement UVC Light Bulb Germicidal UV Bulbs - Steril-Aire 22000200 Replacement UVC Light Bulb Germicidal UV Bulbs - Steril-Aire 22000200 Replacement UVC Light Bulb Germicidal UV Bulbs - Steril-Aire 22000200 Replacement UVC Light Bulb

CureUV Brand UVC Bulb for Steril-Aire RGTS24HO
Free Gift

SKU:

UV Bulb Price Match Guarantee
$73.99 $90.00

4 Pin Cell Base on a Single End - 30 Watt Germicidal Air & Surface Treatment Bulb

Our CureUV brand Replacement UVC Light Bulb for Steril-Aire RGTS24HO is a 30 watts UV bulb that has a lamp length of 23.98 inches. It is 100% compatible with germicidal OEM Air & surface disinfection filters, UV sanitizers, and air purifiers. This lamp also uses UV-C light to inactivate and kill bacteria, molds, protozoa, viruses, and yeasts. This replacement germicidal bulb has a 4-pin base used for air purification.

This UVC bulb is a 100% compatible replacement for use with germicidal UV-C system models:

  • 22000200

12-month worry-free operation and germ sterilizing power. After 12 months of operation, the light may still be visible through the bulb but its germ-killing ability quickly diminishes. Remember to wear proper eye, face, and skin protection before exposing yourself to UV light.

This bulb is available with a shatterproof coating that in case of damage keeps the lamp glass from falling into the unit where is installed. This results in an easy way to dispose of glass if it shatters. You can select this shatterproof option above.

Do I need shatterproof coating?

Although shatterproof coating can lower the intensity of the UV-C bulb by as much as 15%, it is recommended for applications in which it is crucial to avoid potential glass breakage at all costs. These applications include but are not limited to food processing and medical institutions. However, if glass breakage would be inconvenient but not catastrophic, skipping the costly shatterproof coating is quite alright. After all, we do not use shatterproof coating with our glasses and plates at home.

The UV lamp starts instantly and makes use of a coil filament that operates hot. The UV lamp is managed by the life of electrodes and works well for the following applications that require UVC intensity:

Common Applications for use:
  • Air Conditioners
  • Air Purifiers
  • Beverage Services and Processing
  • Food Services and Processing
  • Heating & Cooling Filters
  • HVAC Systems
  • Surface Disinfection
Common Locations for use:
  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

Technical Specifications:

  • Total Length: 23.98 inches (609mm)
  • Arc Length: 20.28 inches (515mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 420mA
  • Lamp Voltage: 72V
  • Lamp Wattage: 30 Watts
  • Output UVC Watts: 10 Watts
  • Output uW/cm^2 @ 1m: 90
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone

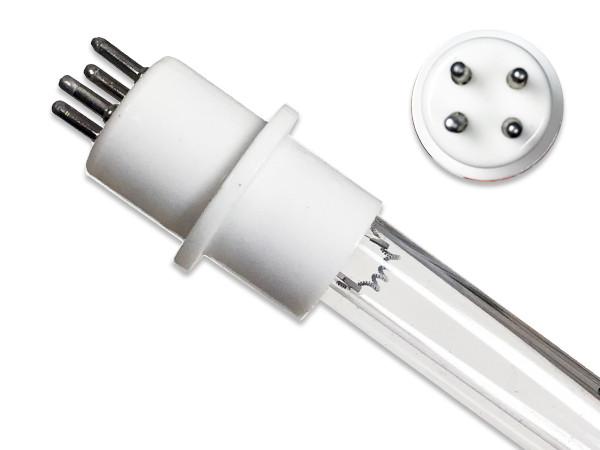

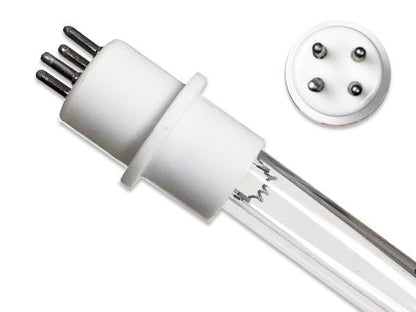

  • Base Style: 4 pin cell base on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Drawing of Replacement UVC Bulb Item # 510933 (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Steril-Aire brand UVC bulbs. All Steril-Aire brand names, trademarks, and logos are property of Steril-Aire.

Note: CureUV brand products are 100% compatible with the original equipment.

Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
