CureUV Customizable Desktop LED UV Curing Conveyor
CureUV Customizable Desktop LED UV Curing Conveyor
SKU:201087-365-3
Couldn't load pickup availability
This customizable UV curing conveyor is a compact, desktop system built for semi- and fully-automatic production lines. It pairs a water-cooled UV LED array. Available in 365nm, 385nm, 395nm, and 405nm. It has a durable, speed-adjustable Teflon belt, so you can dial in fast, repeatable curing for inks, coatings, adhesives, and more.
Why choose this UV curing conveyor
- No warm-up required: the LED array reaches full output instantly, so there's no preheating downtime.

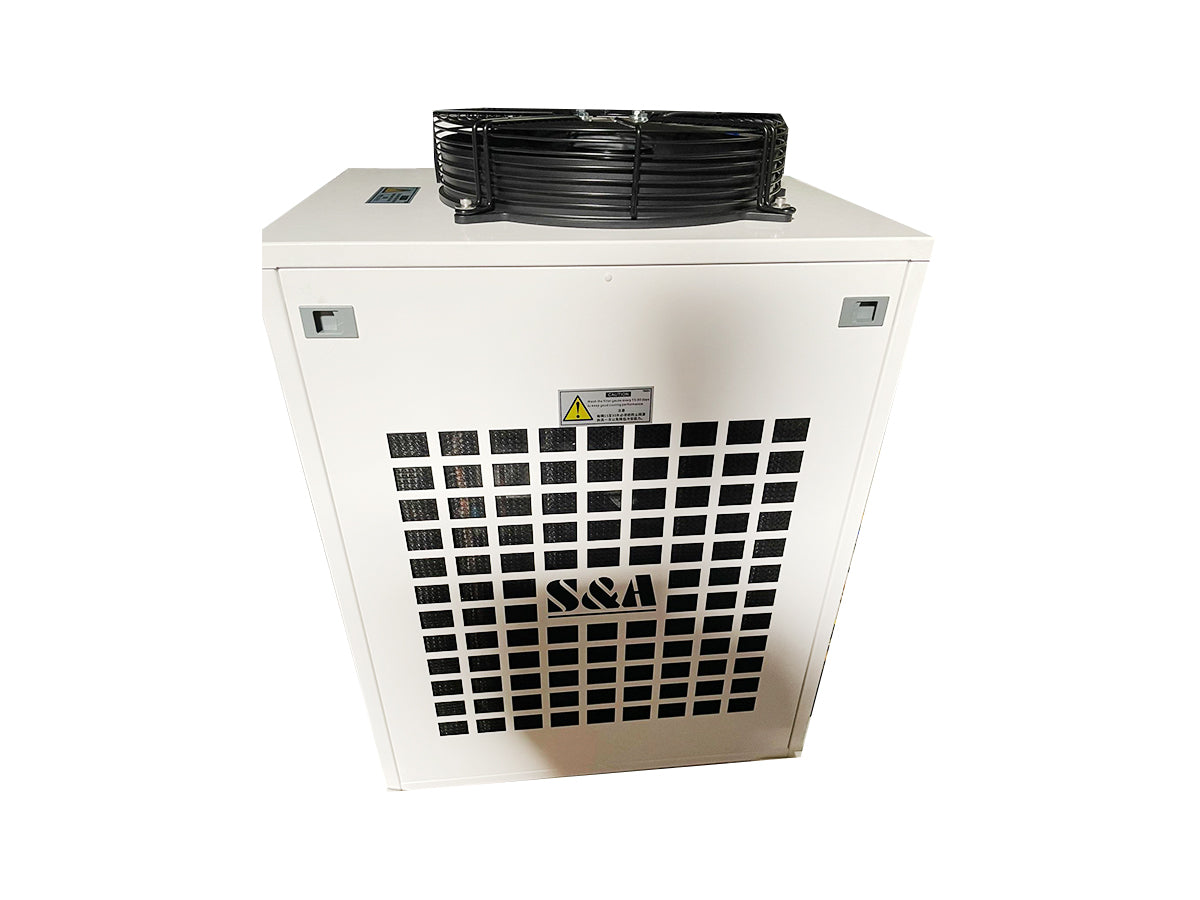

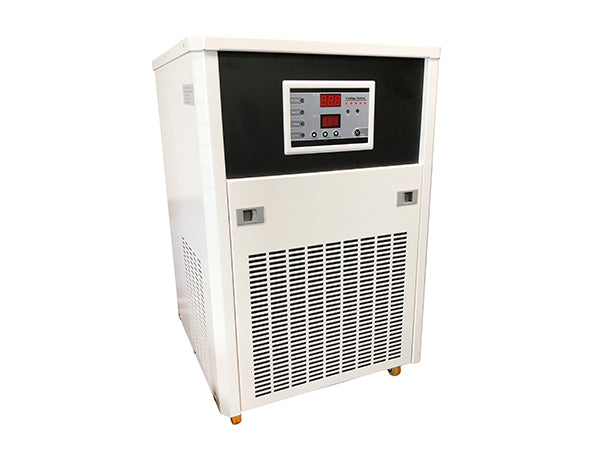

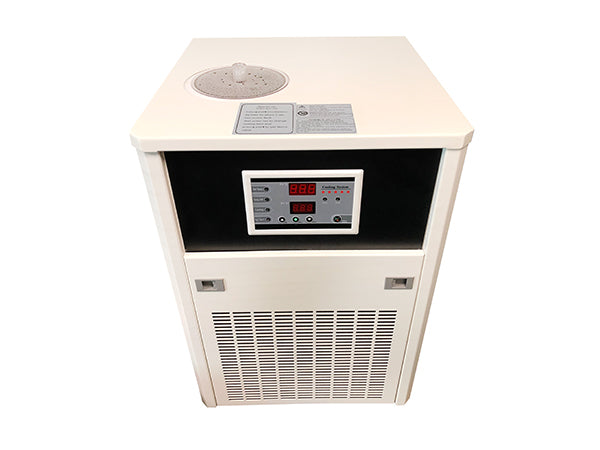

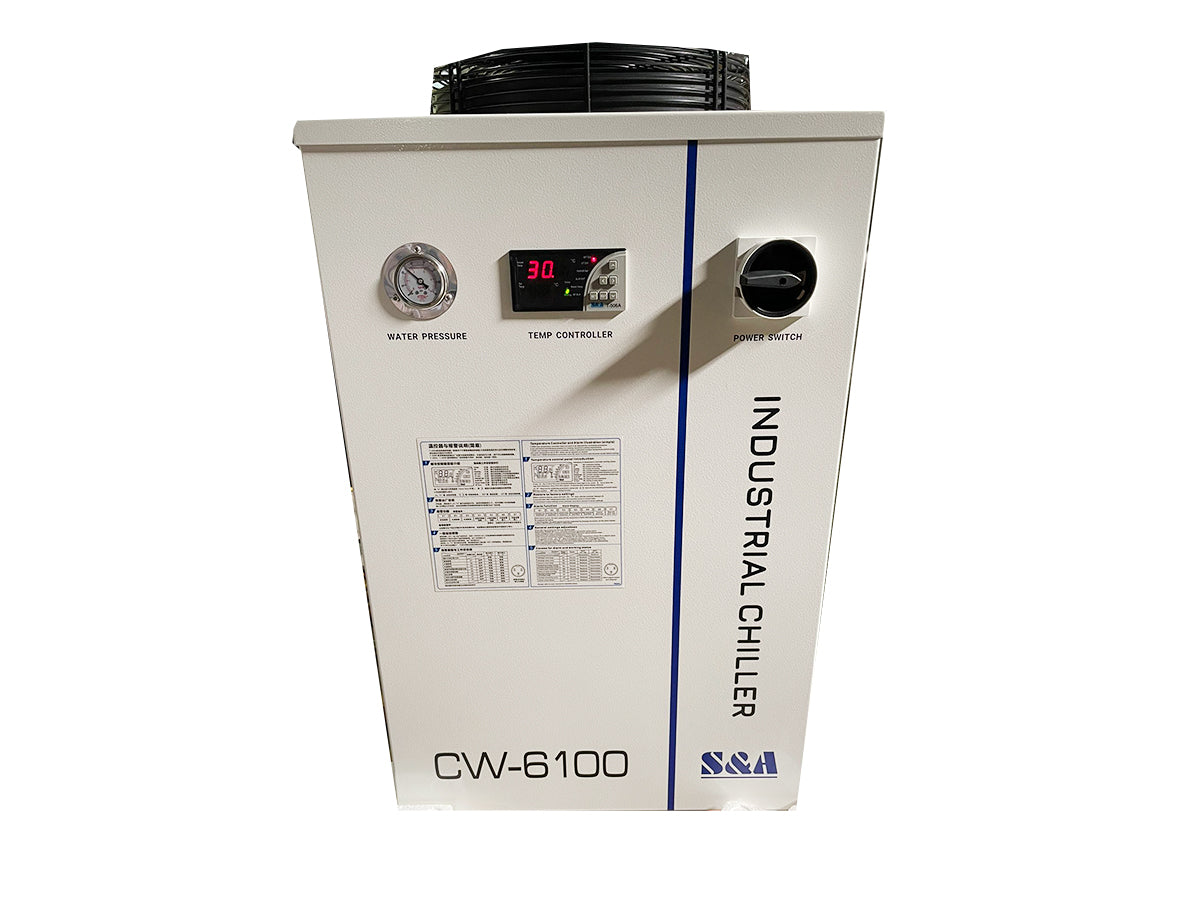

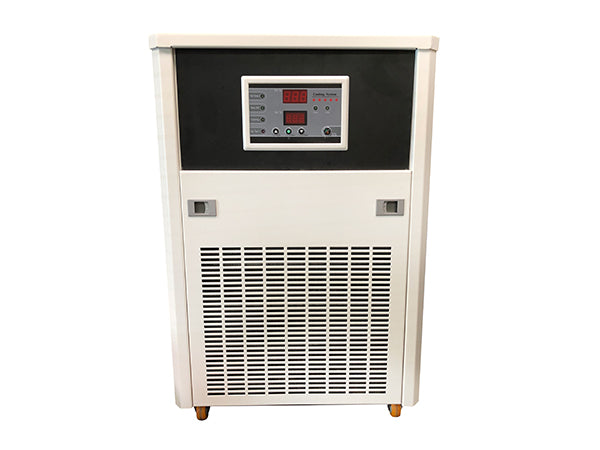

- Integrated water cooling: keeps the LED system running at peak efficiency and extends its service life.
- Energy efficient: high photoelectric conversion and concentrated energy output keep power draw low.
- Cold light source, cool cure: the UV LED emits negligible heat, protecting heat-sensitive materials during curing.

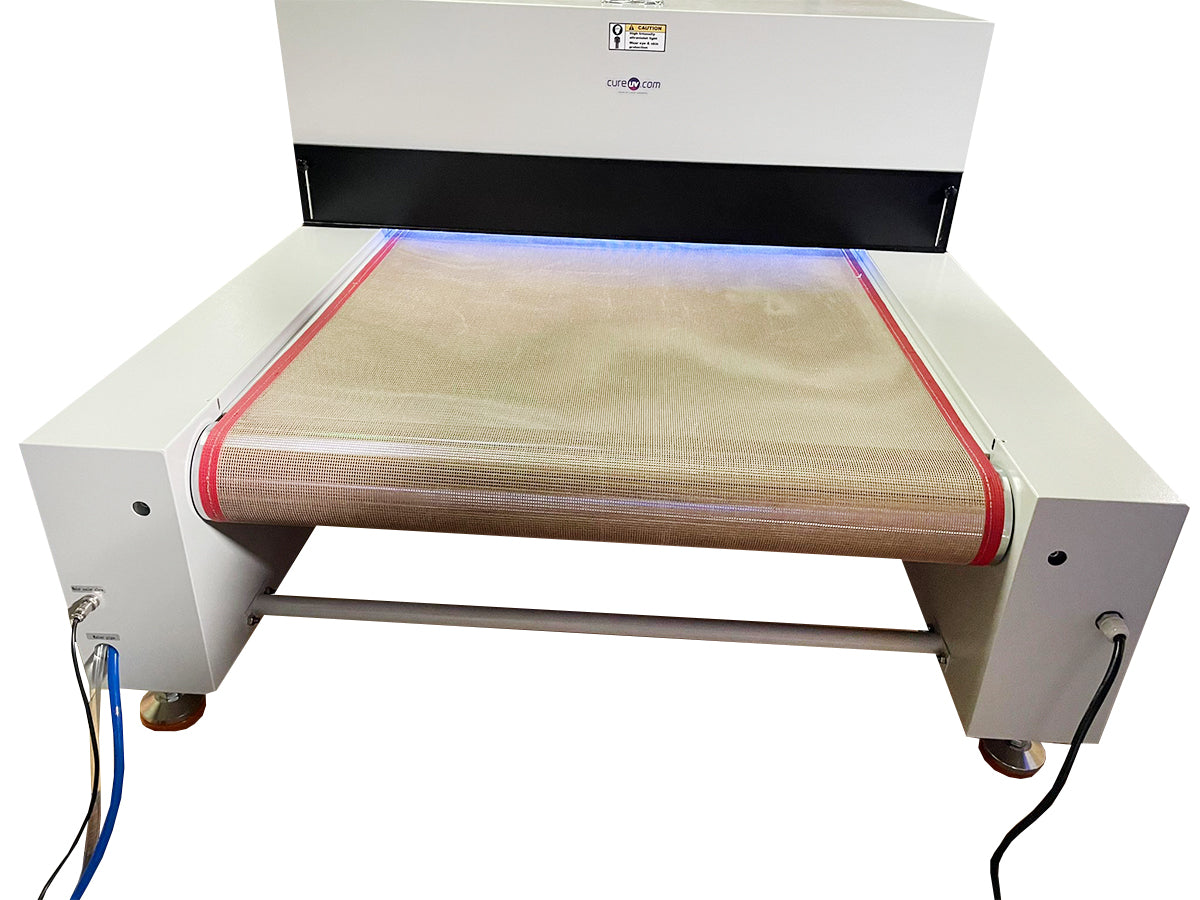

- Fully adjustable belt speed: the extra-durable Teflon conveyor belt lets you match throughput to your process.

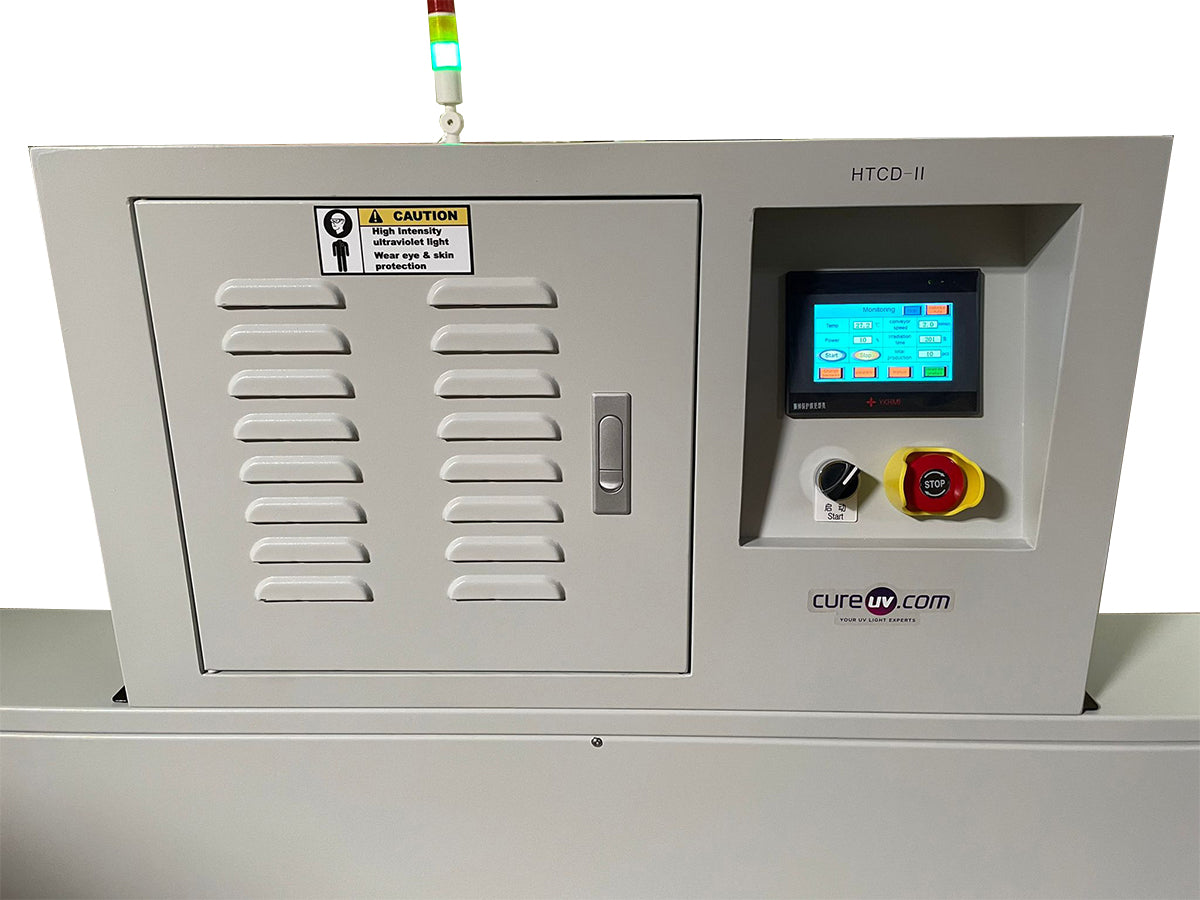

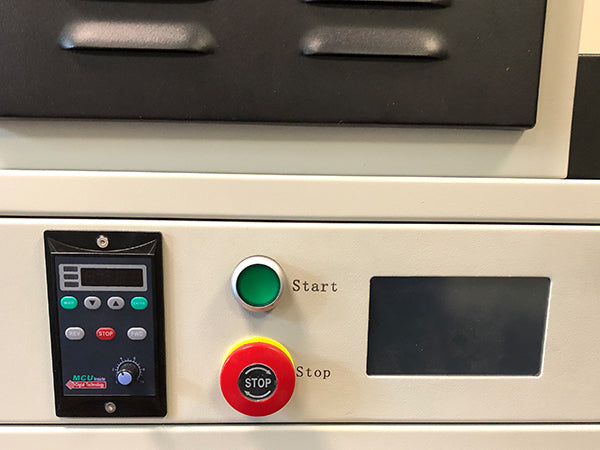

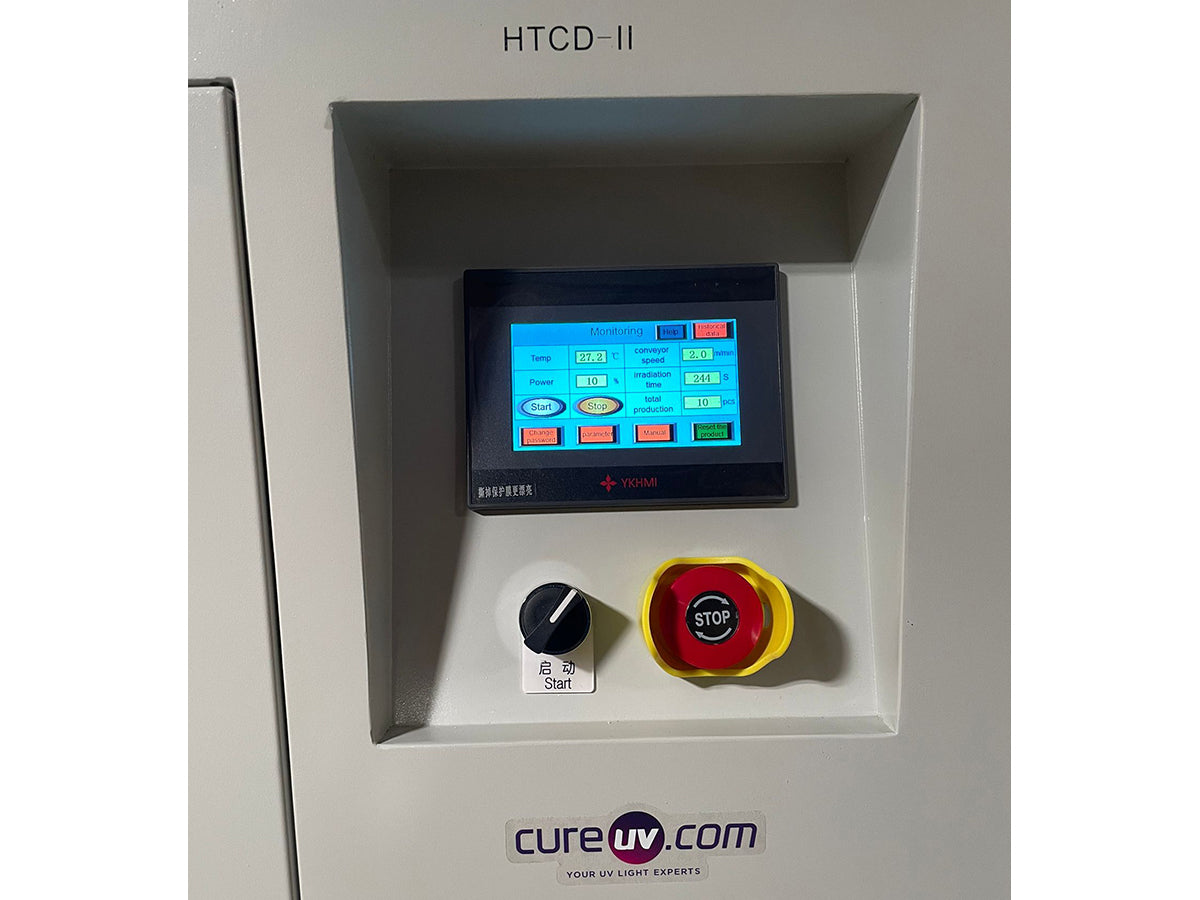

- Simple PLC touchscreen control: user-friendly operation that's quick to set up and run.
- Built-in wheels: move and reposition the system around your facility with ease.

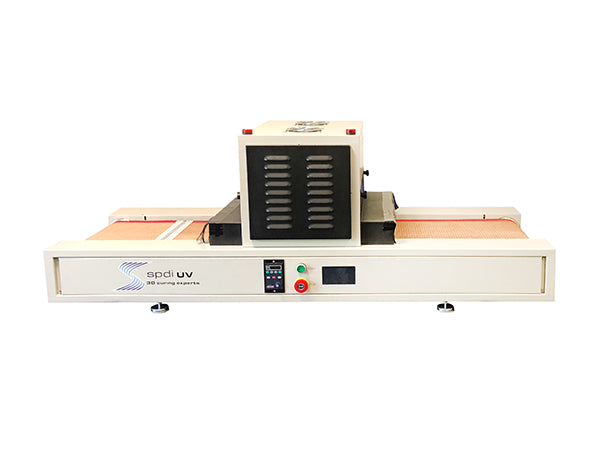

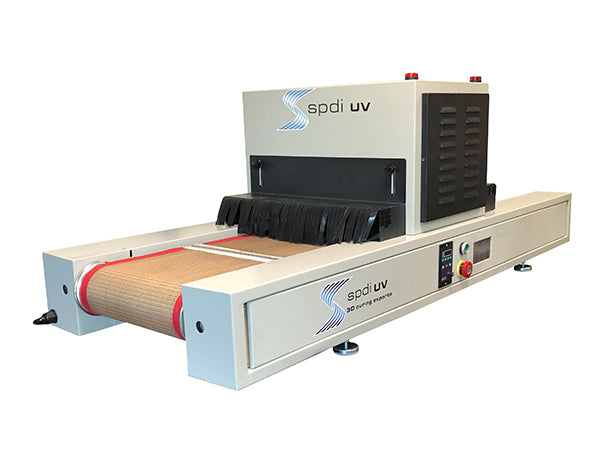

High-Intensity UV LED Curing Conveyor System

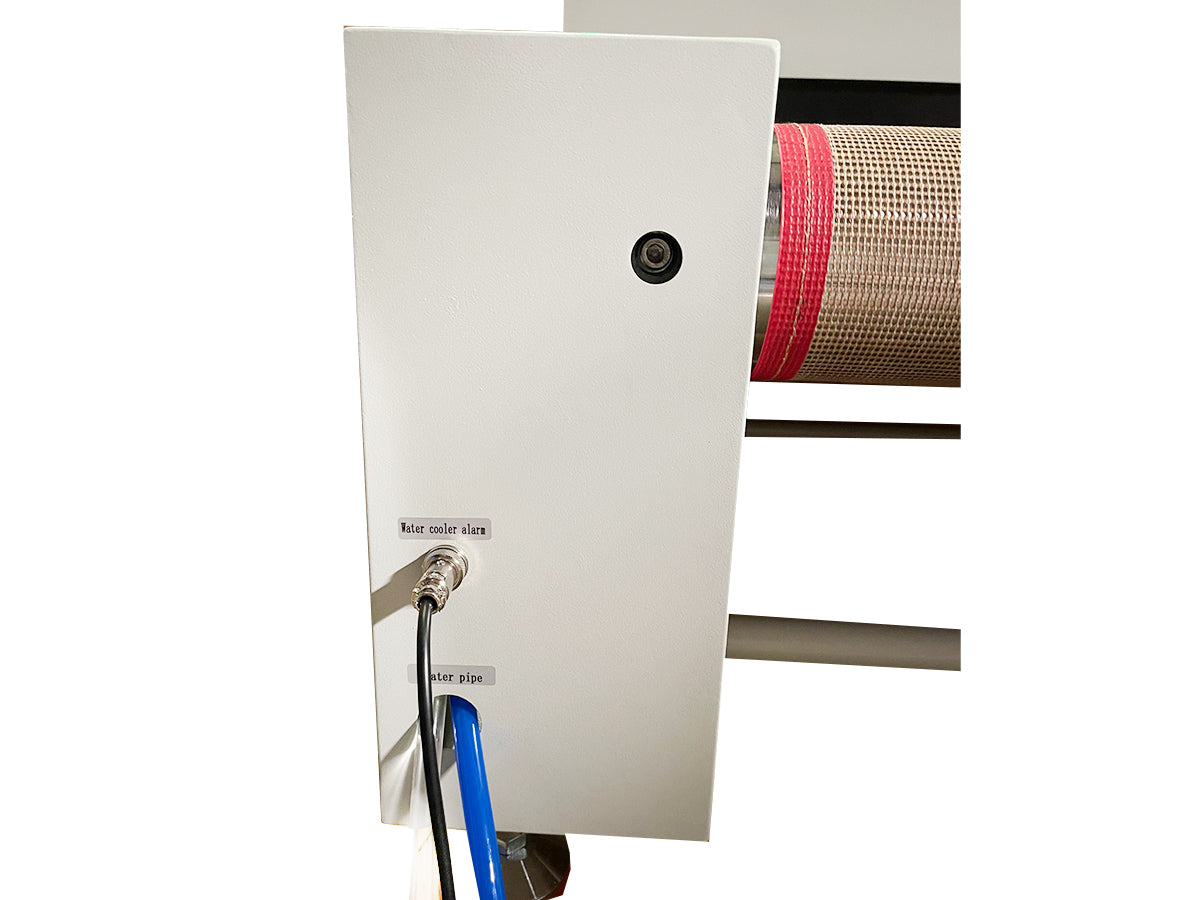

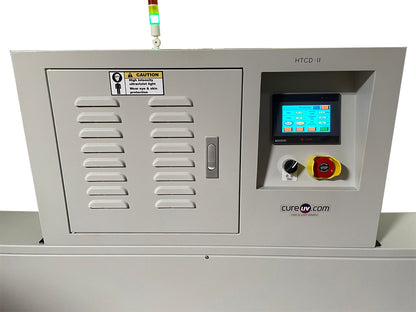

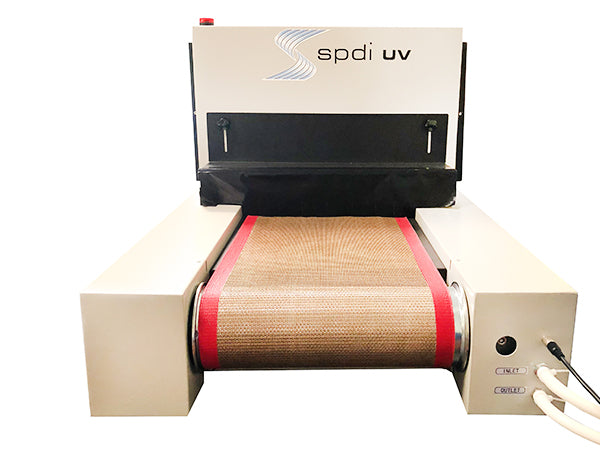

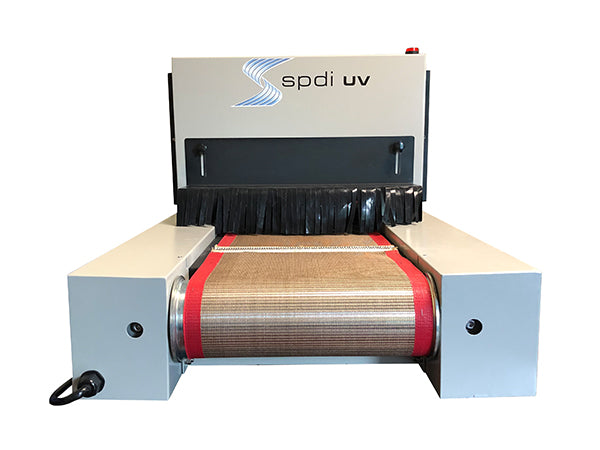

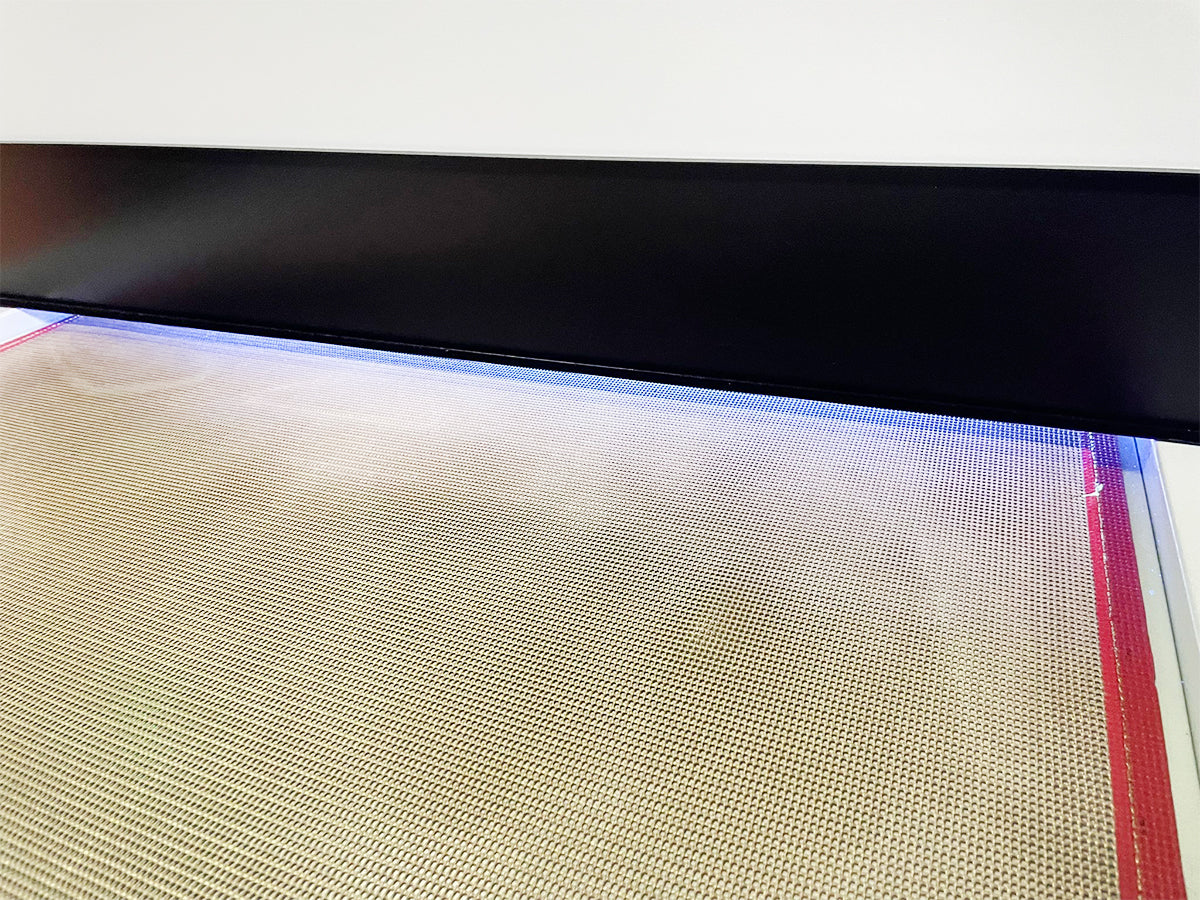

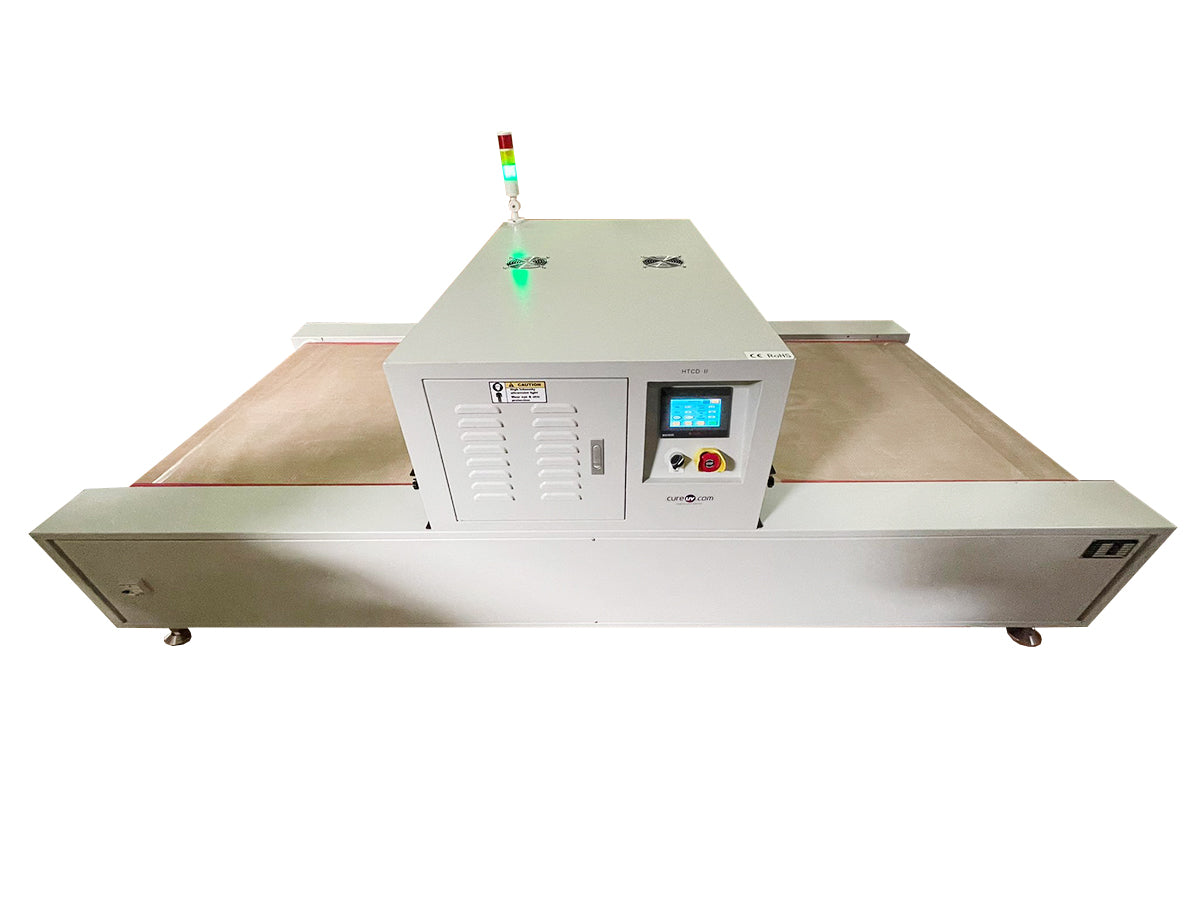

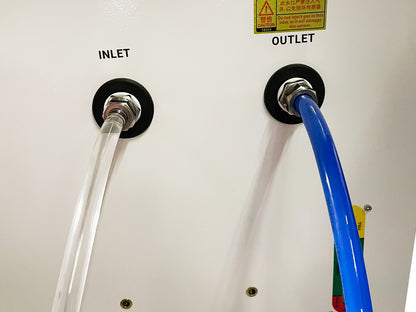

Each UV curing conveyor system combines a control unit, a high-intensity UV LED irradiation head, and a Teflon conveyor belt. Forced water cooling dissipates heat efficiently, helping the system run longer and lowering your cost of ownership over its useful life. The standard effective curing area is 900 × 300 mm.

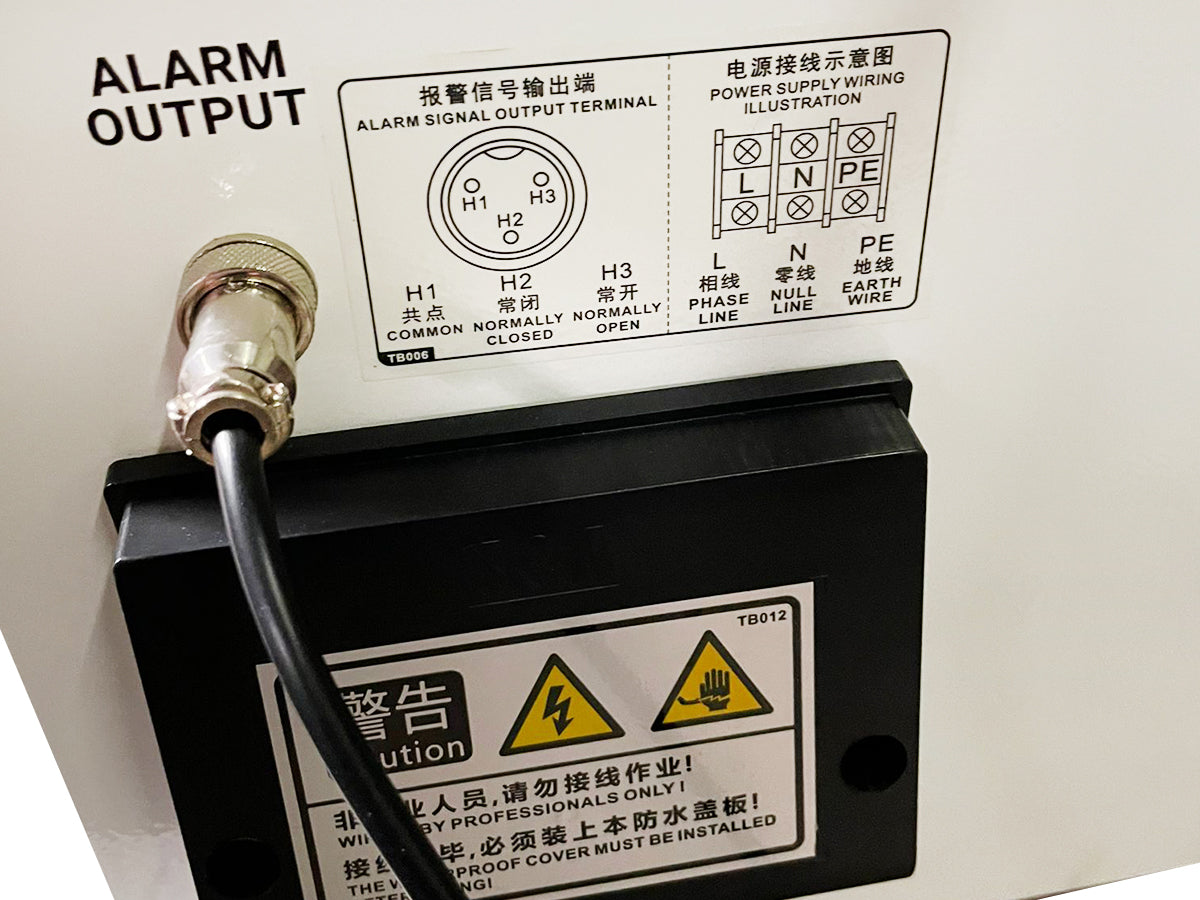

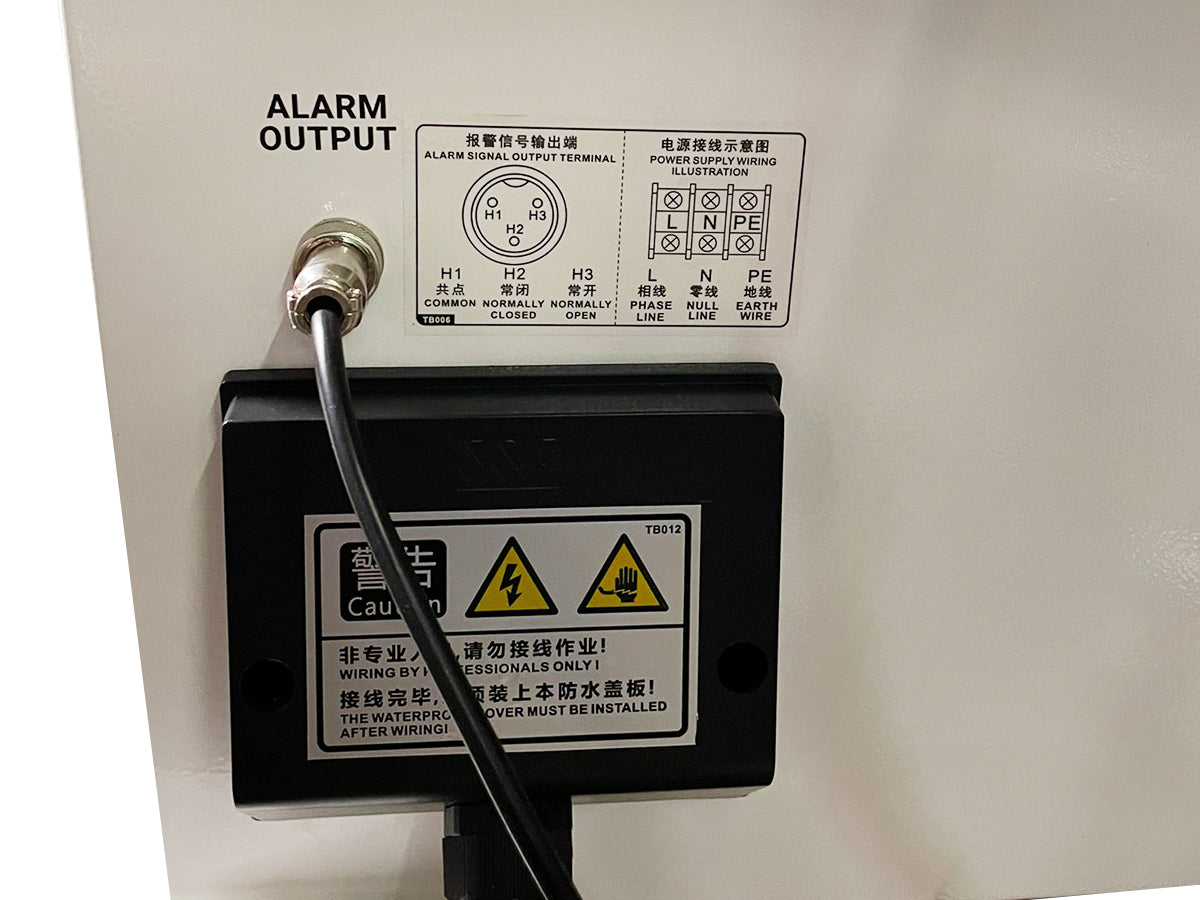

This UV LED conveyor supports external signal input and triggering, making it suitable for automatic or semi-automatic production lines.
The available wavelength options help match the system to the UV material being cured. The LED array starts instantly and cures without excessive heat, helping protect heat-sensitive materials while improving process efficiency.
Technical Specifications
| UVLED Light Source Luminous Area | 900 × 30 mm, customizable |
|---|---|
| Effective Curing Area | 900 × 300 mm |
| Optical Power Density | 7 W/cm² |
| Electric Power | 3600W |

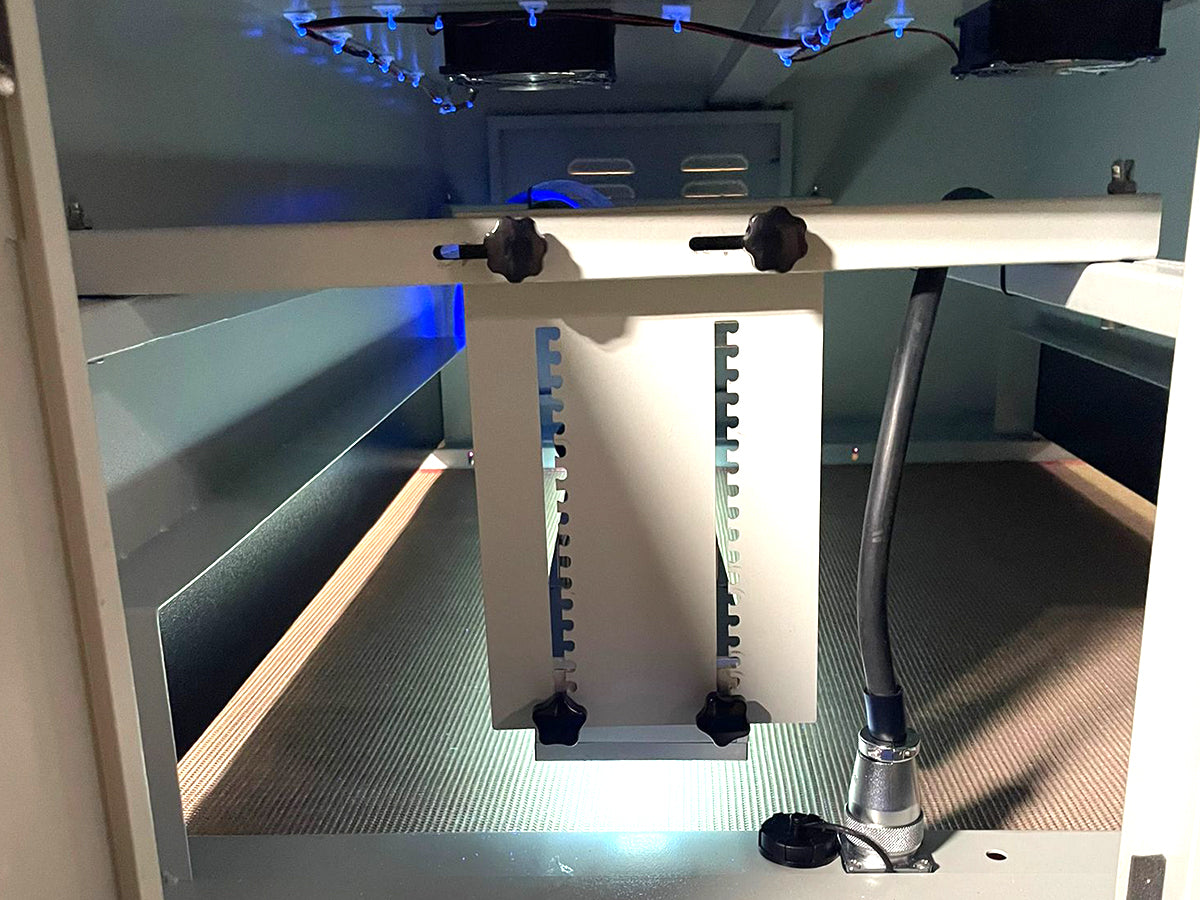

| Height of Inlet and Outlet | 10–100 mm adjustable, customizable |
| Conveyor Length | 60–84 inches |
| Conveyor Width | 12–24 inches |
| Conveyor Entry Height | 6 inches |
| Conveyor Speed | 0 to 60 feet per minute, adjustable from 1 to 1829 centimeters per minute |
| Control Module | Full-color responsive LCD touchscreen |
| Input Voltage | 120 VAC / 60 Hz, also available in 220V / 50Hz for international customers |
| Adjustable Range of Optical Power | 1–100% |
| Useful Life | 20,000 hours |
LED Irradiator Technical Specifications
| Wavelength | Choice of 365 nm, 385 nm, 395 nm, and 405 nm |
|---|---|
| Irradiator Width | 12 inches, 24 inches, 30 inches, or 36 inches |
| UV Exposure Intensity | Up to 10 W/cm² |

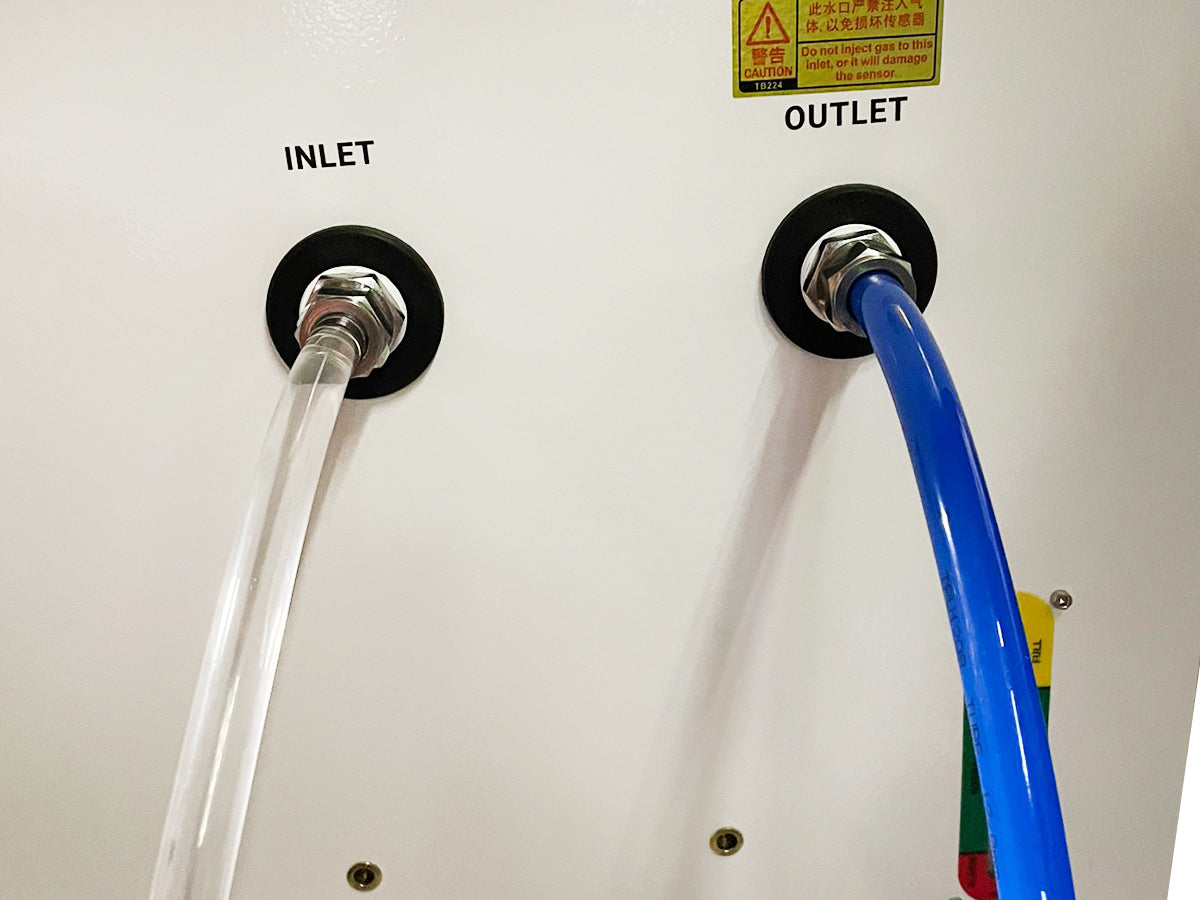

| Cooling | Water cooling |
Applications
Ideal for curing:
- UV adhesives
- UV finishes
- UV clear coats
- UV paint
- UV ink
- UV varnish
- Photo-initiated reactions for lab use
Technical Resources
Technical Data Sheet
Technical Drawing Custom UV Conveyor Options
These systems can be customized to meet your exact needs. Whether you need more power, a wider conveyor, or varying speeds, CureUV can help configure a UV curing system for your process. Please reach out to us at sales@cureuv.com or call 1(800) 977-7292 between 8:00 a.m. and 4:30 p.m. EST.
