GPH436T5L Germicidal UV-C Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed Replacement Ultraviolet (UV) Bulb - Miniature 2 Pin (bipin) - 20 Watts - 17.15 Inch Length Lamp - Worry Free Performance for 1 Year

    • Wattage: 20W
    • Length: 17.15 inches (436mm)
    • Pins/Base: Miniature bi-pin (2 pin), G5
    • Shape: T5
    • Average Lifespan: Up to 10,000 hours

    Operates at 253.7 nm, ideal for UV disinfection. Good for use at any velocities. Temperatures ranging from 30-170 degrees F. High Output (HO).

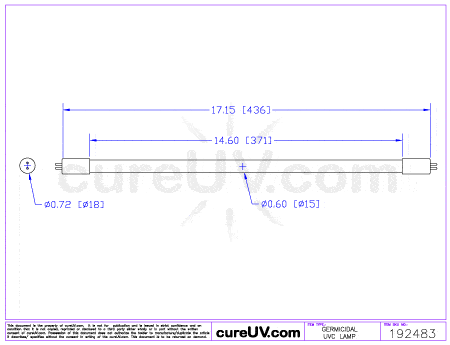

    Drawing for GPH436T5L germicidal UV disinfection light

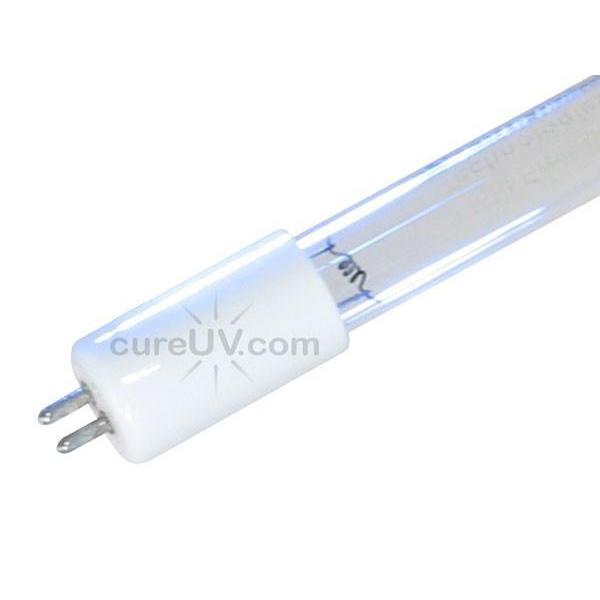

    This 20 watt ultraviolet (UV) sterilization lamp uses UV-C light to inactivate and kill bacteria, molds, protozoa, viruses, and yeasts. This germicidal bulb has a miniature 2 bi-pin base. 100% Compatible Replacement for Lamp/Model Number: GPH436T5L, GPH436T5L/2P. This germicidal UV light bulb is available with a Shatterproof Coating. Simply select this option above.

    This ultraviolet purification lamp is instant starting and utilizes a coil filament, which operates hot. The UV lamp life is governed by the life of the electrodes and is affected by the frequency of starting. The fixture is high quality, with a long lifespan and low mercury dosage to meet environmental demands. This germicidal lamp is well-suited for the following applications that require UV-C intensity:

    • Well water
    • Surface water
    • Municipal water
    • Food service/processing
    • HVAC and Air Conditioning units
    • Air purifier/treatment systems
    • Hospitals
    • Aquaculture
    • Electronics
    • Pharmaceuticals
    • Hotels
    • Water bottlers
    • Laboratories
    • Surface disinfection
    • Marine and more..
    CureUV Brand - Guaranteed Reliable Replacement Lamp

    GPH436T5L-2P Germicidal UV Sanitizer Bulb Drawing (PDF)

    Not your UV germicidal lamp? Have more questions? Call or Click. It's that easy.

    *Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgGPH436T5L | 2 pin (bi-pin) Germicidal UV Sanitizer Bulb
  • GPH436T5L



    GPH436T5L 2P
