CureUV’s Industrial Hot Air Dryer Tunnel delivers consistent and efficient drying performance and integrates seamlessly into automated wood finishing and coating lines. Designed for precision, efficiency, and long-term reliability, it ensures uniform moisture removal and controlled curing across coated wood panels, accelerating the drying of waterborne stains, varnishes, and lacquers while maintaining consistent surface quality and preparing substrates for subsequent finishing or packaging stages, making it a dependable solution for stable industrial production and high-quality wood processing.

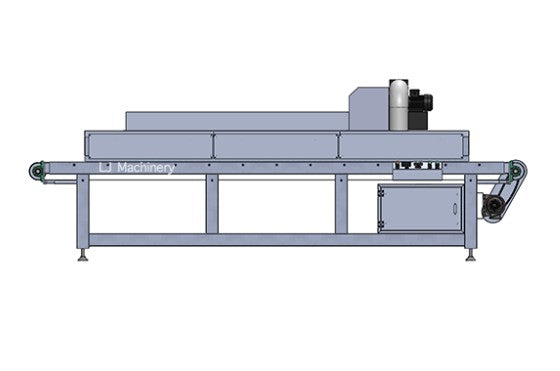

CureUV Industrial Hot Air Dryer Tunnel
CureUV Industrial Hot Air Dryer Tunnel
SKU:512334
Couldn't load pickup availability
Also Known As:
Also Known As:
CureUV Industrial Hot Air Dryer Tunnel

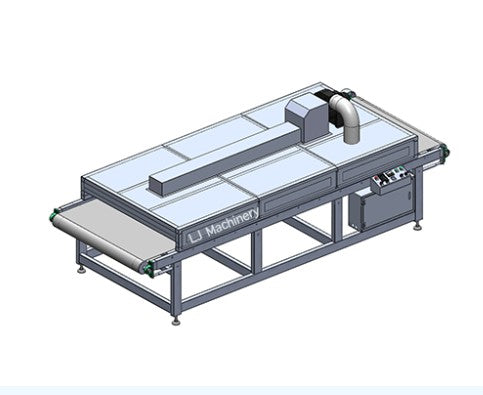

The Industrial Hot Air Dryer Tunnel is a high-performance continuous drying system designed to rapidly and uniformly remove moisture from coated substrates after the application of stains, varnishes, lacquers, and other waterborne finishing materials. The system features a long enclosed tunnel equipped with infrared heating emitters and a forced hot-air circulation system, allowing coated panels to move through the chamber on a conveyor while receiving precisely controlled thermal energy for consistent drying, curing, baking, or pre-heating across the entire surface.
By combining radiant infrared heat with uniform airflow, the dryer significantly accelerates the drying process compared with natural air drying or basic infrared systems, improving coating quality and reducing production time between finishing and packaging. The equipment is designed for integration into automated coating and finishing lines, providing stable thermal performance, precise dwell-time control, and uniform curing results for industrial-scale manufacturing environments.
Key Features
| Feature | Description |
|---|---|
| Continuous Conveyor Drying Process | Panels or substrates move through the dryer using a stainless steel wire-mesh conveyor system, ensuring smooth transport and uniform exposure to heat and airflow throughout the tunnel. |
| Infrared Heating System | High-efficiency infrared emitters installed along the tunnel walls and ceiling generate radiant heat that penetrates coatings and accelerates evaporation and curing. |
| Forced Hot Air Circulation | Industrial high-capacity fans circulate heated air across the chamber, ensuring uniform thermal exposure and preventing uneven drying across the substrate surface. |
| Adjustable Conveyor Speed | Conveyor speed can be precisely controlled to adjust dwell time inside the drying chamber according to coating thickness, substrate type, and production requirements. |
| Modular Tunnel Length Options | The dryer is available in multiple tunnel lengths, allowing configuration based on required drying capacity and production line layout. |
| Uniform Temperature Distribution | Advanced airflow management ensures consistent temperature throughout the chamber, helping prevent coating defects such as haze, bubbling, or poor adhesion. |
| High Production Capacity | Capable of processing up to 1,200 m² per hour, depending on substrate dimensions, coating thickness, and conveyor speed. |
| Industrial-Grade Construction | Heavy-duty steel structure with thermal insulation and high-temperature resistant components designed for continuous industrial operation and long equipment lifespan. |
Applications
The hot air dryer is suitable for drying or curing substrates coated with waterborne or solvent-based finishes, including:
• Wood panels
• MDF boards
• Plywood sheets
• Furniture components
• Cabinet doors
• Decorative panels
• Flooring boards
• Laminated surfaces
• Composite materials
• Industrial coated substrates
The system is particularly effective for waterborne stain and coating applications requiring controlled drying conditions
Conveyor System
The conveyor transports substrates through the drying tunnel at a controlled speed, determining the dwell time or exposure period inside the heating chamber.
Conveyor Characteristics
• Stainless steel wire mesh belt
• High-temperature resistant structure
• Smooth continuous transport
• Adjustable speed control
Optional variable frequency drive (VFD) for precise speed regulation
Drying Technology
The system combines two complementary drying technologies to maximize efficiency and coating performance. Infrared emitters provide direct radiant heat to the coated surface, accelerating the evaporation of water or solvents, while a forced convection airflow system circulates heated air throughout the chamber to remove moisture and maintain a stable temperature environment. This combined drying process enables significantly faster drying compared to ambient air methods, ensures uniform curing across the entire panel surface, reduces production cycle time, and improves coating hardness, durability, gloss consistency, and color stability.
Advantages
The system improves production throughput while maintaining consistent drying quality across all panels, reducing the risk of coating defects and ensuring reliable results in continuous industrial operations. Its energy-efficient thermal transfer and low-maintenance industrial design support stable performance in high-volume production lines. The controlled drying environment also helps prevent common finishing issues such as moisture haze (blushing), orange peel texture, surface bubbling, uneven gloss levels, and poor adhesion.
Integration into Finishing Lines
The dryer can be integrated with a wide range of industrial finishing equipment, including spray coating machines, roll coating systems, UV coating lines, sanding machines, brush polishing systems, and automated panel handling systems. This flexibility allows the unit to operate either as a stand-alone drying solution or as part of a fully automated coating and finishing production line, supporting continuous processing and seamless workflow integration in industrial manufacturing environments.
Industrial Performance
Designed for continuous industrial use, the hot air dryer provides:
• Stable drying conditions
• High thermal efficiency
• Reliable curing performance
• Long equipment lifespan
This makes it ideal for high-volume manufacturing environments where coating quality, process stability, and productivity are critical.
Technical Specifications
| Model | 24 in Model | 39 in Model | 51 in Model |
|---|---|---|---|
| Working Width | 24 in (600 mm) | 39 in (1000 mm) | 51 in (1300 mm) |
| Lamp Length | 24.8 in (630 mm) | 40.2 in (1020 mm) | 56.3 in (1430 mm) |
| Unit Power | 1.5 kW | 2.2 kW | 3 kW |
| Machine Length | 13 ft/26 ft/ 33 ft/ 39 ft | 13 ft/26 ft/ 33 ft/ 39 ft | 13 ft/26 ft/ 33 ft/ 39 ft |
| Machine Width | 35 in (900 mm) | 49 in (1250 mm) | 63 in (1600 mm) |
| Machine Height | 43.3 in (1100 mm) | 43.3 in (1100 mm) | 43.3 in (1100 mm) |
Conveyor System
The dryer is equipped with a stainless steel wire mesh conveyor belt designed for continuous industrial operation and high-temperature environments. As substrates move through the drying tunnel, the combination of conveyor speed and tunnel length determines the dwell time, or exposure period, ensuring each panel receives the precise amount of heat required for proper drying or curing. The system can also be equipped with an optional variable frequency drive (VFD), allowing operators to accurately control and adjust conveyor speed according to coating thickness, substrate type, and production requirements.
Electrical Parts
The system is operated through an integrated industrial control panel, where operators can set and monitor temperature zones, conveyor speed, and power levels to match specific production parameters. Electric heating elements generate the required thermal energy inside the tunnel, while high-capacity industrial fans forcefully circulate the heated air throughout the chamber. Strategically positioned airflow nozzles distribute the hot air evenly across the entire surface of each board on the conveyor, ensuring uniform drying and consistent finishing quality across all processed substrates.
We can customize these systems to fit your needs exactly. Whether you need more power or a wider roller coater, we would love to help you with your system. Please contact us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
