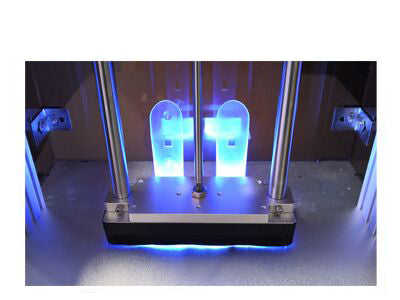

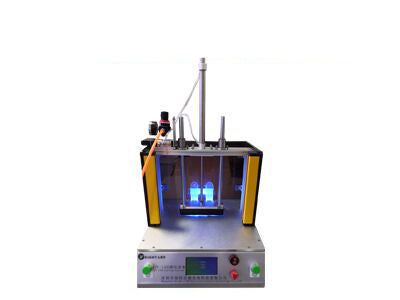

The Customizable UV LED Curing & Bonding System for Plastic Parts is a curing machine explicitly designed for working on plastic. Completely customizable for the job at hand this system comes regularly with a UV LED Array available in 365nm, 385nm, 395nm & 405nm and has an effective curing area of 135x80 mm

Features:

  • Specifically designed for curing & bonding plastic, getting more efficient and reliable results
  • Seamless bonding and UV curing in one system
  • The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • Photoelectric conversation rate and concentrated energy output make it energy saving
  • UV LED cold light source ensures your material's composition won’t be harmed during curing process
  • Green friendly, produces no ozone

This curing and bonding system is a revolutionary machine that seamlessly bonds plastic, getting cleaner results in less time and effort. This money-saving device is completely customizable to meet the requirements needed for each and every job.

The array of wavelengths offered ensure you find the ideal device for the UV Material at hand, this system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

  • Electric power: 252W
  • Optic power: 1200mW/cm²
  • Curing area: 135*80mm
  • Cooling method: air cooling

    *Technical Specifications available at the moment apply to the specified wavelengths.

      We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
