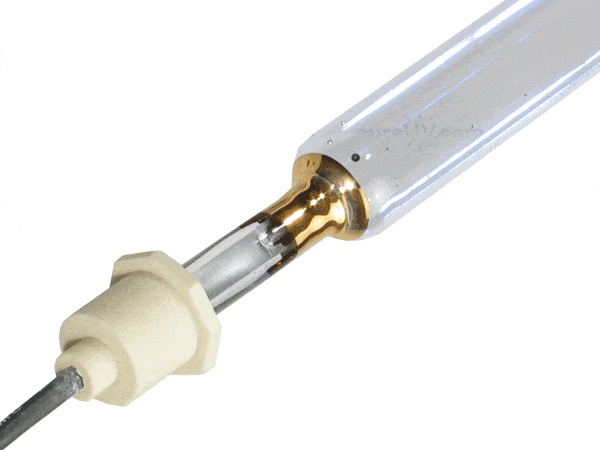

UV Curing Lamp - Delle Vedove Part # 952D011000 UV Curing Lamp Bulb
UV Curing Lamp - Delle Vedove Part # 952D011000 UV Curing Lamp Bulb UV Curing Lamp - Delle Vedove Part # 952D011000 UV Curing Lamp Bulb

Delle Vedove/Cefla Part # 601100284 UV Curing Lamp Bulb replaces 952D011000
Free Gift

SKU:

UV Bulb Price Match Guarantee
$200.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 17.63 Inch Total Length (end to end)

The Delle Vedove Part # 952D011000 UV Curing Lamp Bulb has a total length of 17.63 inches and an arc length of 12 inches. The lamp bulb is filled with mercury and exceeds the OEM standards of UV bulb performance. The lamp bulb is compatible with the following part numbers:

  • 952D011000
  • H12D5F1

The process of UV curing is a method where high-intensity UV rays helps in immediately drying or curing coatings or inks in the printer. The process of UV curing involves light instead of heat. This enables the ink to dry and harden in an instant. UV curing is a better option to traditional curing uses heat as the traditional method uses solvent and contains a risk of environmental pollution. The result of UV curing is higher productivity, lower production costs and better printing quality.

Technical Specifications:

  • Output Power: 500 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 Inches
  • Overall Length: 17.63 Inches

Spectral Output of a Mercury UV Lamp

Spectral Output of a Mercury UV Lamp (PDF)

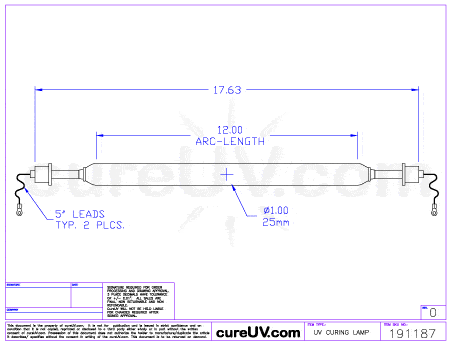

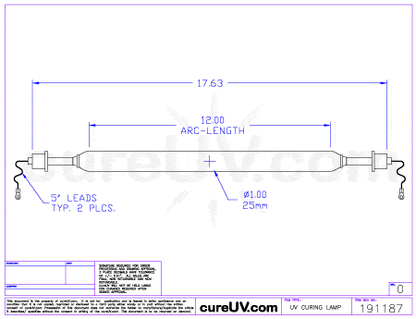

Delle Vedove compatible UV lamp - part number 952D011000 - Drawing (PDF)

Delle Vedove compatible UV Lamp - Part Number 952D011000 drawing

*All lamps listed are compatible brand UV products. We do not sell Delle Vedove brand lamps. All Delle Vedove brand names, trademarks and logos are property of Delle Vedove.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
