UV Curing Lamp - Durst Rho 205/16 LB2099042 UV Curing Lamp Bulb
UV Curing Lamp - Durst Rho 205/16 LB2099042 UV Curing Lamp Bulb UV Curing Lamp - Durst Rho 205/16 LB2099042 UV Curing Lamp Bulb

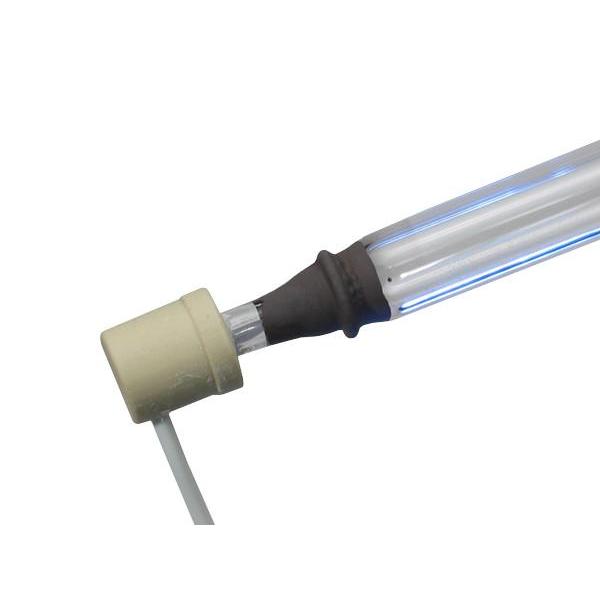

Durst Rho 205/16 LB2099042 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$213.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 12 Inch Arc Length - 15.5 Inch Total Length (end to end)

CureUV’s Durst Rho 205/16 LB2099042 UV Curing Lamp Bulb is a guaranteed 100% compatible replacement UV lamp that is filled with mercury and has an arc length of 12". The lamp has an overall length of 15.5" and an output power of 200WPI. The replacement light bulb is 100% compatible to the Durst Rho flatbed printer with the following part numbers:

  • 205/16
  • 205-16
  • A31664
  • A31664AS
  • LB2099042
  • H12K3F1
  • S6512A14CSD

With CureUV you can find all the direct replacement UV parts for Durst Rho large format inkjet printers. We supply not only UV lamps but also a wide selection of quartz glass plate, dichroic reflectors that are 100% compatible with Durst Rho printer systems. The Durst Rho printers are used widely in retail POP and POS signs, out-of home and transit advertising, exhibits, event decorations, banners, packaging and industrial textile finishing.

The UV lamp from CureUV is subject to strict quality control measures and gives you the best printing experience you need. We recommended that you replace the UV bulb regularly to ensure better working of your printer and to achieve greater productivity.

UV curing makes use of high-intensity UV rays that instantly dries and cures inks and coatings in the printer. The UV lamp bulb uses light instead of heat that enables the ink to dry and harden instantly. UV curing is considered a better alternative to traditional solvent based curing where there is always a risk of environmental pollution.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 12 Inches
  • Overall Length: 15.5 Inches
  • Output Power: 200 WPI

UV Spectral Output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

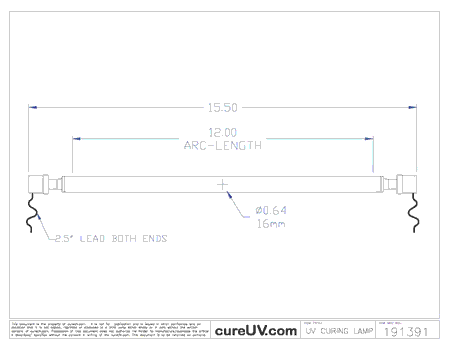

Durst Rho 205/16 Compatible UV lamp - Drawing (PDF)

Durst Rho 205/16 Compatible Inkjet Printer UV Curing Lamp - Part Number A31664, LB2099042 drawing

*All lamps listed are compatible brand UV products. We do not sell Durst Rho brand lamps. All Durst Rho brand names, trademarks and logos are property of Durst Rho.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
