UV Curing Lamp - Eltosch Part # 12500358 UV Curing Lamp Bulb
UV Curing Lamp - Eltosch Part # 12500358 UV Curing Lamp Bulb UV Curing Lamp - Eltosch Part # 12500358 UV Curing Lamp Bulb

Eltosch Part # 12500358 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$250.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 30 Inch Arc Length - 34.63 Inch Total Length (end to end)

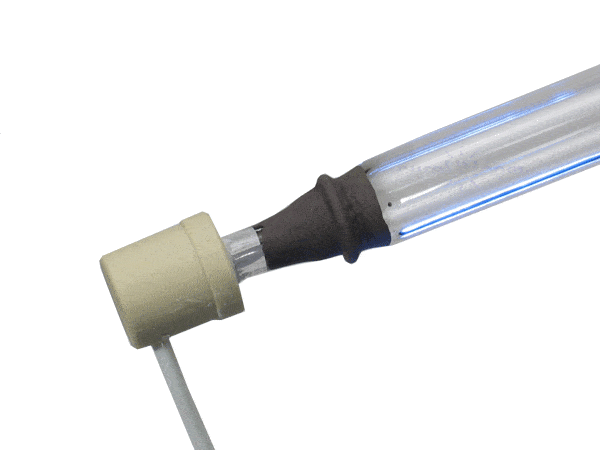

The Eltosch Part # 12500358 UV Curing Lamp Bulb is a 100% compatible guaranteed UV curing lamp bulb that is filled with mercury. The lamp bulb has an arc length of 30 inches and an overall length of 34.63 inches. The lamp bulb has output wattage of 400 WPI.

The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

  • Output Power: 400 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 30 Inches
  • Overall Length: 34.63 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

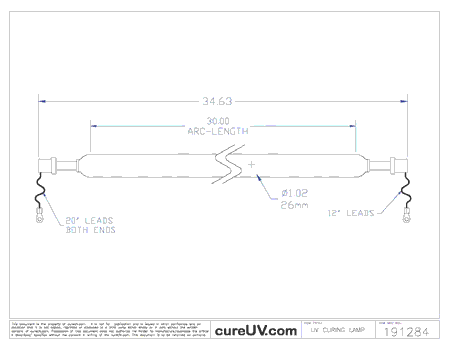

30In. Arc UV Lamp 400 WPI - Eltosch UV System - Pt # 12500358 (PDF)

30In. Arc UV Lamp 400 WPI - Eltosch UV System - Pt # 12500358

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
