UV Curing Lamp - Eltosch Part # 12500392 UV Curing Lamp Bulb
UV Curing Lamp - Eltosch Part # 12500392 UV Curing Lamp Bulb UV Curing Lamp - Eltosch Part # 12500392 UV Curing Lamp Bulb

Eltosch Part # 12500392 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$320.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 30 Inch Arc Length

The Eltosch Part # 12500392 UV Curing Lamp Bulb is a 100% guaranteed compatible replacement lamp bulb that has an arc length of 30.75 inches and a total length of 34.63 inches. The 500 WPI UV replacement lamp bulb exceeds OEM standards of UV curing bulb performance. The lamp bulb is compatible to the Eltosch UV Systems and works well with the following part numbers:

  • 12500392
  • UVH7828

The UV curing lamp provides OEM quality and enhanced lamp life. We provide UV lamps for printers in different arc lengths and spectral fills at a cost-effective rate. Further, our lamps provide better UV output, are manufactured in the USA and have a predictable lifespan.

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Technical Specifications:

  • Arc Length: 30.75 inches
  • Total Length: 34.63 inches
  • Tube Diameter: 25.5 mm
  • Wattage Per Inch: 500 WPI

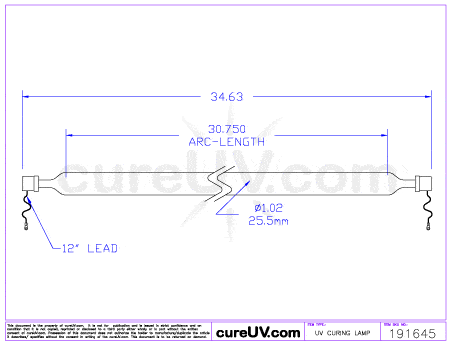

Eltosch UV Lamp - OEM Part Number 12500392 drawing
Eltosch 30 inch UV lamp (500 WPI) - OEM part number 12500392 - Drawing (PDF)



Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
