UV Curing Lamp - Fujifilm Uvistar UVR 3532 UV Curing Lamp Bulb - Part # A12923N

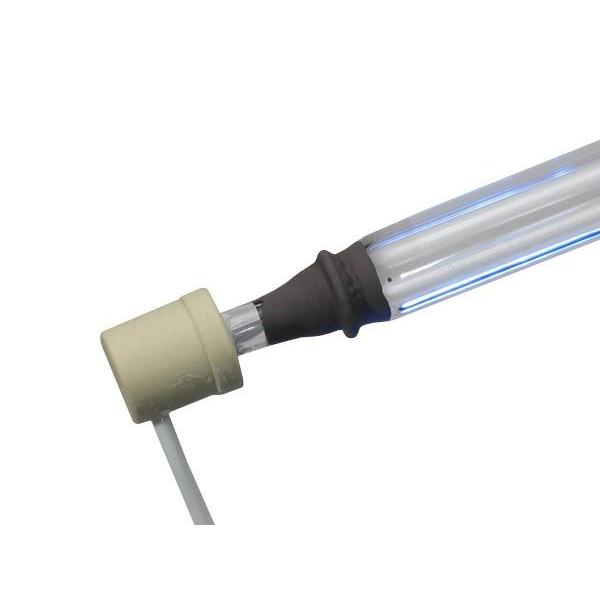

Fujifilm Uvistar UVR 3532 UV Curing Lamp Bulb - Part # A12923N
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 7 Inch Arc Length - 10.43 Inch Total Length (end to end)

The Fujifilm Uvistar UVR 3532 UV Curing Lamp Bulb - Part # A12923N is a guaranteed 100% compatible replacement UV lamp that has a 7" arc length and a total length of 10.43". Filled with mercury, the curing lamp bulb is compatible to the Fujifilm UV flatbed printer model Uvistar UVR with the following part numbers:

  • Uvistar 3532
  • Uvstar 3532
  • UV star 3532
  • UVI star 3532
  • UVR 3532
  • UVR3532
  • UVR-3532
  • UVR/3532
  • A12923N
  • A12923 N
  • A12923-N
  • H07K4F1
  • UVL/3407
  • UVL3407
  • UVL 3407
  • UVL-3407

The replacement lamp exceeds OEM standards and it provides excellent performance. The UV curing method is fast replacing the traditional methods of print drying. The replacement lamp uses light instead of heat and has various advantages. The use of light enables the ink to harden and dry instantly. This method also does not make use of solvents unlike drying methods, where the risk of pollution due to evaporation of solvents is greater. In UV curing method there is better productivity, lower production costs and higher quality printing. The quartz plate in the UV replacement lamp protects the lamp from debris and works as a filter between the lamp and the curing system. The cost effective lamp is manufactured in the USA and is a quality solution with a predictable lifespan. CureUV provides lamps for printers in different arc lengths and spectral fills.

Technical Specification:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 7 inches
  • Total Overall Length: 10.43 inches
  • Tube Diameter: 0.9 inches (22.86mm)
  • Watts Per Inch: 400 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Vapor Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgFujifilm Uvistar UVR 3532 UV Curing Lamp Bulb - Part # A12923N

*All UV lamps listed are compatible brand UV products. We do not sell Fujifilm brand UV lamps. All Fujifilm brand names, trademarks and logos are property of Fujifilm.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
