UV Curing Lamp - Fujifilm Uvistar UVR 5032 UV Curing Lamp Bulb - Part # A12923N

Fujifilm Uvistar UVR 5032 UV Curing Lamp Bulb - Part # A12923N
Free Gift

SKU:

UV Bulb Price Match Guarantee
$225.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 7 Inch Arc Length - 10.43 Inch Total Length (end to end)

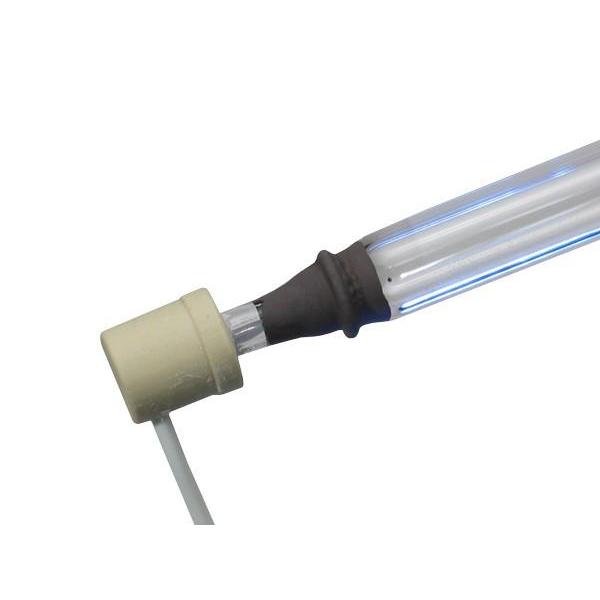

The Fujifilm Uvistar UVR 5032 UV Curing Lamp Bulb - Part # A12923N is a compatible replacement UV lamp with an arc length of 7" and a total length of 10.43". Filled with mercury the UV replacement lamp exceeds OEM standards of bulb performance. The curing lamp is compatible to the Fujifilm Uvistar UVR 5032 UV flatbed printer with the following part number:

  • A12923N

Compared to the traditional curing methods, the UV curing lamp bulb is an eco-friendly, cost-effective and an economical option. Manufactured in the USA, the UV printer lamp bulb has a predictable life span. It helps in instantly drying of coatings of inks and signs. The quartz plate present in the lamp prevents grit, dirt and contaminants from building up on the lamp. When the bulb hour rises, the lamp tends to produce less UV light and more heat. When the heat is intense it results in the print media bulging and also causes damage to the shutters and reflectors in the lamp housing. This could lead to high repairing costs and bad output. Replacing with the Fujifilm Uvistar UVR 5032 UV Curing Lamp Bulb - Part # A12923N from CureUV keeps your printer well maintained.

Technical Specification:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 7 inches
  • Total Overall Length: 10.43 inches
  • Tube Diameter: 0.9 inches (22.86mm)
  • Watts Per Inch: 400 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output - Mercury Vapor Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgFujifilm Uvistar UVR 5032 UV Curing Lamp Bulb - Part # A12923N

*All UV lamps listed are compatible brand UV products. We do not sell Fujifilm brand UV lamps. All Fujifilm brand names, trademarks and logos are property of Fujifilm.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
