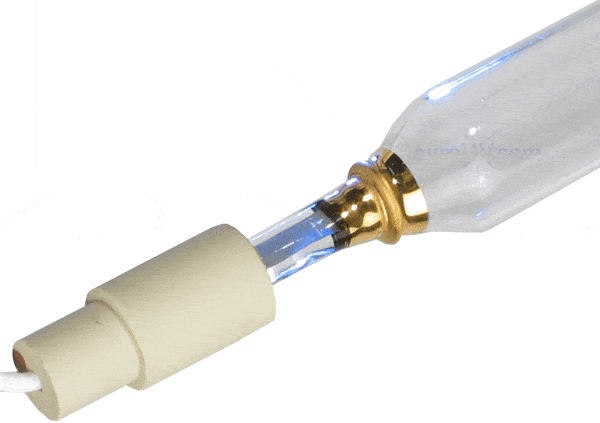

UV Curing Lamp - Gallus Part # 36610 UV Curing Lamp Bulb
UV Curing Lamp - Gallus Part # 36610 UV Curing Lamp Bulb UV Curing Lamp - Gallus Part # 36610 UV Curing Lamp Bulb

Gallus Part # 36610 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$165.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 8 Inch Arc Length

The Gallus Part # 36610 UV Curing Lamp Bulb is a 100% compatible replacement UV lamp that has an arc length of 8 inches. The replacement lamp bulb works well for the Gallus UV systems for the following part numbers:

  • 36610
  • R160
  • AM5233X
  • 017695

The UV lamp work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

The demand for UV curing bulbs is increasing, mainly in the printing industry as the light bulbs help in instantly drying printing inks. Tradition methods of curing used solvents and heat, which meant that harmful volatile gases evaporated. Curing using UV method involves no heat and solvents, which makes this an eco-friendly option. The UV lamp is subjected to strict quality control measures.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 8 inches
  • Overall Length: 13 inches
  • Wattage Per Inch: 300 WPI

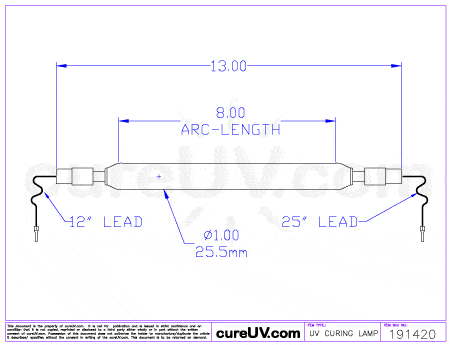

Gallus 8 inch UV lamp (300 WPI) - OEM part number 36610 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
