UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb
UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb UV Curing Lamp - Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb

Gandinnovations Jeti 3150 397-000175 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$263.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Iron Wavelength - 7 Inch Arc Length - 10.39 Inch Total Length (end to end)

The Gandi Innovations Jeti 3150 397-000175 UV Curing Lamp Bulb is a 100% compatible replacement bulb that has an arc length of 7" and a total length of 10.39". The iron-filled curing lamp bulb has an output power of 400 WPI and is compatible to the Gandi Innovations Jeti 3150 UV Flatbed Printer. The curing lamp bulb works well for the following part numbers:

  • Gandi Jeti 3150
  • 397000175
  • 397-000175
  • NR33515N
  • A33515N
  • Jeti 3150
  • 3150
  • F07K4F2

System Application

  • Agfa - Jeti 2030 X-2 UV Flatbed
  • Agfa - Jeti 3150 X-2 UV Flatbed
  • Agfa - Jeti 3324 Solvent RTR

The UV curing lamp bulb is a key component of the UV curing lamp. CureUV’s lamp bulbs are intended to improve the intensity of UV curing and also to reduce the intensity degradation as time passes. The curing lamp is designed in such a way that the spectral output and intensity of the lamp bulb ensure the capability to dry or cure UV adhesives and coatings. The iron filled lamp bulb harmonizes with the cure chemistry of the adhesives. The quartz glass plate protects lamps from debris and works as a filter between the lamp and the curing system. The plate prevents grit, dirt and contaminants from building up.

Technical Specifications:

  • Fill: Iron
  • Quartz: Standard
  • Arc Length: 7 Inches
  • Overall Length: 10.39 Inches
  • Output Power: 400 WPI

UV spectral output of an iron lamp

UV Spectral Output of an Iron Lamp (PDF)

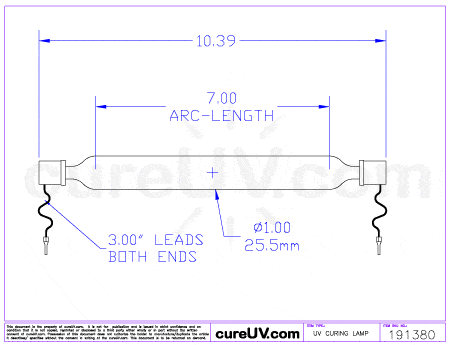

Gandi Innovations Jeti 3150 Compatible UV lamp - Drawing (PDF)

Gandi Innovations Jeti 3150 Compatible Inkjet Printer UV Curing Lamp drawing

*All lamps listed are compatible brand UV products. We do not sell Gandi Innovations brand lamps. All Gandi Innovations brand names, trademarks and logos are property of Gandi Innovations.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
