General Electric GPH793T5L/4P Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$49.00

4 Pin on a Single End - 40 Watt Germicidal Air, Surface & Water Treatment Bulb

Our General Electric GPH793T5L/4P Replacement UVC Light Bulb has a total length of 31.22" and wattage of 40 Watts. The UVC light bulb has a peak output of 253.7nm and a 4 pin on a single end base style. The non ozone glass type and ceramic base material makes this one of the most sought after replacement bulbs in the market.

The UVC light bulb helps in sterilizing and killing yeasts, bacteria, protozoa and virus. Many people prefer the UV method of water treatment as it makes use of UV light at a designated wavelength to disrupt the DNA of microorganisms. The light bulb is compatible with germicidal OEM water disinfection filters, UV water purifiers and sanitizers and is capable of destroying 99.9% harmful organisms in water. This method may effectively help in destroying the genetics of microorganisms but may not alter the pH, taste or chemistry of water in the process. This method is a good option against chemicals such as chlorine and their byproducts. The replacement UVC bulb provides 12 months worry-free operation after which its germ destroying capabilities reduces.

The UVC light bulb is compatible with the following system models and part numbers:

General Electric Part Number:

  • GPH793T5L/4P

General Electric System Model:

  • GE 46630

Technical Specifications:

  • Total Length: 31.22 inches (793mm)
  • Arc Length: 28.74 inches (730mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 425mA
  • Lamp Voltage: 113V
  • Lamp Wattage: 40 Watts
  • Output UVC Watts: 13.5 Watts
  • Output uW/cm^2 @ 1m: 125
  • Peak UV Output: 253.7nm
  • Glass Type: Non Ozone
  • Base Style: 4 pin on a single end
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Offices
  • Ships

Spectral Output of Germicidal UVC Light Bulbs

Drawing of Replacement UVC Bulb Item # 194669 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs (PDF)

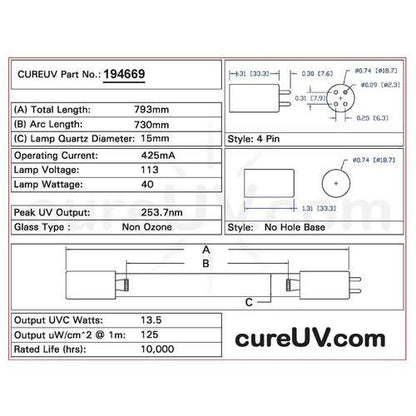

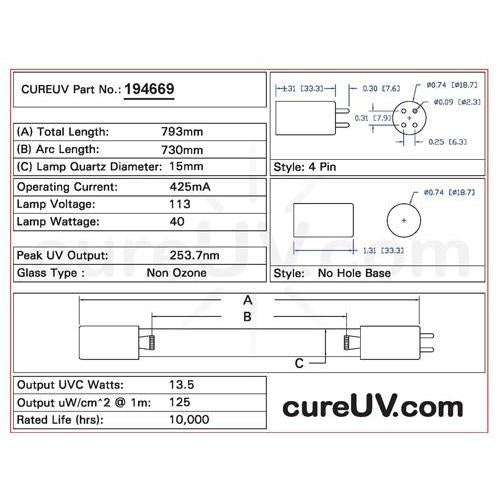

Drawing of General Electric GPH793T5L/4P UVC Bulb - item # 194669

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell General Electric brand UVC bulbs. All General Electric brand names, trademarks, and logos are property of General Electric.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
