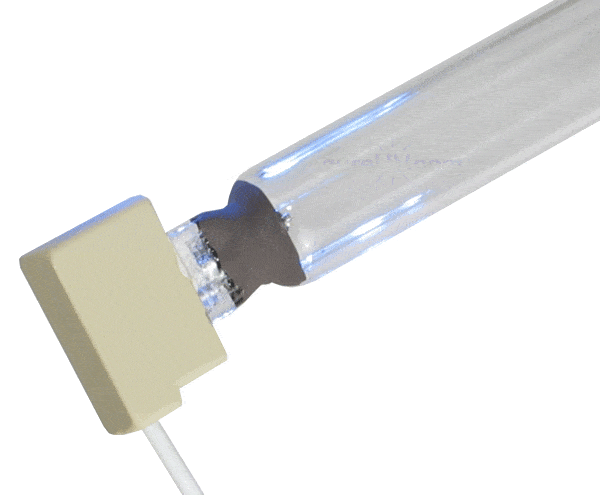

UV Curing Lamp - GEW Part # 26122 UV Curing Lamp Bulb
UV Curing Lamp - GEW Part # 26122 UV Curing Lamp Bulb UV Curing Lamp - GEW Part # 26122 UV Curing Lamp Bulb

GEW Part # 26122 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 12 Inch Arc Length

The Gew Part # 26122 UV Curing Lamp Bulb is a guaranteed compatible replacement lamp bulb that has an arc length of 12 inches and wattage of 400 WPI. The UV replacement lamp exceeds OEM standards of bulb curing performance and is compatible to the GEW UV systems to the following part numbers:

  • Albatross H12GW4F1
  • 26122
  • S6412A45C3

The lamp bulb is considered one of the high quality and highly effective UV emitters in the market. The lamp works well to dry and cure inks and coating in signs and graphics. The lamp contains a quartz plate that prevents debris from falling on the lamp by working as filler between the lamp and the curing system.

Used extensively in the printing industry to cure inks and coatings, the UV lamps resist smudges. It is environmental friendly as there is no process of solvent evaporation as conventional drying methods need. The result is higher printing quality, greater productivity and lower production costs.

Technical Specifications:

  • Quartz: Standard
  • Overall Length: 15.88 inches
  • Arc Length: 12 inches
  • Tube Diameter: 21.5mm

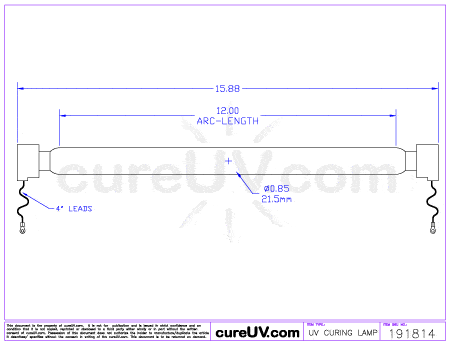

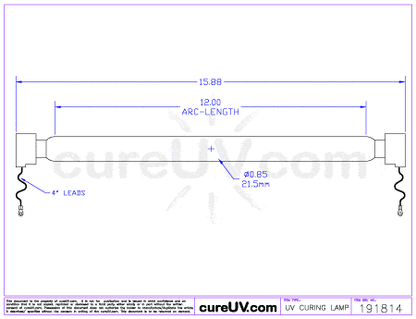

GEW UV Lamp - OEM Part Number 26122 drawing

GEW 12 inch UV lamp (400 WPI) - OEM part number 26122 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
