UV Curing Lamp - GEW Part # 16594 UV Curing Lamp Bulb
UV Curing Lamp - GEW Part # 16594 UV Curing Lamp Bulb UV Curing Lamp - GEW Part # 16594 UV Curing Lamp Bulb

GEW Part # 16594 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$238.99 $265.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The Gew Part # 16594 UV Curing Lamp Bulb is a 100% guaranteed UV lamp that has an arc length of 17.50 inches and a total length of 20.88 inches. The 500 WPI lamp bulb exceeds OEM standards of bulb performance and is fully compatible to the GEW UV systems. The lamp bulb works well for the following part numbers and machine models:

  • 16594
  • Nilpeter
  • 7518A45C

The replacement lamp enables the drying of inks and coatings in signs and graphics. The curing lamp consists of quartz glass plate that helps in protecting the lamp from debris and works as a filler between the lamp and the curing system. The quartz plate prevents dirt, grit and contaminants from building up.

The UV curing bulb is used in the printing industry to help in curing inks and coatings. UV curing lamps are necessary for the drying system and are a better option to infra red drying as it resists smudges. UV Curing is an environmentally friendly process and also reduces the use of energy.

Technical Specifications:

  • Quartz: Standard
  • Arc Length: 17.50 inches
  • Total Overall Length: 20.88 inches
  • Wattage Per Inch: 500 WPI

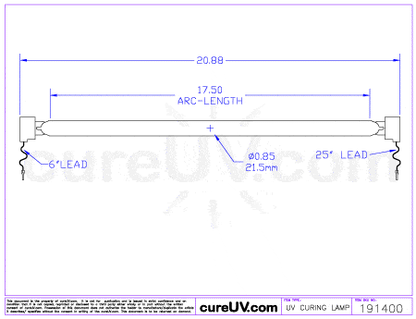

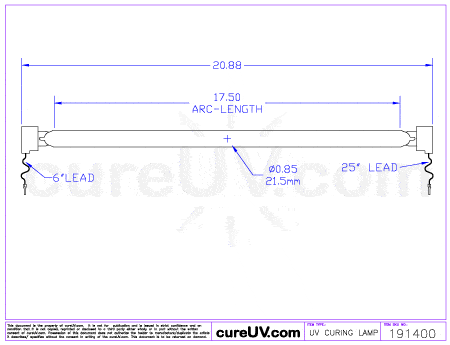

GEW UV Lamp - OEM Part Number 16594 drawing

GEW 18 inch UV lamp (500 WPI) - OEM part number 16594 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
