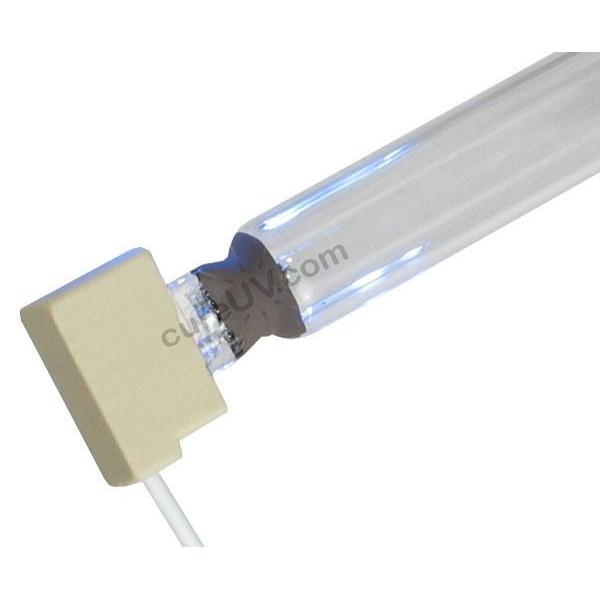

UV Curing Lamp - GEW Part # VCP 15 UV Curing Lamp Bulb

GEW Part # VCP 15 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 6 Inch Arc Length - 9 Inch Total Length (end to end)

The Gew Part # VCP 15 UV Curing Lamp Bulb is filled with mercury and has a total length of 9 inches and an arc length of 6 inches. The UV curing lamp bulb has 400/500 WPI and exceeds OEM standards of UV curing performance. The lamp bulb is 100% compatible to the GEW UV systems and works well with the following machine models and part numbers:

  • VCP 15
  • H06GW4F1
  • UVL/2206

The replacement lamp enables the drying of inks and coatings in signs and graphics. The curing lamp consists of quartz glass plate that helps in protecting the lamp from debris and works as a filler between the lamp and the curing system. The quartz plate prevents dirt, grit and contaminants from building up.

The UV curing bulb is used in the printing industry to help in curing inks and coatings. UV curing lamps are necessary for the drying system and are a better option to infra red drying as it resists smudges. UV Curing is an environmentally friendly process and also reduces the use of energy.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 6 inches
  • Total Length (TOL): 9 inches
  • Watts Per Inch (WPI): 400/500 WPI

Ultraviolet (UV) spectral output of a mercury vapor lamp

Ultraviolet (UV) Spectral Output of a Mercury Vapor Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.orgGEW VCP 15 UV Curing Lamp

*All UV lamps listed are compatible brand UV products. We do not sell GEW brand UV lamps. All GEW brand names, trademarks and logos are property of GEW.

*Warning: Ultraviolet UV light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.

Customer Reviews

Be the first to write a review


Ask a Question
  • We have Gew ebrick UV Cure lamp# 572397 is the number on the VCP 15 the same?

    You would need the GEW 19645 lamp.
