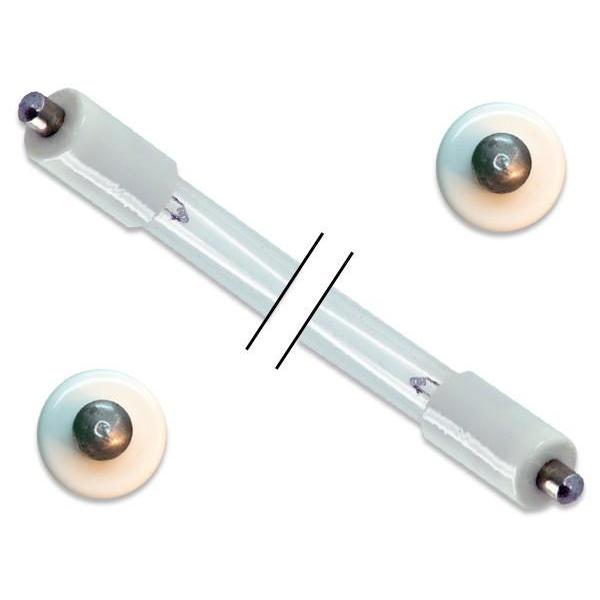

Single Pin Double Ended - 75 Watt Germicidal Water Treatment Bulb
The Glasco UV 1351 Replacement UVC Light Bulb is a single pin double ended light bulb that has lamp wattage of 75 Watts. The UVC light bulb has a total length of 61.22" and an arc length of 58.66". The light bulb has a peak output of 253.7nm that is designed to kill the microorganisms present in water. The replacement bulb has to be replaced annually even if it continues to emit light. With non ozone glass type and made out of ceramic material, the UVC light bulb is designed for use with the following UVC system and part numbers:
The UVC light technology sanitizes and kills 99.9% microorganisms in water and is best used in UV filters, purifiers and sanitizers. The UV purification system is capable of protecting you from waterborne bacteria, molds, viruses and other pathogenic microorganisms such as giardia and cryptosporidium. People believe that this method of water purification is a cost effective way of protecting water from contaminants.
- Beverage Services and Processing
- Drinking Water
- Food Services and Processing
- Municipal Wastewater
- Pools, Spas, and Water Features
- Well Water
- Total Length: 61.22 inches (1555mm)
- Arc Length: 58.66 inches (1490mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 450mA
- Lamp Voltage: 175V
- Lamp Wattage: 75 Watts
- Output UVC Watts: 30 Watts
- Output uW/cm^2 @ 1m: 260
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: Single pin double ended
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Locations for use:

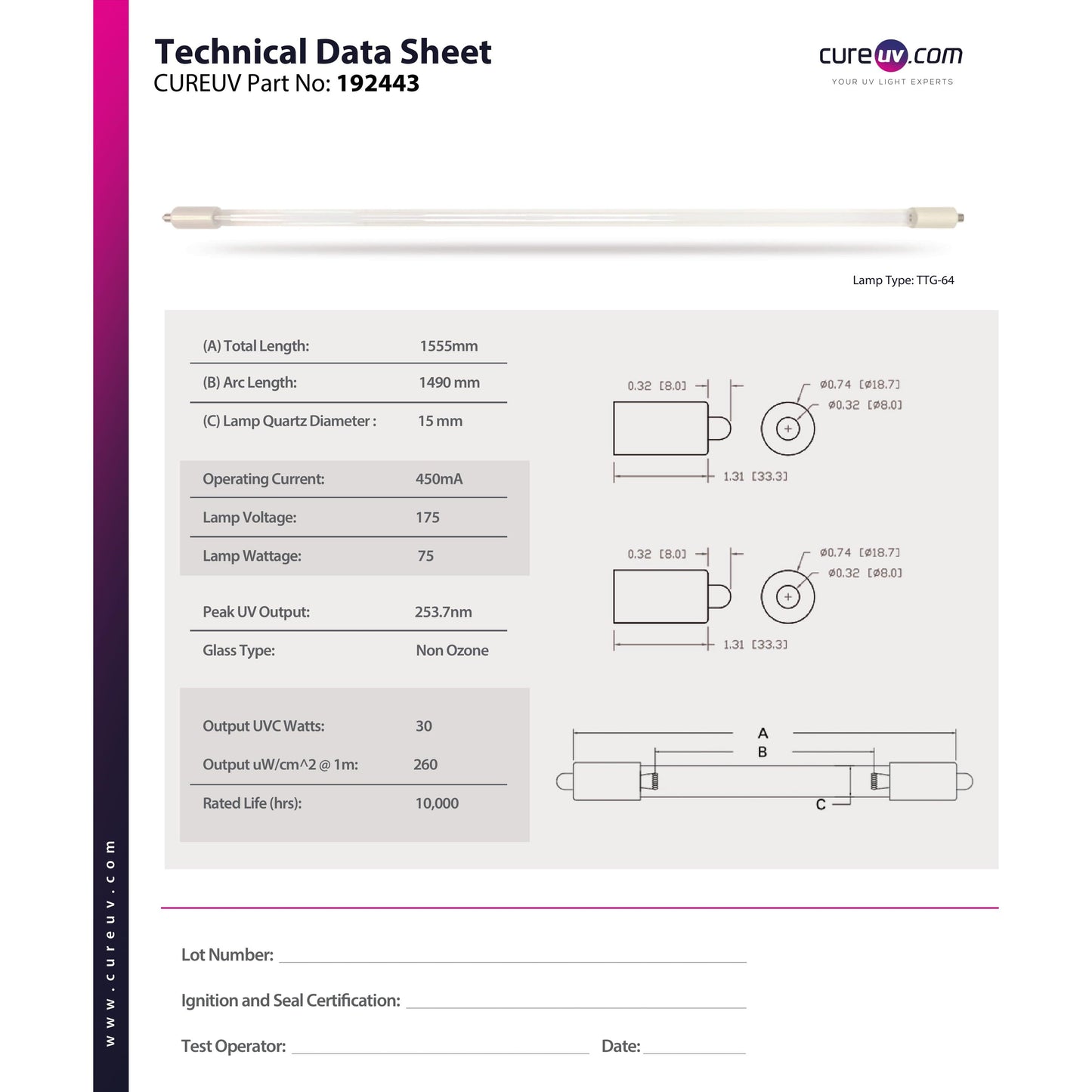

Technical Data Sheets:
Spectral Output of Germicidal UVC Light Bulbs (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Glasco UV brand UVC bulbs. All Glasco UV brand names, trademarks, and logos are property of Glasco UV.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
