Glasco UV 1851 Replacement UVC Light Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$60.25

Single Pin Double Ended - 75 Watt Germicidal Water Treatment Bulb

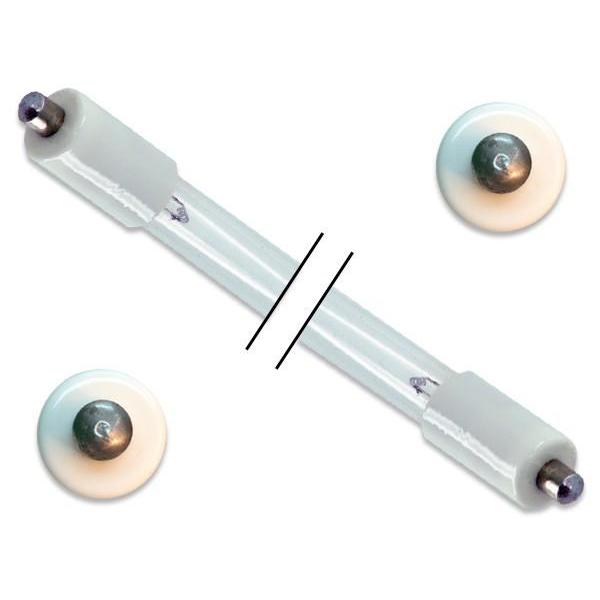

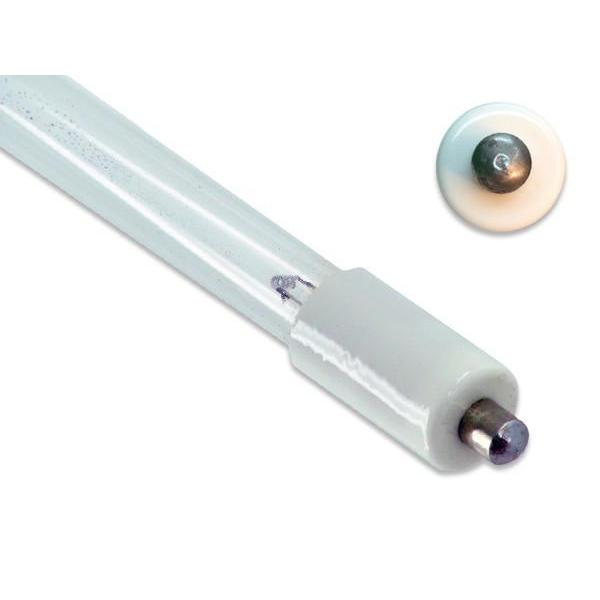

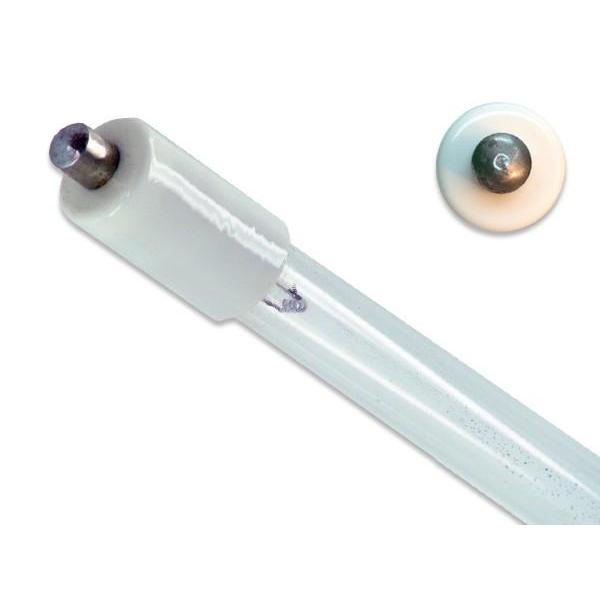

The Glasco UV 1851 Replacement UVC Light Bulb is a 75 Watt lamp bulb that is a single pin double ended water treatment bulb. The total length of the bulb is 61.22" and the arc length is 58.66". The UVC light bulb has a rated life of 10,000 hours after which CureUV highly recommends that you replace the lamp bulb even if it continues to emit light. The UVC bulb is compatible with the following system model:

  • 1851

The UVC light bulb has a peak output of 253.7 nm that effectively destroys the genetics of the microorganisms rendering them harmless. Pathogens such as giardia and cryptosporidium can be effectively destroyed with this method of purification. These cost effective purifiers and their lamps do not make use of chemicals and their by-products. This method of water purification does not alter the pH, taste or chemistry of water.

Technical Specifications:

  • Total Length: 61.22 inches (1555mm)
  • Arc Length: 58.66 inches (1490mm)
  • Lamp Quartz Diameter: 15mm
  • Operating Current: 450mA
  • Lamp Voltage: 170V
  • Lamp Wattage: 75 Watts
  • Output UVC Watts: 33 Watts
  • Output uW/cm^2 @ 1m: 240
  • Peak UV Output: 185nm
  • Glass Type: Ozone
  • Base Style: Single pin double ended
  • Base Material: Ceramic
  • Rated Life: Up to 10,000 hours

Common Applications

  • Aquaculture
  • Beverage Services and Processing
  • Drinking Water
  • Food Services and Processing
  • Municipal Wastewater
  • Pools, Spas, and Water Features
  • Well Water

Common Locations for use:

  • Factories
  • Farms
  • Homes
  • Hospitals
  • Hotels
  • Laboratories
  • Ships

Spectral Output of Germicidal UVC Light Bulbs Ozone

Drawing of Replacement UVC Bulb Item # 194555 (PDF)

UVC Light Disinfection Dosage Chart (PDF)

Spectral Output of Germicidal UVC Light Bulbs Ozone (PDF)

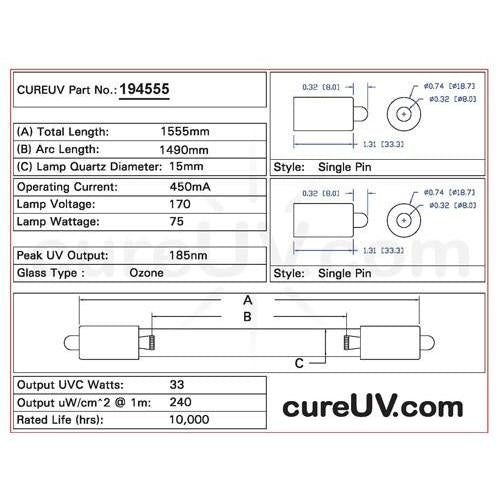

Drawing of Glasco UV 1851 UVC Bulb - item # 194555

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Glasco UV brand UVC bulbs. All Glasco UV brand names, trademarks, and logos are property of Glasco UV.

*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
