4 Pin on a Single End - 40 Watt Germicidal Water Treatment Bulb
Our Glasco UV L-050433 Replacement UVC Light Bulb has an arc length of 29.92" and a total length of 33.19". The light bulb has a rated life of 10,000 hours after which we recommend that you replace the light bulb even if it continues to emit light. The light bulb has a base style of four pin on a single end and is made using ceramic. With a peak output of 253.7nm, the replacement light bulb is capable of destroying the DNA of the microorganisms in water to render them harmless. This process is entirely a physical state and not a chemical one, which means that it is eco-friendly and at the same time extremely safe and effective. The process does not alter the pH and taste of water and is a non-chemical approach to disinfection.
With a 12 months worry-free operation, this UV-C bulb can destroy protozoa, yeast, bacteria and molds. It is suggested that you annually replace the light bulb for better efficiency and germ-controlling ability.
The UVC bulb is a compatible replacement for the following system models:
- Total Length: 33.19 inches (843mm)
- Arc Length: 29.92 inches (760mm)
- Lamp Quartz Diameter: 15mm
- Operating Current: 420mA
- Lamp Voltage: 120V
- Lamp Wattage: 40 Watts
- Output UVC Watts: 13.8 Watts
- Peak UV Output: 253.7nm
- Glass Type: Non Ozone
- Base Style: 4 pin on a single end
- Base Material: Ceramic
- Rated Life: Up to 10,000 hours
Common Locations for use:

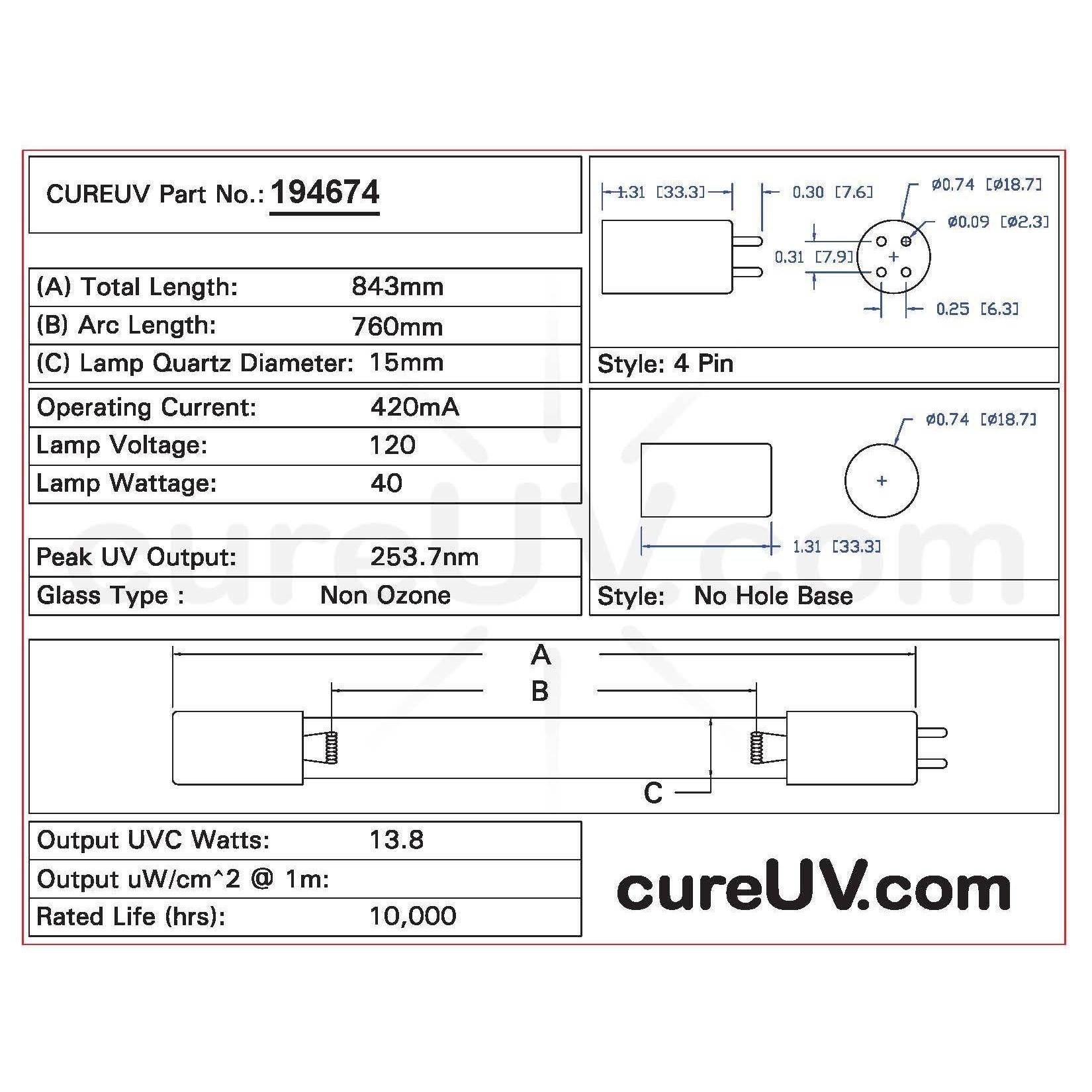

Drawing of Replacement UVC Bulb Item # 194674 (PDF)
UVC Light Disinfection Dosage Chart (PDF)
Spectral Output of Germicidal UVC Light Bulbs (PDF)
*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org
*All germicidal UVC light bulbs listed are compatible brand UV products. We do not sell Glasco UV brand UVC bulbs. All Glasco UV brand names, trademarks, and logos are property of Glasco UV.
*Warning: Ultraviolet UV-C light is harmful to your eyes and skin. Use proper safety gear.
Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
