UV Curing Lamp - Grafix Part # UVD1004003 UV Curing Lamp Bulb
UV Curing Lamp - Grafix Part # UVD1004003 UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # UVD1004003 UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # UVD1004003 UV Curing Lamp Bulb

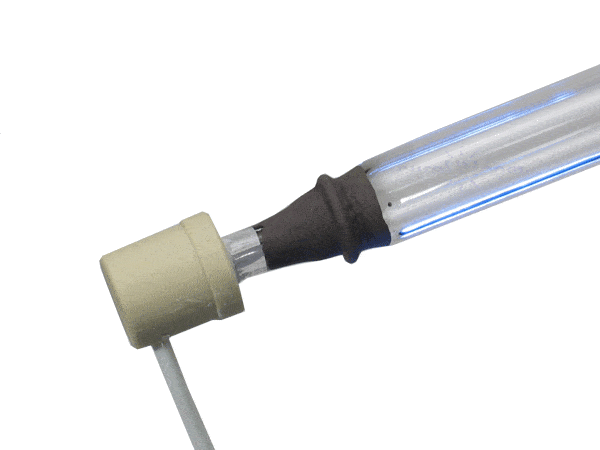

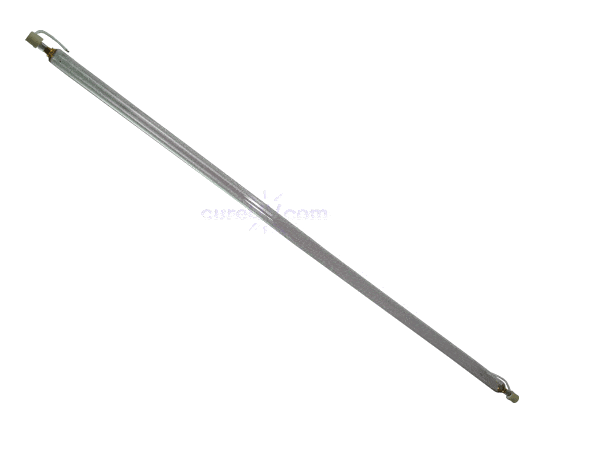

Grafix Part # UVD1004003 UV Curing Lamp Bulb
Free Gift

SKU: UV Bulb Price Match Guarantee
$439.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 42 Inch Arc Length

The Grafix Part # UVD1004003 UV Curing Lamp Bulb is a 100% guaranteed replacement UV bulb that has an arc length of 42 inches. With output wattage of 400 WPI, the lamp bulb exceeds OEM standards of UV curing bulb performance. The lamp bulb is compatible to the Grafix UV systems and is compatible to the following models and part numbers:

  • Mitsubishi
  • Man Rolland
  • Heidelberg
  • Grafix System
  • Interdeck
  • Offset
  • Sheetfed
  • UVD 1004003H
  • UVD 1004003
  • AM4753X
  • SLI207
  • UVD1004003

The process of UV curing is a method where high-intensity UV rays helps in immediately drying or curing coatings or inks in the printer. The process of UV curing involves light instead of heat. This enables the ink to dry and harden in an instant. UV curing is a better option to traditional curing uses heat as the traditional method uses solvent and contains a risk of environmental pollution. The result of UV curing is higher productivity, lower production costs and better printing quality.

Technical Specifications:

  • Fill: Lead
  • Quartz: Standard
  • Arc Length: 42 inches
  • Total Overall Length: 45 inches
  • Tube Diameter: 26mm
  • Watts Per Inch: 400 WPI

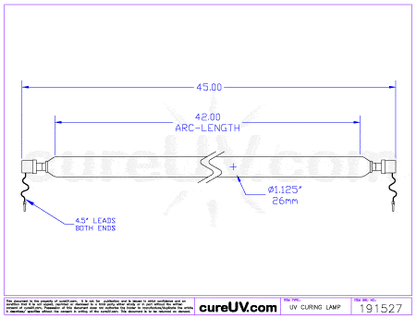

Grafix UV Lamp - OEM Part Number UVD1004003 drawing

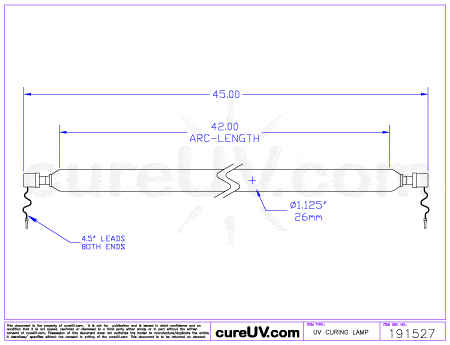

Grafix 42 inch UV lamp (400 WPI) - OEM part number UVD1004003 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
