UV Curing Lamp - Grafix Part # UVD10040010H UV Curing Lamp Bulb
UV Curing Lamp - Grafix Part # UVD10040010H UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # UVD10040010H UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # UVD10040010H UV Curing Lamp Bulb

Grafix Part # UVD10040010H UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$363.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 57 Inch Arc Length - 60.69 Inch Total Length (end to end)

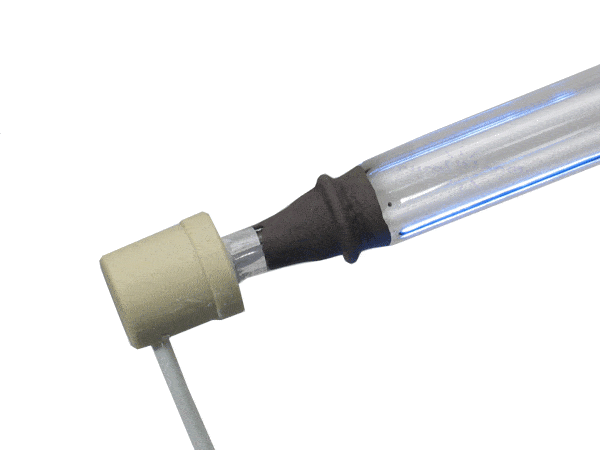

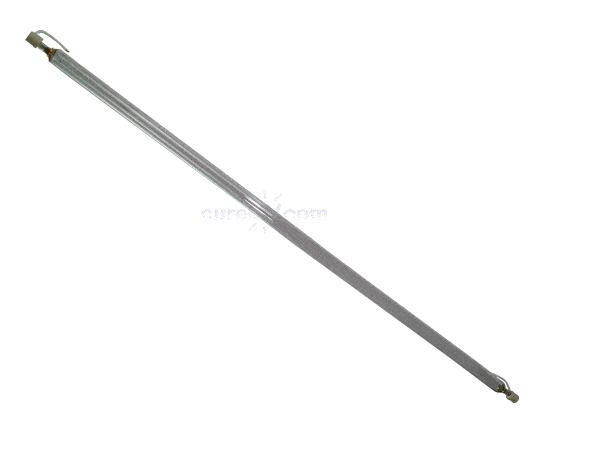

The Grafix Part # UVD10040010H UV Curing Lamp Bulb is a 100% guaranteed compatible replacement lamp bulb that has an arc length of 57 inches and an overall length of 60.69 inches. Filled with mercury, the lamp bulb is compatible to the following models and part numbers:

  • UVD10040010H
  • Mitsubishi
  • Man Rolland
  • Heidelberg
  • Grafix System
  • Innerdeck
  • Offset
  • Mann Rolland 900
  • UVD-1004-0010H
  • UVD10010010

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 57 Inches
  • Overall Length: 60.69 Inches

The mercury-filled UV lamp has an overall length of 8" and an arc length of 5" and is considered a high quality and highly effective UV emitter in the market. The lamp works well to dry and cure inks in signs and graphics. The replacement lamp consists of a quartz plate that prevents debris from falling on the lamp and also works as filler between the curing system and the lamp. The replacement lamp is extensively used in the printing industry to cure inks and coatings and the lamp resists smudges and is environmental friendly as there is no process of solvent evaporation as conventional drying methods. The result is greater printing quality as well as productivity.

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

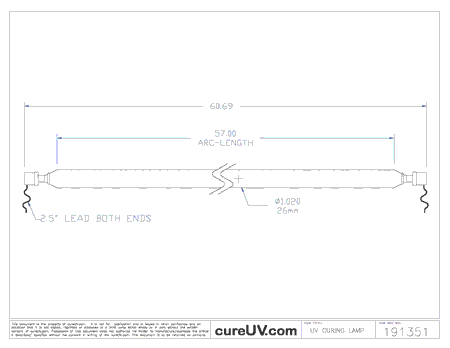

57 In. Arc UV Lamp - Grafix UV System - OEM Pt # UVD10040010H (PDF)

57In. Arc UV Lamp - Grafix UV System - OEM Pt # UVD10040010H

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
