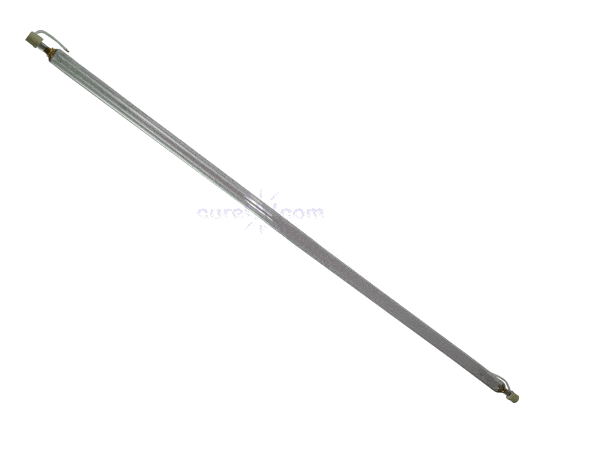

Grafix Part # 9911 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 41 Inch Arc Length - 45.13 Inch Total Length (end to end)

The Grafix Part # 9911 UV Curing Lamp Bulb is filled with mercury and has an overall length of 45.13 inches. The lamp bulb has an arc length of 41 inches and output power of 400 WPI. The lamp bulb is completely compatible to the Grafix UV systems and exceeds OEM standards of curing performance. The lamp bulb is compatible to the following models and part numbers:

• Mitsubishi
• Man Rolland
• Heidelberg
• Graphix System
• Graphics System
• Grafix System
• Innerdeck
• Offset
• 9911
• 2130110
• A9911NAS
• Grafix 9911

The replacement bulb works to cure and dry coatings in signs and graphics. The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

• Output Power: 400 WPI
• Fill: Mercury
• Quartz: Standard
• Arc Length: 41 Inches
• Overall Length: 45.13 Inches

UV Spectral Output of a Mercury UV Lamp (PDF)

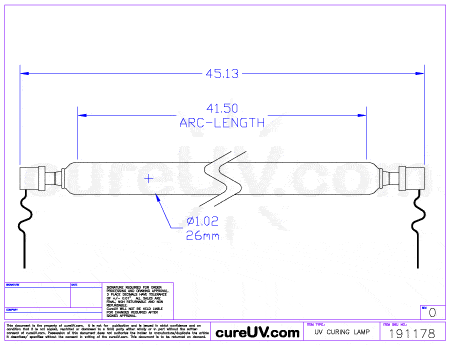

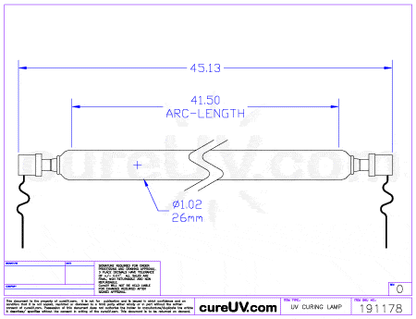

41" Arc UV Lamp - Grafix UV System 9911 (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
