UV Curing Lamp - Grafix Part # 9912 UV Curing Lamp Bulb
UV Curing Lamp - Grafix Part # 9912 UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # 9912 UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # 9912 UV Curing Lamp Bulb

Grafix Part # 9912 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$345.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 41 Inch Arc Length - 45 Inch Total Length (end to end)

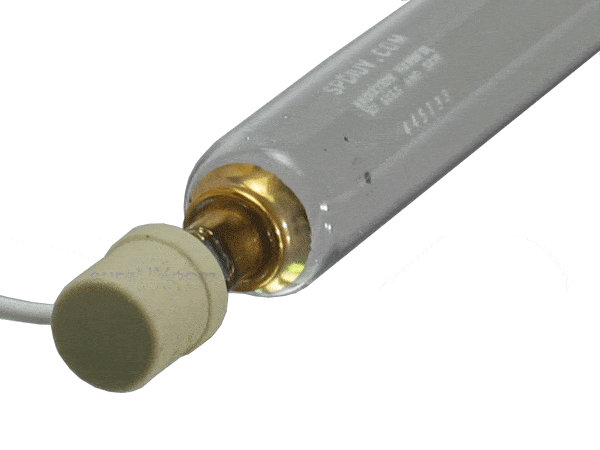

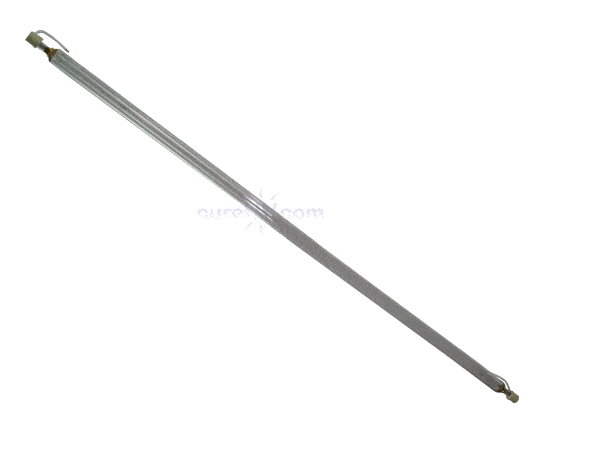

The Grafix Part # 9912 UV Curing Lamp Bulb is a 41inch replacement lamp bulb that has output of 500 WPI and the lamp exceeds OEM standards of UV curing bulb performance. The lamp bulb is compatible to the Grafix UV systems and is compatible to the following machine models and part numbers:

  • Grafix 9912
  • Mitsubishi
  • Man Rolland
  • Heidelberg
  • Graphics System
  • Grafix System
  • Innerdeck
  • Offset
  • 9912
  • 8041A14C

The UV lamps in printers are connected to the photo initiators and the ink raw materials. A strong UV light is a must for printing as weak UV light fails to cure properly and the ink feels sticky. The UV replacement lamp exceeds OEM standards and is subjected to strict quality control measures and gives you a printing experience you desire. There are studies which show that as the bulb hour increases the lamp produces lesser UV light and more heat. Excess heat causes the print media to bulge and it can also damage the shutters and the reflectors in the lamp housing, leading to enormous repairing costs. Therefore, we suggest that you use a good quality UV lamp like the one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard

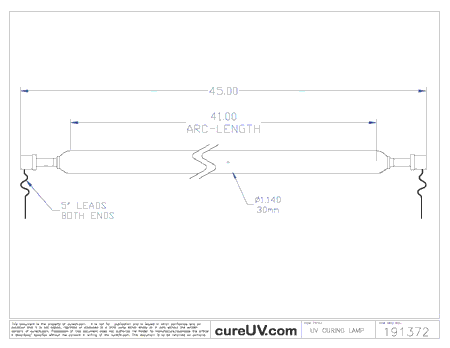

  • Arc Length: 41 Inches
  • Overall Length: 45.00 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

41In. Arc UV Lamp - Grafix UV System 9912 (PDF)

41In. Arc UV Lamp - Grafix UV System 9912

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
