UV Curing Lamp - Grafix Part # 9249 UV Curing Lamp Bulb
UV Curing Lamp - Grafix Part # 9249 UV Curing Lamp Bulb UV Curing Lamp - Grafix Part # 9249 UV Curing Lamp Bulb

Grafix Part # 9249 UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 80 Inch Arc Length

The Grafix Part # 9249 UV Curing Lamp Bulb has an arc length of 80 inches and is a compatible to the Grafix UV systems. The lamp bulb has wattage of 400 WPI and exceeds OEM standards of curing bulb performance. The lamp bulb is compatible to the following part numbers:

  • 9249
  • A5988

There is an increase in the demand of UV curing bulbs in the printing industry mainly to dry inks and coats. The UV curing lamp bulbs are the components necessary in the drying system. It also does not release volatile organic compounds in the air. The light bulbs generate a specific wavelength that assists in curing coating and inks. The quartz plate in lamp works as a filler between lamp and the system. This plate prevents dirt, grit and contaminants from building up on the lamp.

CureUV is your one-stop-shop for your UV replacement lamps, quartz plate, dichroic reflectors, quartz hot mirrors and more that is necessary for your inkjet printers. These systems are important for the digital printing industry in areas such as graphics, signs and display graphics, apparel, textile, labeling, folding carton, screen printing and more.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 79.92 Inches
  • Overall Length: 83.5 Inches
  • Watts Per Inch: 400 WPI

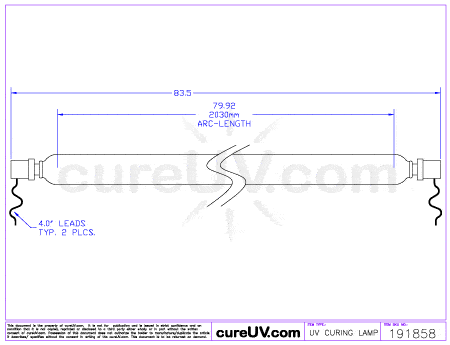

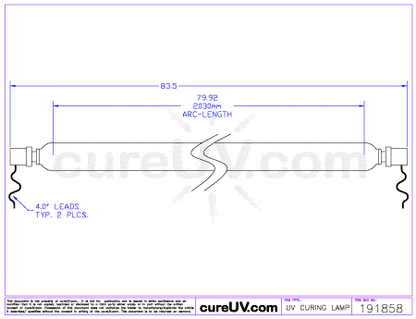

Grafix UV Lamp - OEM Part Number 9249 drawing

Grafix 80 inch UV lamp (400 WPI) - OEM part number 9249 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
