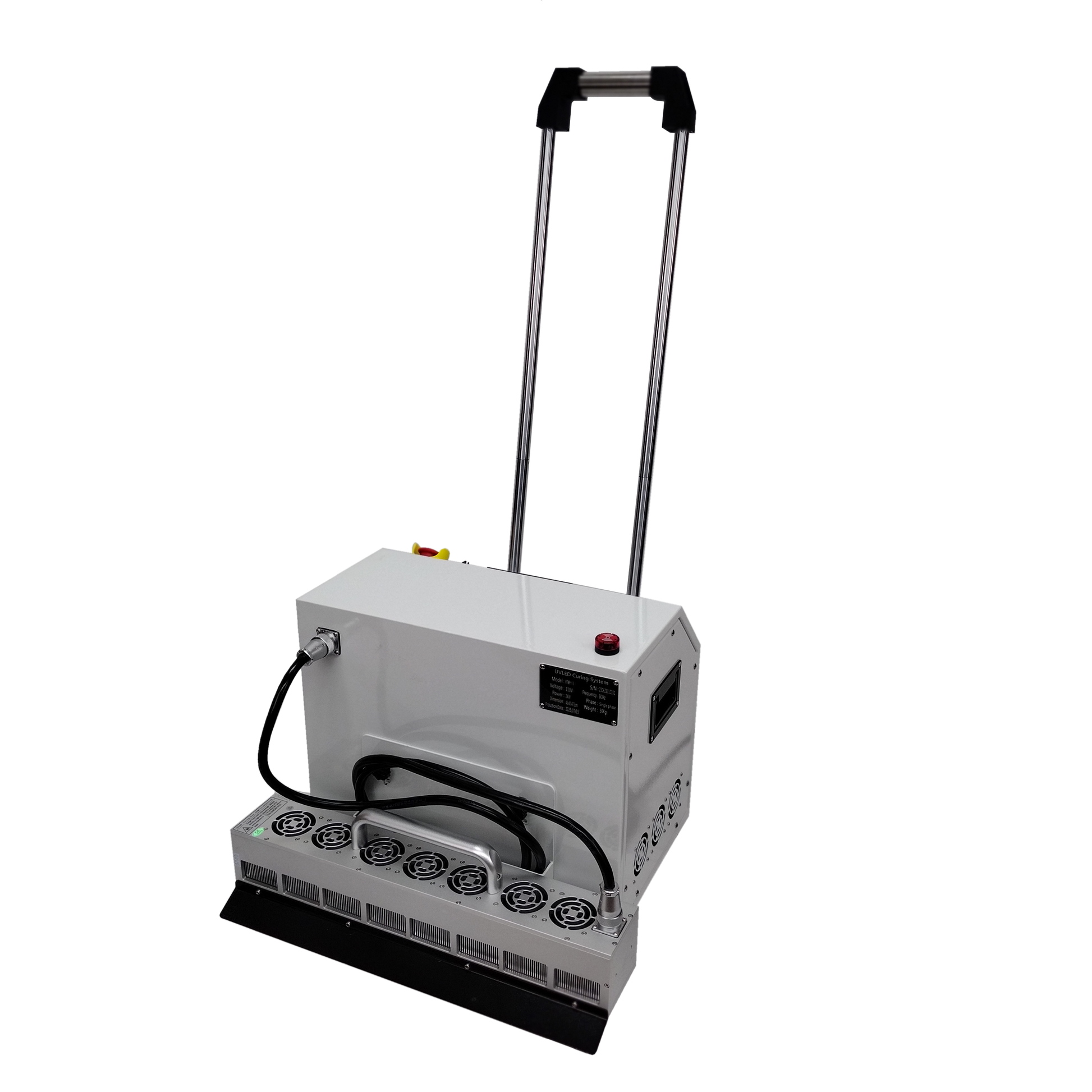

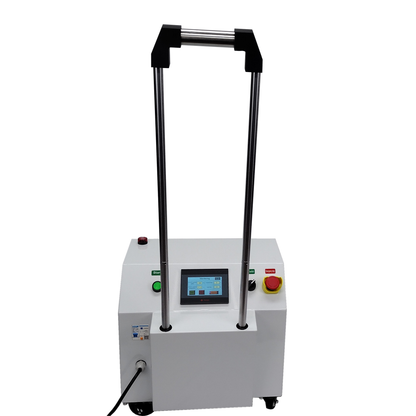

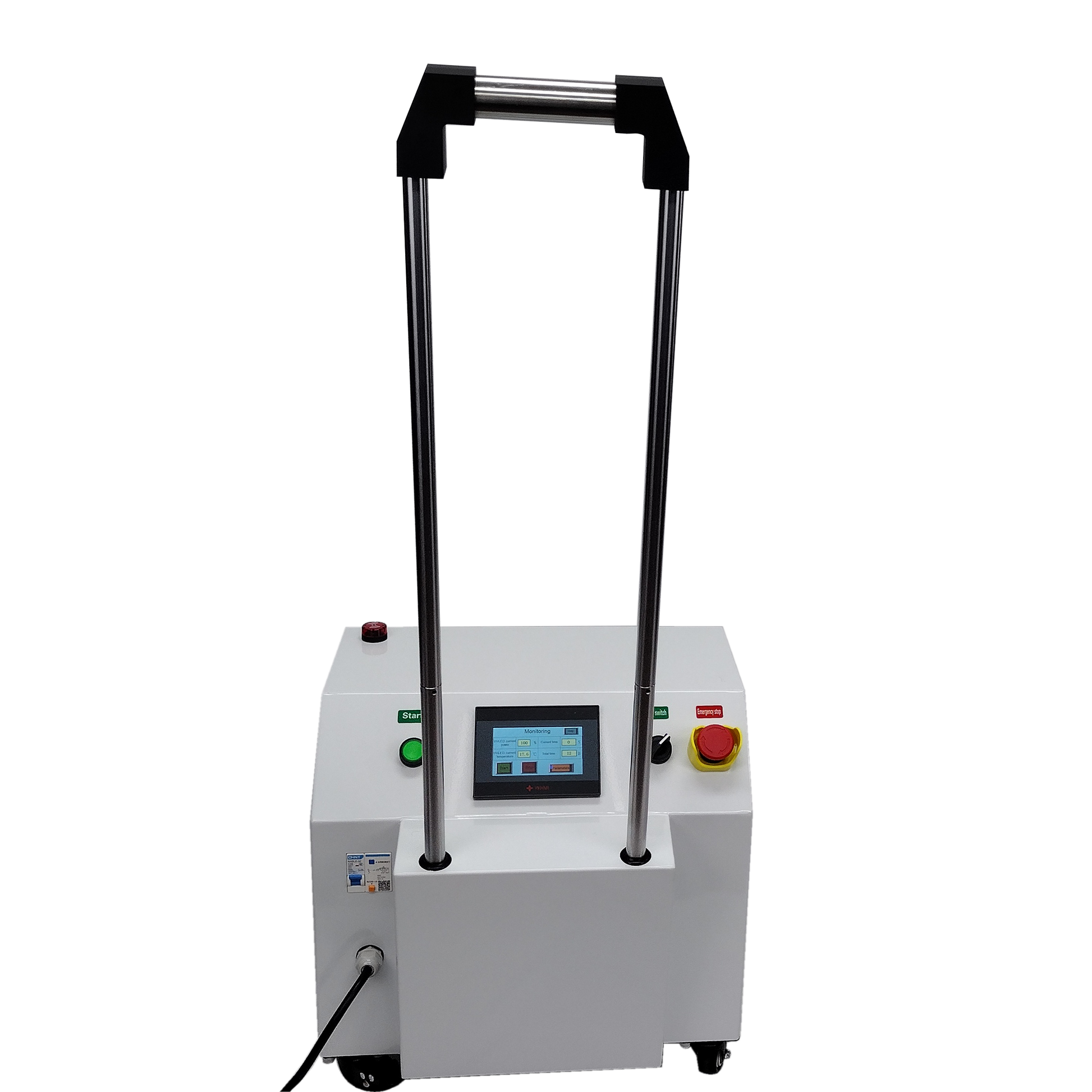

The Hand push 520x15mm UV Curing LED System is a manually pushed curing machine designed for curing materials near floor level with a UV LED Array available in 365nm, 385nm, 395nm & 405nm.

Features:

  • Practical design for floor-level work, easy to push
  • The integrated air cooling system ensures your conveyor works as efficiently as possible, protecting the LED system and extending its useful life
  • UV LED cold light source ensures your material's composition won’t be harmed during the curing process
  • Electricity saving & simple operation

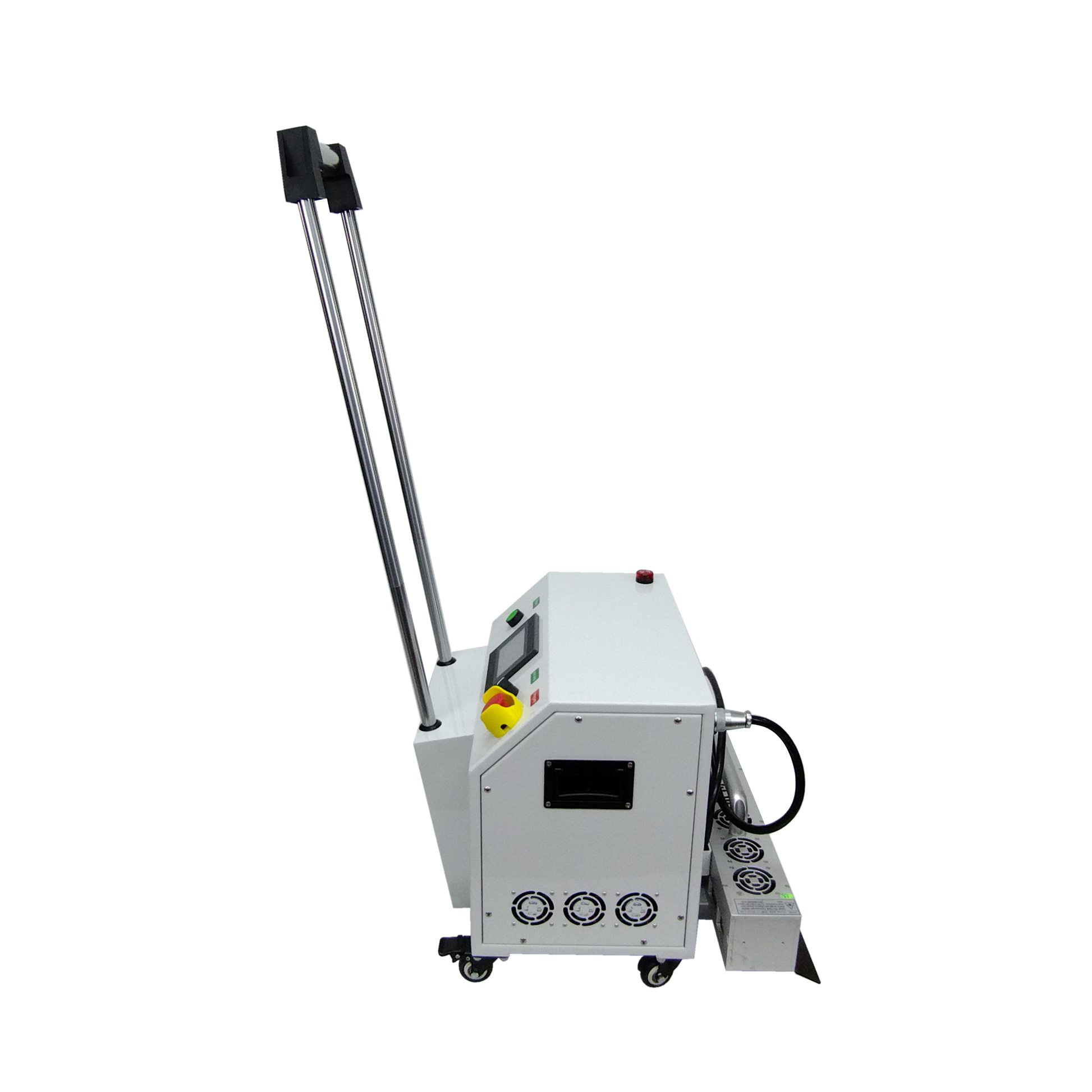

  • Integrated wheels make it easy to transport
  • Green friendly produces no ozone

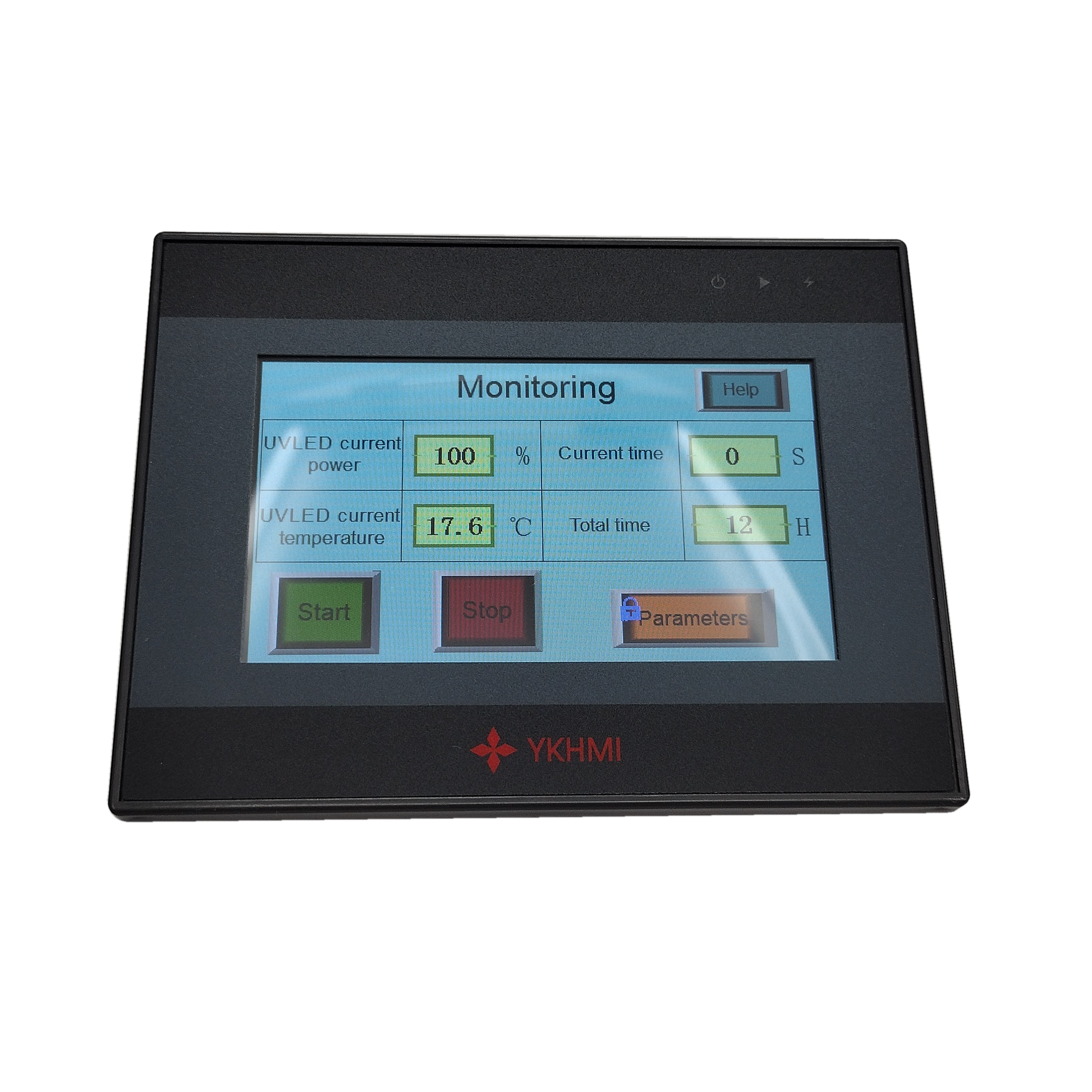

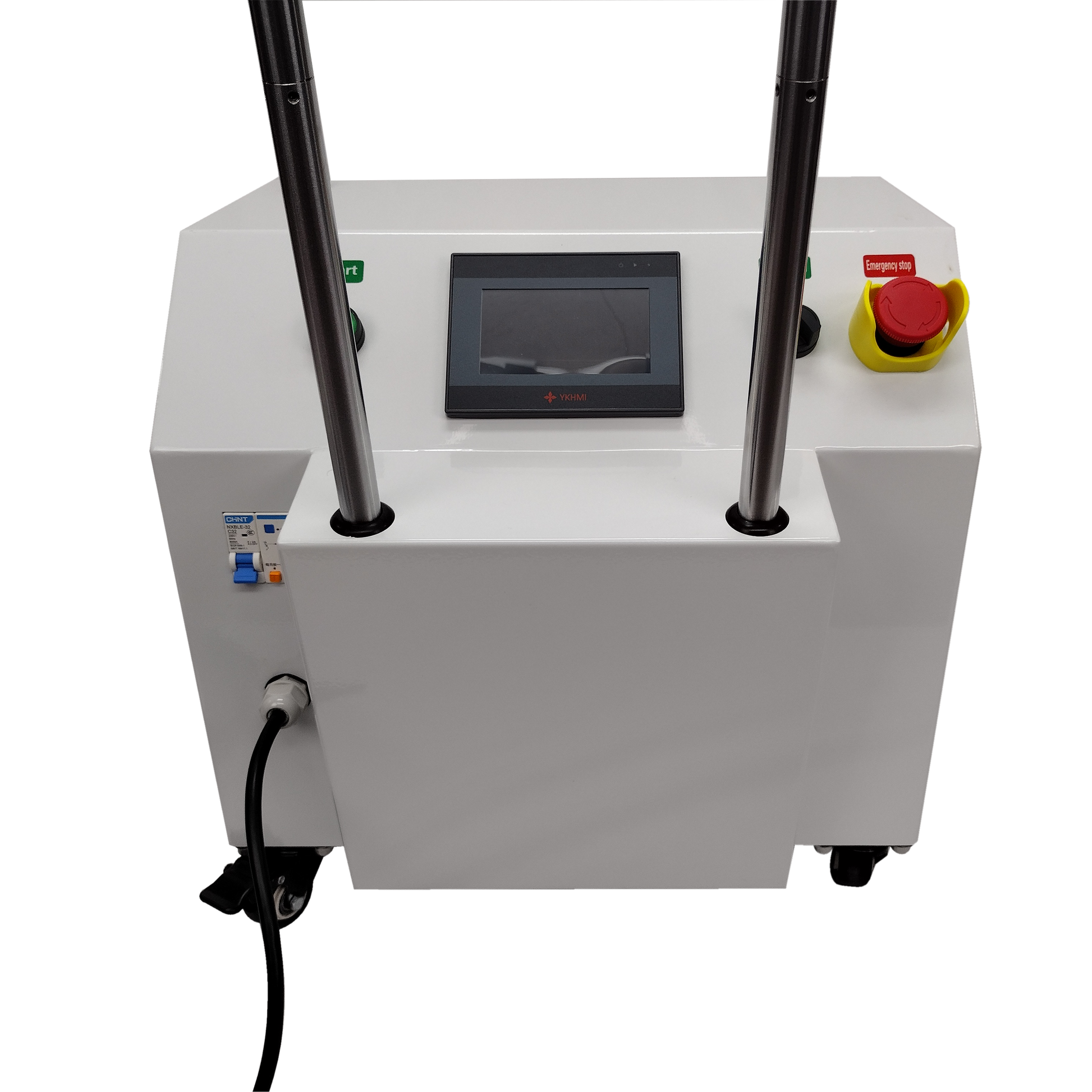

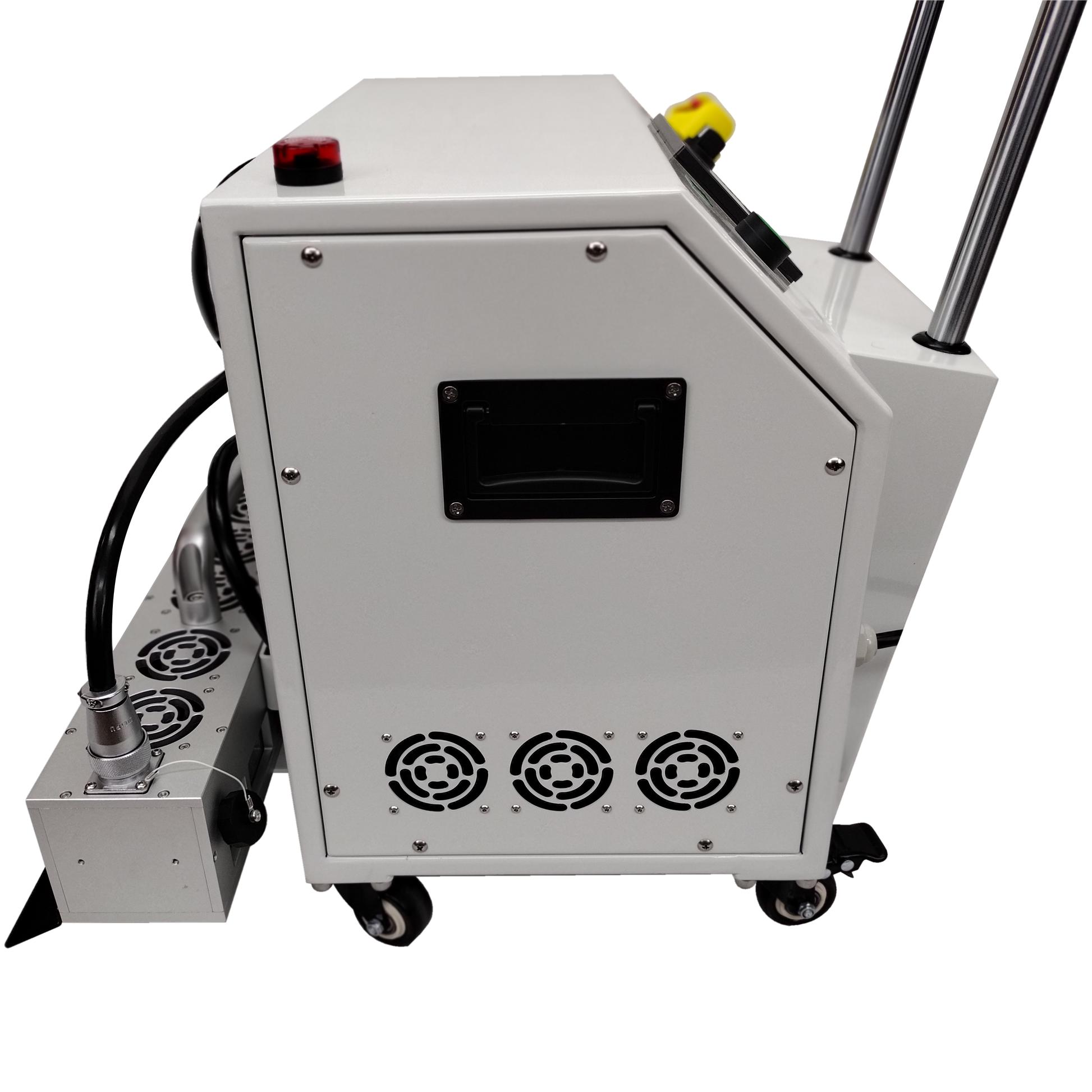

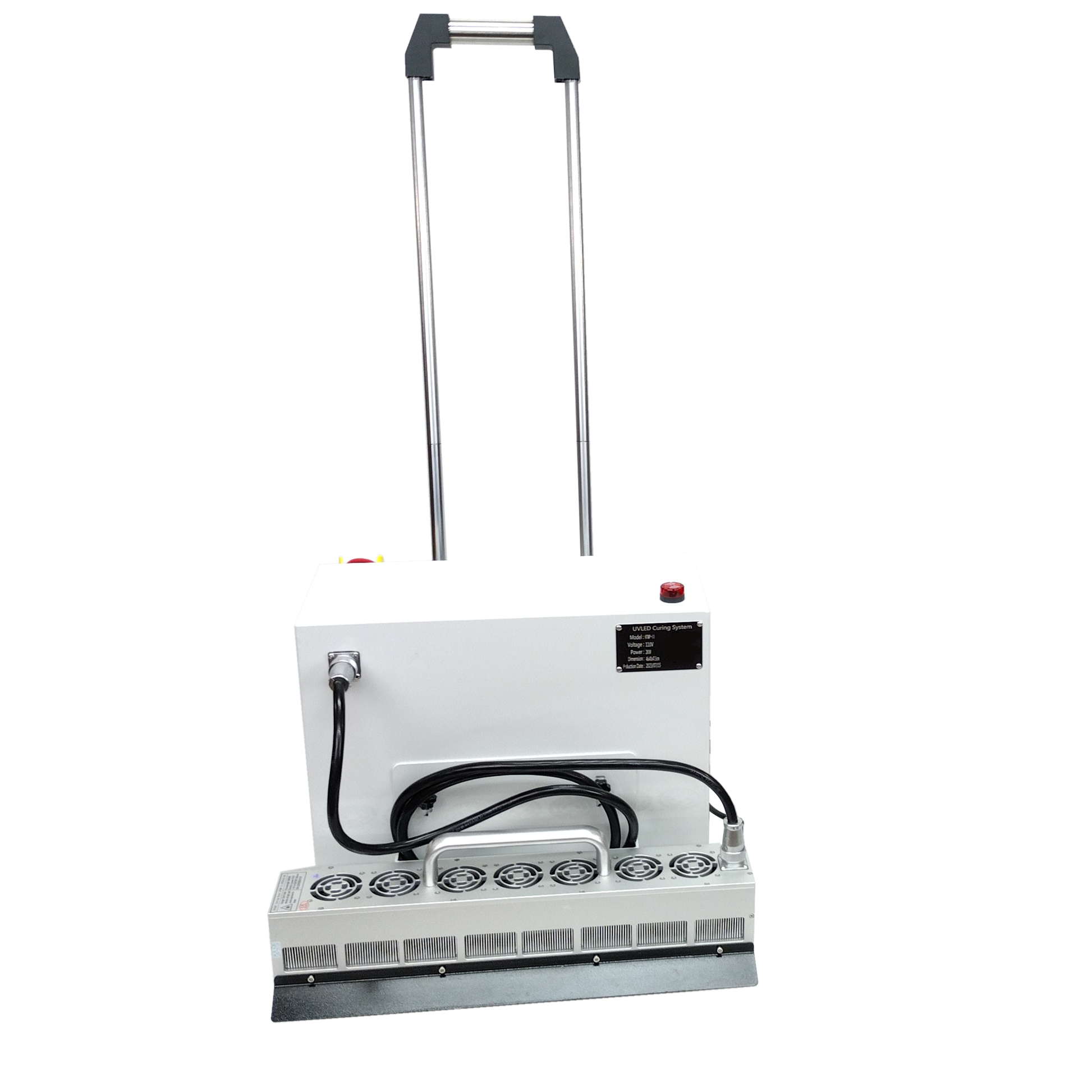

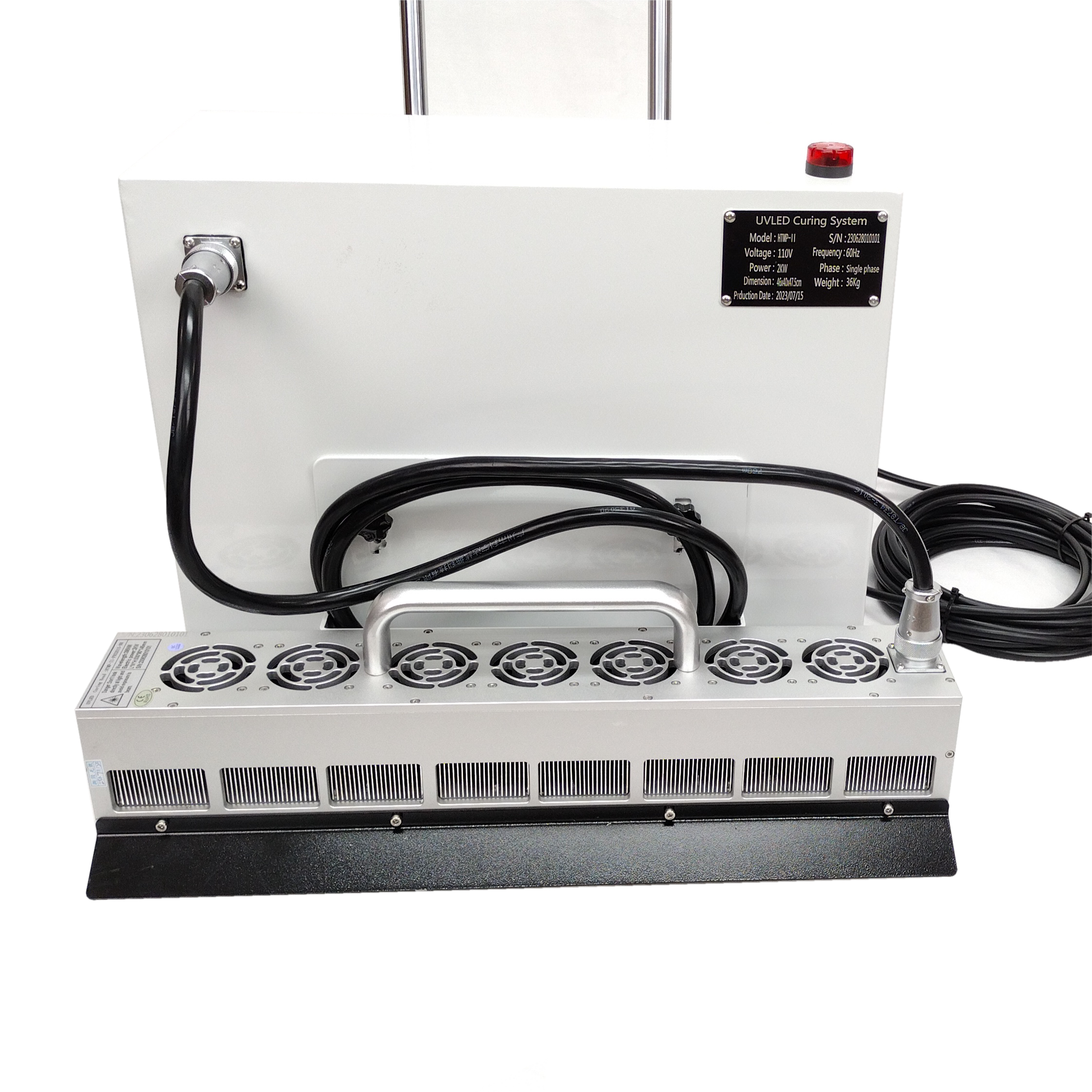

Unique in the market this portable curing system designed for working on the floor surface consists of a controller and a portable high-intensity UV LED Irradiation head. Its forced air cooling dissipates heat, making your system last longer giving it a more cost-effective and useful life. The effective curing area of this system is 520x15mm.

The array of wavelengths offered to ensure you find the ideal device for the UV Material at hand, this system takes no time to start up and is ensured to cure your products without heating up, protecting the composition of the materials at hand to get better results more efficiently.

Technical Specifications:

Available Wavelengths: 365nm, 385nm, 395nm, 405nm

365nm*:

  • Electric power: 1536W
  • Optic power: 4900mW/cm²
  • Curing area: 520x15mm
  • Cooling method: air cooling
  • Dimension: L515mm*W300mm*H450mm

395nm*:

  • Electric power: 1536W
  • Optic power: 9800mW/cm²
  • Curing area: 520x15mm
  • Cooling method: air cooling
  • Dimension: L515mm*W300mm*H450mm

    *Technical Specifications available at the moment apply to the specified wavelengths.

      We can customize these systems to fit your needs exactly. Whether you need more power, a wider conveyor, or varying speeds, we would love to help you with your UV curing. Please reach out to us at sales@cureuv.com or between 8:00 a.m. and 4:30 p.m. EST at 1(800) 977-7292.
