UV Curing Lamp - Hanovia Part # 6812C431 UV Curing Lamp Bulb
UV Curing Lamp - Hanovia Part # 6812C431 UV Curing Lamp Bulb UV Curing Lamp - Hanovia Part # 6812C431 UV Curing Lamp Bulb

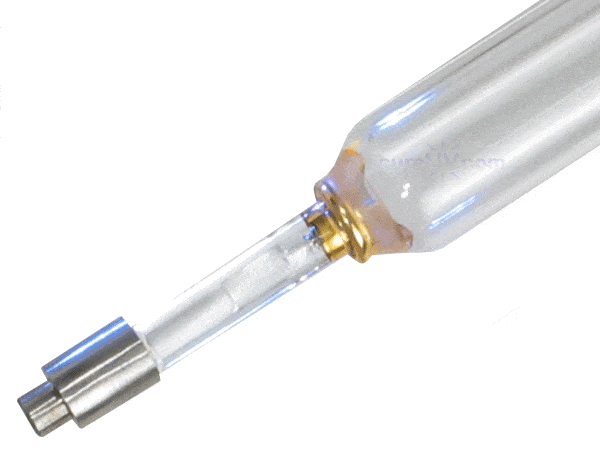

Hanovia Part # 6812C431 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$203.99 $227.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 12 Inch Arc Length

The Hanovia Part # 6812C431 UV Curing Lamp Bulb has an arc length of 12 inches and completely compatible to the Hanovia UV systems. The 300 WPI lamp bulb has a tube diameter of 25mm and exceeds OEM standards of UV curing bulb performance. The lamp bulb is completely compatible to the following part number:

  • 6812C431

The UV printer bulb is manufactured in the USA and has a predictable lifespan. CureUV ensures that you can find UV lamps for printers in different arc length and spectral fills. In heat curing there is a release of volatile organic compounds that is absent in curing using UV rays. This makes UV curing an eco-friendly option. The curing lamp consists of a quartz plate and keeps the lamp away from debris. It works as a filter between the curing system and the lamp. Light curing enables the ink to harden and dry instantly.

Technical Specifications:

  • Quartz: Standard
  • Arc Length: 9.5 Inches
  • Overall Length: 15.50 Inches
  • Tube Diameter: 25mm
  • Watts Per Inch: 300 WPI

Hanovia UV Lamp - OEM Part Number 6812c431 drawing

Hanovia 12 inch UV lamp (300 WPI) - OEM part number 6812C431 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
