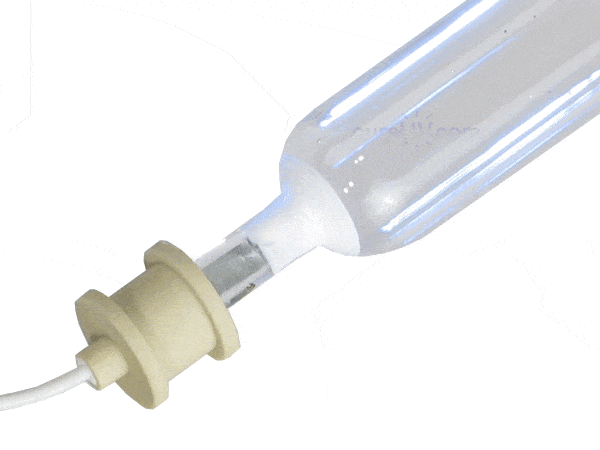

Hanovia Part # 6818A442 UV Curing Lamp Bulb

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 18 Inch Arc Length

The Hanovia Part # 6818A442 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that exceeds OEM standards of UV curing bulb performance. The lamp bulb has an arc length of 18 inches and an overall length of 22.63 inches. The 400 WPI lamp bulb is compatible to the Hanovia UV systems and to the following part number:

• 6818A442

The replacement bulb exceeds OEM standards of bulb performance. It involves a process where high intensity UV rays dry or cure inks and coatings in printers. The method of UV curing also uses light instead of heat, which enables the ink to dry and harden instantly. The UV curing method is fast gaining popularity as against alternative traditional solvent-based products. With solvent-based products the risk of environmental pollution is greater as the solvent evaporates. This results in greater printing quality, better productivity and lower production costs.

Technical Specifications:

• Fill: Mercury
• Quartz: Standard
• Arc Length: 18.00 inches
• Overall Length: 22.63 inches
• Tube Diameter: 25.5 mm
• Watts Per Inch: 400 WPI

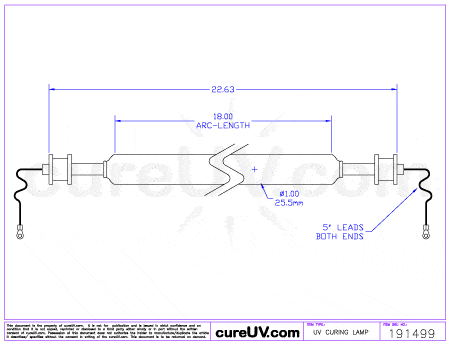

Hanovia 18 inch UV lamp (400 WPI) - OEM part number 6818A442 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
