Hanovia Part # 6825C431 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$277.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 26 Inch Arc Length

The Hanovia Part # 6825C431 UV Curing Lamp Bulb is a 100% compatible replacement lamp bulb that has an arc length of 25.75 inches and a total length of 31.125 inches. The lamp bulb exceeds OEM standards of curing bulb performance. The lamp is completely compatible to the Hanovia UV systems and has a tube diameter of 25mm. The lamp bulb is compatible to the following part model:

  • 6825C431

We provide UV lamps for printers in different arc lengths and spectral fills at a cost-effective rate. Further, our lamps provide better UV output, are manufactured in the USA and have a predictable lifespan.

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Technical Specifications:

  • Quartz: Standard
  • Arc Length: 25.75 inches
  • Total Length: 31.125 inches
  • Tube Diameter: 25 mm
  • Wattage Per Inch: 300 WPI

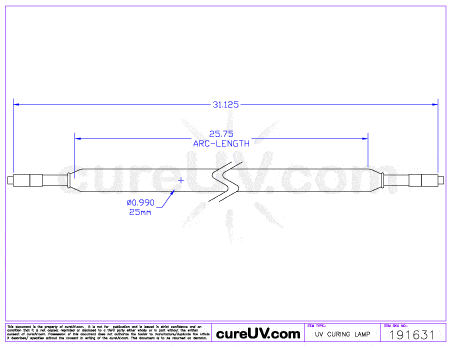

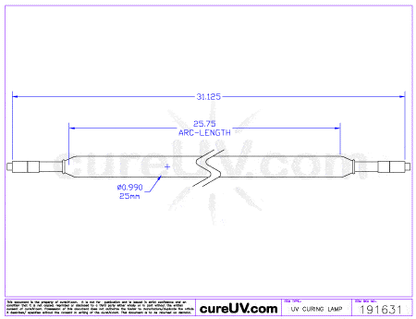

Hanovia UV Lamp - OEM Part Number 6825C431 drawing

Hanovia 26 inch UV lamp (300 WPI) - OEM part number 6825C431 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
