UV Curing Lamp - Hanovia Part # 6560A431 UV Curing Lamp Bulb
UV Curing Lamp - Hanovia Part # 6560A431 UV Curing Lamp Bulb UV Curing Lamp - Hanovia Part # 6560A431 UV Curing Lamp Bulb

Hanovia Part # 6560A431 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$295.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - 60 Inch Arc Length

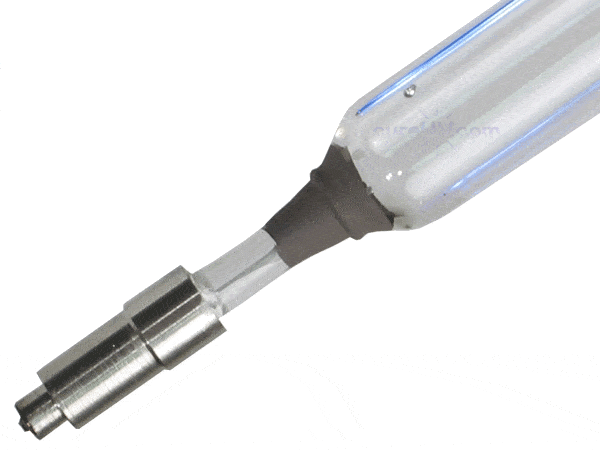

The Hanovia Part # 6560A431 UV Curing Lamp Bulb is a 100% compatible UV lamp that has an arc length of 60 inches and exceeds OEM standards of bulb curing performance. The lamp bulb is completely compatible to the Hanovia UV systems.

The UV curing lamp provides OEM quality and enhanced lamp life. We provide UV lamps for printers in different arc lengths and spectral fills at a cost-effective rate. Further, our lamps provide better UV output, are manufactured in the USA and have a predictable lifespan.

The replacement lamps work to dry coatings and inks in signs and graphics. The curing lamp consists of quartz glass plate that protects lamps from debris and works as a filler between the curing system and lamp. The plate prevents grit, dirt and contaminants from building up.

Technical Specifications:

  • Quartz: Standard
  • Arc Length: 60.00 inches
  • Total Length: 66.00 inches
  • Tube Diameter: 25 mm
  • Wattage Per Inch: 200 WPI

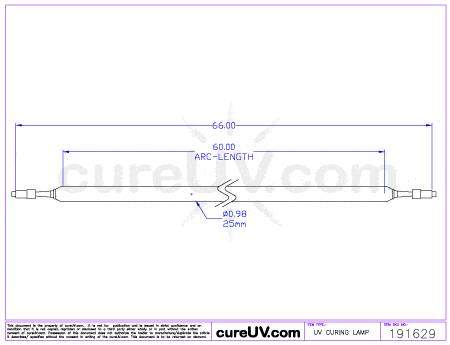

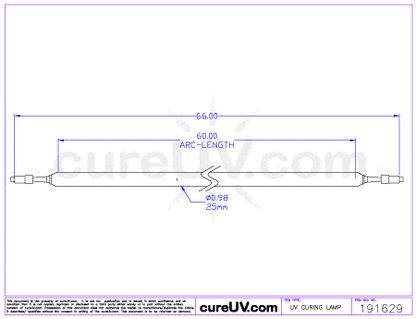

Hanovia UV Lamp - OEM Part Number 6560A431 drawing

Hanovia 60 inch UV lamp (200 WPI) - OEM part number 6560A431 - Drawing (PDF)

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
