UV Curing Lamp - Amba Part # AM6156X UV Curing Lamp Bulb
UV Curing Lamp - Amba Part # AM6156X UV Curing Lamp Bulb UV Curing Lamp - Amba Part # AM6156X UV Curing Lamp Bulb

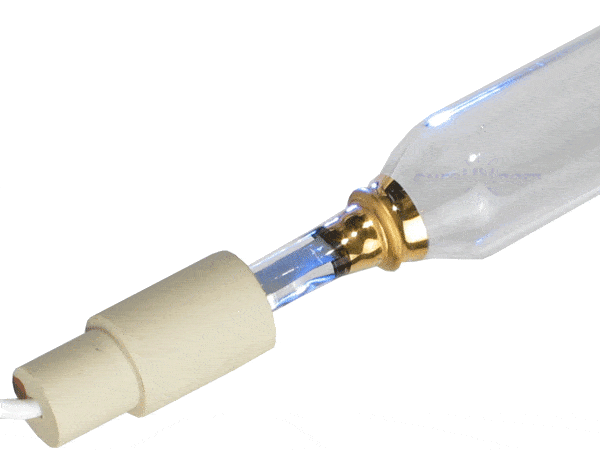

Amba Part # AM6156X UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$224.99

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 9 Inch Arc Length - 14.38 Inch Total Length (end to end)

The Amba Part # AM6156X UV Curing Lamp Bulb has an arc length of 9 inches and a total length of 14.38 inches. The 300 WPI lamp bulb is filled with mercury and has an overall length of 14.38 inches. The lamp bulb exceeds OEM standards of UV curing bulb performance and is completely compatible to the Amba UV systems with the following part numbers:

  • AM6156X

The UV printer helps in drying ink for substrates and flexible applications in the graphics industry. Our replacement lamps are manufactured using the highest quality. This printer lamp bulb from CureUV.com is eco-friendly, economical and cost-effective. It provides good and worry-free printing results at all times.

Technical Specifications:

  • Output Power: 300 WPI
  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 9 Inches
  • Overall Length: 14.38 Inches

UV Spectral Output of a Mercury UV Lamp

UV Spectral Output of a Mercury UV Lamp (PDF)

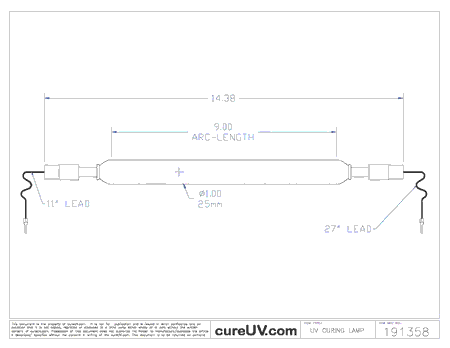

9In. Arc UV Lamp 300 WPI - Amba UV System - Pt # AM6156X (PDF)

9In. Arc UV Lamp 300 WPI - Amba UV System - Pt # AM6156X

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
