UV Curing Lamp - Heraeus Part # UVH-1322 UV Curing Lamp Bulb

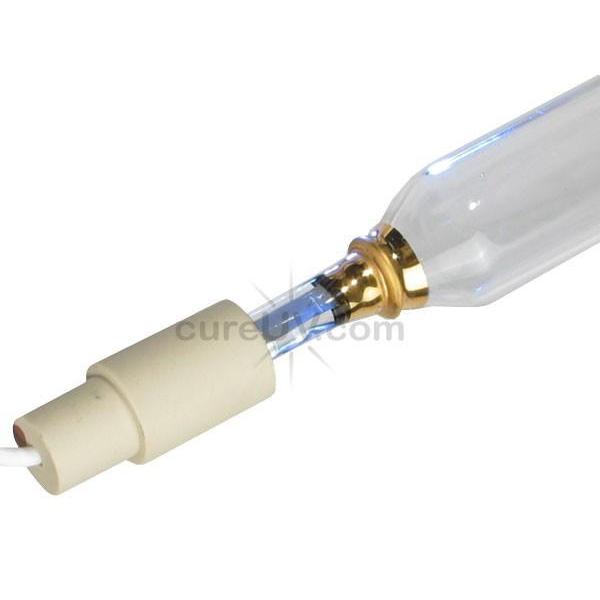

Heraeus Part # UVH-1322 UV Curing Lamp Bulb
Free Gift

SKU:

UV Bulb Price Match Guarantee
$155.00

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 5 Inch Arc Length - 9.05 Inch Total Length (end to end)

The Heraeus Part # UVH-1322 UV Curing Lamp Bulb is a mercury-filled UV replacement lamps from CureUV is subject to strict quality control measures to give you a better printing experience that you need. The lamp has a total length of 9.05 inches and an arc length of 5 inches.

It is recommended that you replace the UV curing lamp every year. Studies have shown that as the bulb hour rises, the lamps tend to produce less UV light and more heat. With greater heat there are chances of print media bulging. Excess heat may also cause damage to the shutters and reflectors in the lamp housing, which could ultimately lead to bad output and high repairing costs. Therefore it is recommended to use a good quality UV lamp like this one from CureUV.

Technical Specifications:

  • Fill: Mercury
  • Quartz: Standard
  • Arc Length: 5 inches (130mm)
  • Total Length: 9.05 inches (230mm)
  • Tube Diameter: 0.885 inches (22.5mm)
  • Watts Per Inch: 250 WPI
  • Wattage: 1250W

UV spectral output of a Mercury Lamp

UV Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Heraeus brand UV lamps. All Heraeus brand names, trademarks and logos are property of Heraeus.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
