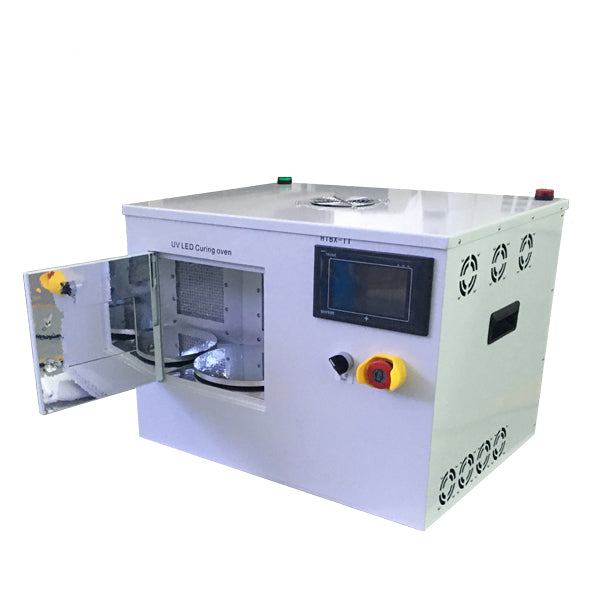

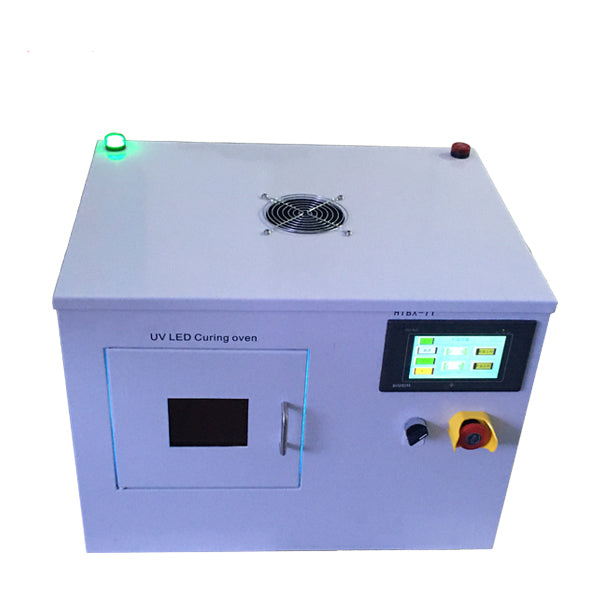

High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H)
High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H) High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H) High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H) High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H) High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H)

High-Powered LED UV Dual Irradiation System Curing Oven with Rotating Tray (220mm L x 220mm W x 190mm H)
Free Gift

SKU:

UV Bulb Price Match Guarantee
$15,999.00

Equipped with a water cooling system, ensuring optimal performance during prolonged use. It features a full 3D curing capability with two irradiating points, one on top and one on the side, providing comprehensive coverage for curing.  The system also comes with a rotating glass turntable, allowing efficient curing of all sides of the product. Ideal for heat-sensitive materials.

Features:

  • Available 365/385/395/405nm wavelength are suitable for curing most UV glues, adapting to the job at hand
  • Cold light source makes it suitable for any heat-sensitive material
  • Ready for immediate use, the maximum light intensity can be reached in an instant
  • Easy to control and power saving
  • The integrated water cooling system ensures your chamber works as efficiently as possible for prolonged periods, protecting the LED system and extending its useful life
  • Dual-sided irradiation ensure efficient curing of UV products
  • The turntable makes curing more efficient by exposing all sides of the curable product equitably to the UV Light
  • Mercury-free and ozone-free

     Applications

    • Electronics: Micro speakers, motors, cameras, lenses, displays, PCBA, etc.
    • Medical instruments
    • Research institutes
    • Laboratory

    Specifications:

    365nm:

    • Wavelength: 365nm*
    • Curing area:
      • Top: 200X200mm - Side: 150X120mm
    • Optic power: 4.15W/cm²(1cm from the top light source)
    • Dimensions: L583*W456*H423mm
    • Curing cavity size: L220*W220*H190mm
    • Recommended ambient temperature: 25℃
    • Electric power: 1956W
    • Input voltage:  120VAC 60Hz
    • Cooling method:  Water cooling
    • Service life: ≥20,000 hours

    395nm:

    • Wavelength: 395nm*
    • Curing area:
      • Top: 200X200mm - Side: 150X120mm
    • Optic power: 8.3W/cm² (1cm from top light source)
    • Dimensions: L583*W456*H423mm
    • Curing cavity size: L220*W220*H190mm
    • Recommended ambient temperature: 25℃
    • Electric power: 1956W
    • Input voltage:  120VAC 60Hz
    • Cooling method:  Water cooling
    • Service life: ≥20,000 hours

    * Currently available specifications apply only to the 365/395nm option

    Product Video:

    *The video below doesn't correspond exactly to this product, but rather to a similar one to demonstrate its functionality

    If you require higher irradiation, please let us know so that we can offer you our water cooling systems, or if you have questions about this or any of our UV Chambers & Ovens, please feel free to call us at 1(800) 977-7292 or email us at sales@cureuv.com. We would love to help you find the ideal UV solution for your application.
