UV Curing Lamp - Honle A10104NAS UV Curing Lamp Bulb

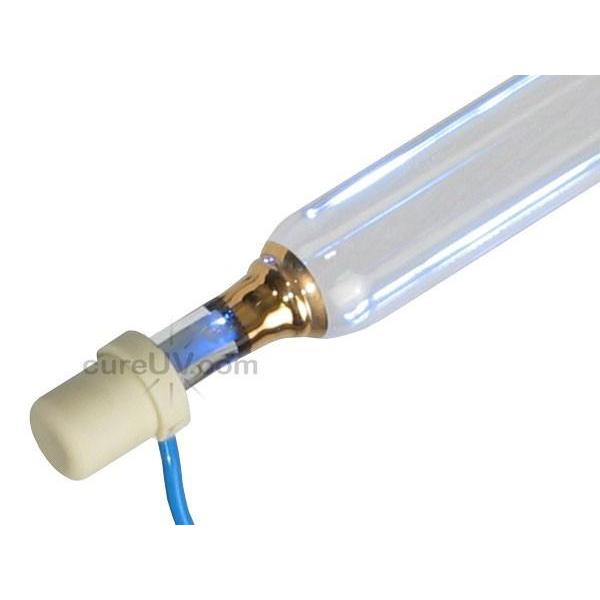

Honle A10104NAS UV Curing Lamp Bulb
Free Gift


UV Bulb Price Match Guarantee

Guaranteed 100% Compatible Replacement Ultraviolet (UV) Lamp - Mercury Wavelength - 6 Inch Arc Length - 9.44 Inch Total Length (end to end)

The Honle A10104NAS UV Curing Lamp Bulb is an Ultraviolet (UV) bulb that works in a high-quality inkjet lamp. The lamp provides high UV output and longer service life. The lamp output ensures shorter curing time and good polymerization. The high-quality lamp has a total length of 9.44" and an arc length of 6" to give you longer hours of efficient working. This lamp bulb works for the Honle UV Flatbed Printer with the following part numbers:

  • Honle 10104N
  • 10104N
  • A10104N
  • A10104NAS
  • Aladin UVH 1522/28-59N
  • UVH 1522/28-59N
  • H06K-3-F7
  • H06K3F7
  • UVL/3106

Technical Specifications:

  • Type: Mercury
  • Quartz: Standard
  • Arc Length: 6 inches (150mm)
  • Total Length: 9.44 inches (240mm)
  • Tube Diameter: 22.5mm
  • Watts Per Inch: 300 WPI
  • Wattage: 1700W

The replacement lamp work to cure or dry coatings in graphics and signs. The quartz glass plate on the curing lamp protects the lamp from debris and works as a filter between the curing system and lamp. The plate also prevents dirt, grit and contaminants from building up on the lamp.

The UV printer lamp bulb is manufactured in the USA and has a predictable lifespan. It helps in drying of coatings in signs and graphics. With CureUV you can be sure that there are UV lamps for printers in different arc lengths and spectral fills. The curing bulb does not release volatile organic compounds in air which makes them an extremely eco-friendly alternative, when compared to curing using heat. The usage of light instead of heat helps ink harden and dry instantly

UV Spectral Output of a Mercury Lamp (PDF)

*Hg - Lamp contains mercury - manage in accordance with your local disposal laws by visiting: www.lamprecycle.org

*All UV lamps listed are compatible brand UV products. We do not sell Honle brand UV lamps. All Honle brand names, trademarks and logos are property of Honle UV.

*Warning: Ultraviolet light is harmful to your eyes and skin. Use proper safety gear.

Note: CureUV.com stocks generic products that are 100% compatible with the original equipment.
